Harman kardon avr 35 owners manual
This is the 45 pages manual for harman kardon avr 35 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from harman kardon avr 35 owners manual (Ocr-read)

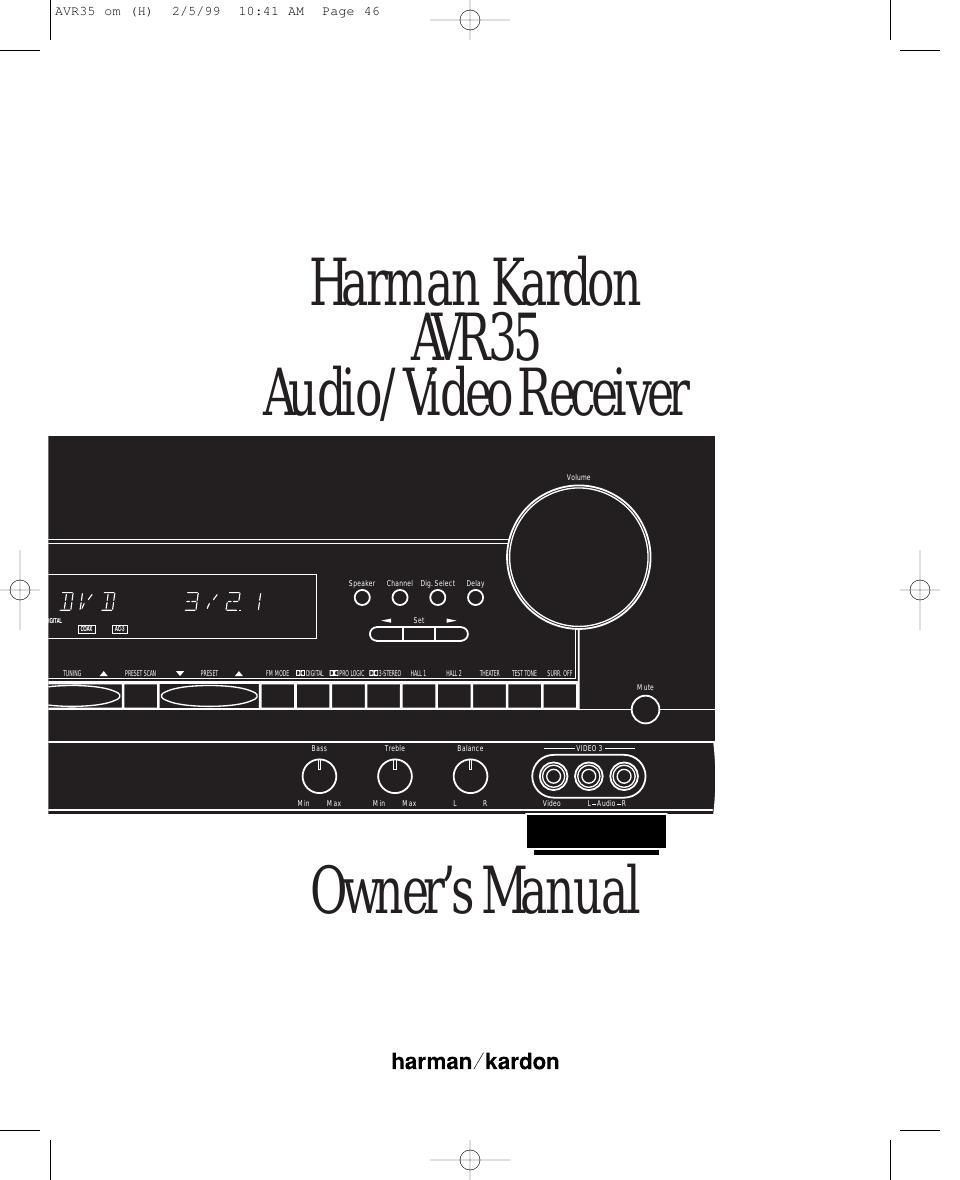

Page 1
OwnerÕs Manual AVR35 Audio/Video Receiver Table of Contents Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2Ð3 Front Panel Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Ð 6 Front Panel Information Display . . . . . . . . . . . . . . . . . . . . . . 7Ð 8 Rear Panel Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Ð10 Remote Control Functions . . . . . . . . . . . . . . . . . . . . . . . . . 11Ð13 Installation and Connections . . . . . . . . . . . . . . . . . . . . . . . 14 Ð15 System Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Ð21 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22Ð27 Source Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Surround Mode Selection . . . . . . . . . . . . . . . . . . . . 22Ð24 Surround Mode Chart . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Digital Audio Playback . . . . . . . . . . . . . . . . . . . . . . 24Ð26 Tuner Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Tape Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26Ð27 Output Level Trim Adjustment . . . . . . . . . . . . . . . . . . . 27 Memory Backup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Processor Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Programming the Remote . . . . . . . . . . . . . . . . . . . . . . . . . 28Ð39 Direct Code Entry. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Auto Search Method . . . . . . . . . . . . . . . . . . . . . . . . 28Ð29 Code Readout. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Programmed Device Functions . . . . . . . . . . . . . . . 29Ð30 Macro Programming. . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Volume Punch-Through . . . . . . . . . . . . . . . . . . . . . . . . 31 Re-Assigning Device Control Selectors . . . . . . . . . . . . . 31 Function List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32Ð33 Setup Code Tables: TV . . . . . . . . . . . . . . . . . . . . . . . 34Ð36 Setup Code Tables: VCR . . . . . . . . . . . . . . . . . . . . . 37Ð38 Setup Code Tables: CD . . . . . . . . . . . . . . . . . . . . . . . . . 39 Setup Code Tables: TAPE (LD) . . . . . . . . . . . . . . . . . . . 39 Setup Code Tables: TAPE (DVD) . . . . . . . . . . . . . . . . . . 40 Setup Code Tables: CABLE . . . . . . . . . . . . . . . . . . . . . . 40 Setup Code Tables: SAT . . . . . . . . . . . . . . . . . . . . . . . . . 40 Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 ©1998 Harman Kardon, Incorporated 250 Crossways Park Drive Woodbury, NY 11797 AVR35 om (H) 2/5/99 10:41 AM Page 47
Page 2
Congratulations!With the purchase of the Harman Kardon AVR35 you are about to begin many years of listening enjoyment. The AVR35 has been custom designed to provide all the excitement and detail of movie sound tracks and every subtle nuance of musical selec- tions. With on-board Dolby *Digital Decoding, the AVR35 delivers six discrete channels of audio that take advantage of the digital sound tracks from the latest DVD and LV releases, as well as future HDTV broadcasts. While complex digital systems are hard at work within the AVR35 to make all of this happen, hookup and operation are simple. Color-keyed connections and a comprehensive programmable remote control make the AVR35 easy to use. To obtain maximum enjoyment from your new receiver, we urge you to take a few minutes to read through this manual. This will ensure that connections to speakers, source playback units and other external devices are made properly. In addition, a few minutes spent learning the functions of the various controls will enable you to take advantage of all the power the AVR35 is able to deliver. Introduction 1 If you have any questions about this product, its installation or operation, please contact your dealer. They are your best local source of information. Description and Features The AVR35 is a full-featured A/V receiver, incorporating a wide variety of listening options. In addition to Dolby Digital decoding, Dolby Pro Logic *and Dolby 3 Stereo are available for compatibility with the tens of thousands of movies and television programs encoded with analog surround information. A choice of Hall and Theater modes is also available for use with both encoded sources and tradi- tional two-channel stereo recordings. A total of four audio/video inputs, as well as two additional audio-only inputs, and an FM stereo/FM/AM tuner are available for the utmost flexibility. Front-panel A/V inputs simplify connections to video games or camcorders.The AVR35Õs powerful amplifiers use traditional Harman Kardon High-Current Design philosophies to meet the wide dynamic range of any program selection. Harman Kardon invented the high- fidelity receiver more than forty-five years ago. With state-of-the-art features and time-honored circuit designs, the AVR35 is one of the finest receivers ever offered by Harman Kardon. nOn-Board Dolby Digital Decoding nCoax and Optical Digital Inputs nFive Analog Surround Modes nPre-Programmed Learning Remote Control nComposite Video Switching AVR35 om (H) 2/5/99 10:41 AM Page 1
