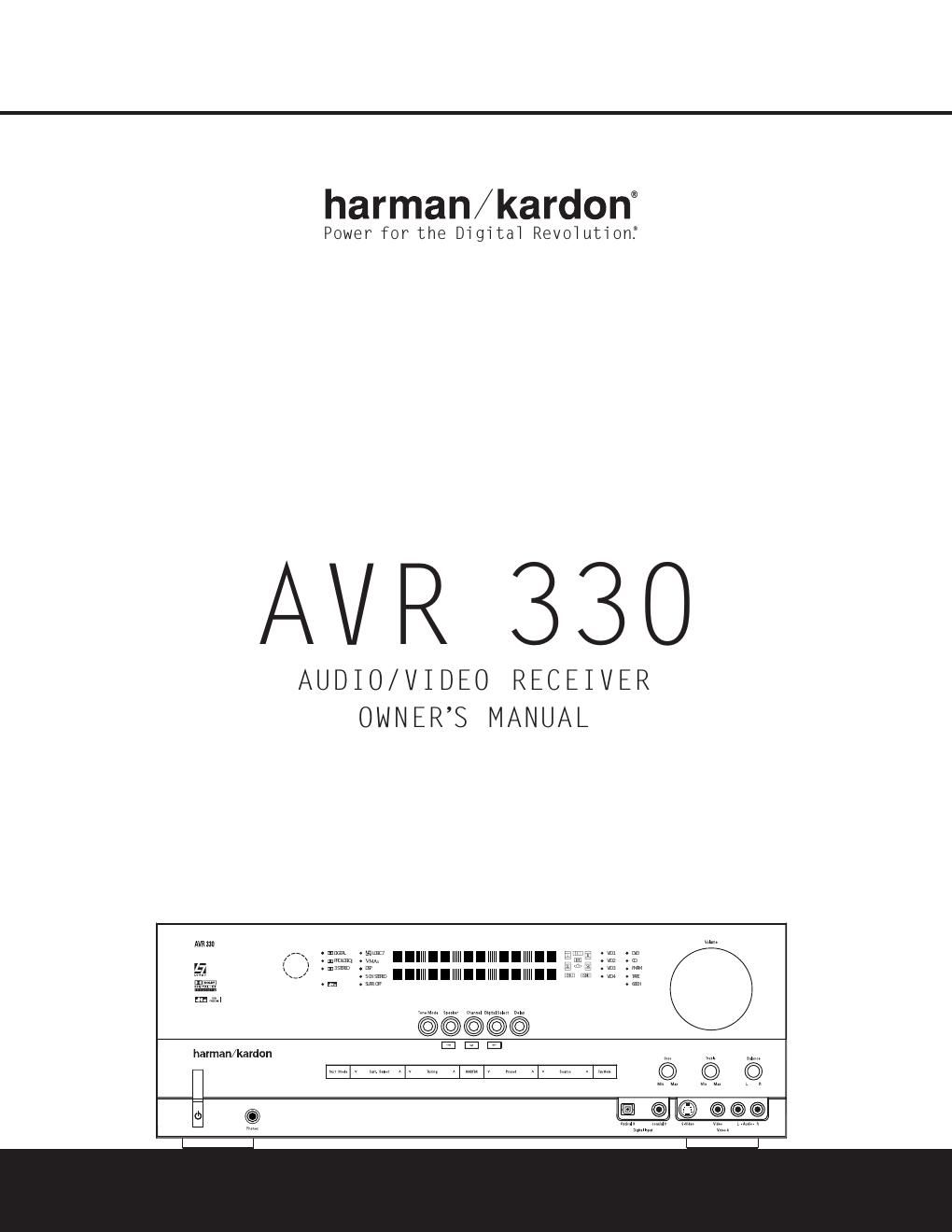

Page 1
AVR 330 AUDIO/VIDEO RECEIVER 3 Introduction 4 Safety Information 4 Unpacking 5 Front-Panel Controls 7 Rear-Panel Connections 10 Main Remote Control Functions 14 Zone II Remote Control Functions 15 Installation and Connections 17 System Configuration 17 Speaker Placement 17 System Setup 18 Input Setup 19 Surround Setup 20 Speaker Setup 22 Delay Settings 23 Output Level Adjustment 23 Using EzSet 24 Manual Output Level Adjustment 25 Operation 25 Basic Operation 25 Source Selection 25 6-Channel/8-Channel Direct Input 25 Volume Control 26 Surround Mode Selection 26 Digital Audio Playback 27 Surround Mode Chart 29 Tuner Operation 30 Tape Recording 30 Output Level Trim Adjustment 31 Advanced Features 31 Surround Amplifier Channel Assignment 31 Display Brightness 31 Turn-On Volume Level 31 Semi-OSD Settings 32 Full-OSD Time-Out Adjustment 33 Multiroom Operation 33 Multiroom Setup 33 Multiroom Operation 35 Programming the Remote 35 Programming the Remote 35 Direct Code Entry 35 Auto Search Method 35 Code Readout 35 Macro Programming 36 Programmed Device Functions 37 Volume Punch-Through 37 Channel Control Punch-Through 37 Transport Control Punch-Through 37 Reassigning Device Control Selectors 38 Resetting the Remote Memory 39 Function List 41 Setup Code Tables 52 Troubleshooting Guide 52 Processor Reset 53 Technical Specifications See trademark acknowledgements on page 53. 2TABLE OF CONTENTS Typographical Conventions In order to help you use this manual with the remote control, front-panel controls and rear-panel connections, certain conventions have been used. EXAMPLE – (bold type) indicates a specific remote control or front-panel button, or rear-panel connection jack EXAMPLE – (OCR type) indicates a message that is visible on-screen or on the front-panel information display 1 – (number in a square) indicates a specific front-panel control ¡ – (number in a circle) indicates a rear-panel connection a – (number in an oval) indicates a button or indicator on the remote å – (letter in an oval) indicates a button on the Zone II remote
Page 2
INTRODUCTION Thank you for choosing Harman Kardon ®!With the purchase of a Harman Kardon AVR 330 you are about to begin many years of listening enjoyment. Designed to provide all the excitement and detail of movie soundtracks and every nuance of musical selec- tions, the AVR 330 is truly a multichannel receiver for the new millennium. The AVR 330 has been engineered so that it is easy to take advantage of all the power of its digital tech- nology. However, to obtain the maximum enjoyment from your new receiver, we urge you to read this manual. A few minutes spent learning the functions of the various controls will enable you to take advantage of all the power the AVR 330 is able to deliver. If you have any questions about this product, its instal- lation or its operation, please contact your retailer or custom installer. They are your best local sources of information. Description and Features The AVR 330 is versatile and multifeatured, incorpo- rating a wide range of listening options. In addition to Dolby *Digital and DTS ®decoding for digital sources, a broad choice of Matrix surround-encoded or Stereo surround modes are available for use with sources such as CD, VCR, TV broadcasts and the AVR 330s own FM/AM tuner.Along with Dolby Digital EX, Dolby Pro Logic *II,DTS Neo:6 ®,Dolby 3 Stereo, and Hall and Theater modes, the AVR 330 offers Harman Internationals exclusive Logic 7 ®processing in both 5.1 and 7.1 versionsto create a wider, more enveloping field environment and more defined fly-overs and pans. Another exclusive is VMAx ®,which uses proprietary processing to create an open, spacious sound field even when only two front speakers are available. In addition to providing a wide range of listening options, the AVR 330 is easy to configure so that it provides the best results with your speakers and spe- cific listening-room environment. On-screen menus make it simple to enter settings for speaker configura- tions and bass management, and the EzSet remote measures a systems sound levels and automatically calibrates them for perfectly balanced sound field presentation. For the ultimate in flexibility, the AVR 330 features connections for five video devices, all with both com- posite and S-Video inputs. Two additional audio inputs are available, and six digital inputs make the AVR 330 capable of handling all the latest digital audio sources. For compatibility with the latest HDTV video sources and progressive scan DVD players, the AVR 330 also features two-input, wide-bandwidth, low-crosstalk component video switching.The front panel offers coax and optical digital inputs for direct connection to digital recorders. Two video recording outputs, preamp-out and a color-coded eight-channel input, with complete digital bass man- agement, make the AVR 330 virtually future-proof, with everything needed to accommodate tomorrows new formats right onboard. The AVR 330s flexibility and power extend beyond your main home theater or listening room. The AVR330 includes a sophisticated multizone control system that allows you to select one source for use in the main room and a different source for audio and video distribution to a second zone with the option to assign two of the AVR 330s output channels to the multiroom system. Complete volume control in the second zone is possible with a separate infrared con- trol link. To make it easy to operate the AVR 330 from a remote zone, a separate Zone II remote is included. The AVR 330s powerful amplifier uses traditional Harman Kardon high-current design technologies to meet the wide dynamic range of any program selection. Harman Kardon invented the high-fidelity receiver fifty years ago. With state-of-the-art circuitry and time- honored circuit designs, the AVR 330 is the perfect combina tion of the latest in digital audio technology, a quiet yet powerful analog amplifier in an elegant, easy-to-use package. For Canadian model Modèle pour les Canadien ■A wide range of digital and matrix surround modes, including Dolby Digital, Dolby Digital EX , Dolby Pro Logic II, DTS ®,DTS-ES ®Discrete and Matrix and DTS Neo:6 ® ■Seven channels of high-current amplification with two channels assignable to either surround back or multiroom applications ■Harman Kardons exclusive Logic 7 ®processing , available for the first time with both 7.1 and 5.1 processing in a variety of modes, and two modes of VMAx ® ■ ™remote automatically sets output levels for optimum performance ■High-bandwidth, HDTV-compatible component video switching ■Discrete front-panel coaxial and optical digital inputs for easy connection to portable digital devices and video game consoles ■Extensive bass management options, includ- ing three separate crossover groupings ■On-screen menu and display system ■Extensive multiroom options, including a stan- dard Zone II remote, and assignable amplifier channels TM Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Sur les modèles dont la fiche est polarisee: ATTENTION: Pour éviter les chocs électriques, introduire la lame la plus large de la fiche dans la borne correspondante de la prise et pousser jusquau fond. This class B digital apparatus complies with Canadian ICES-003. For models having a power cord with a polarized plug: CAUTION: To prevent electric shock, match wide blade of plug to wide slot, fully insert. INTRODUCTION 3 CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: To prevent electric shock, do not use this (polarized) plug with an extension cord, receptacle or other outlet unless the blades can be fully inserted to prevent blade exposure. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltage within the product s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
