Extracted text from harman kardon avr 3000 owners manual (Ocr-read)

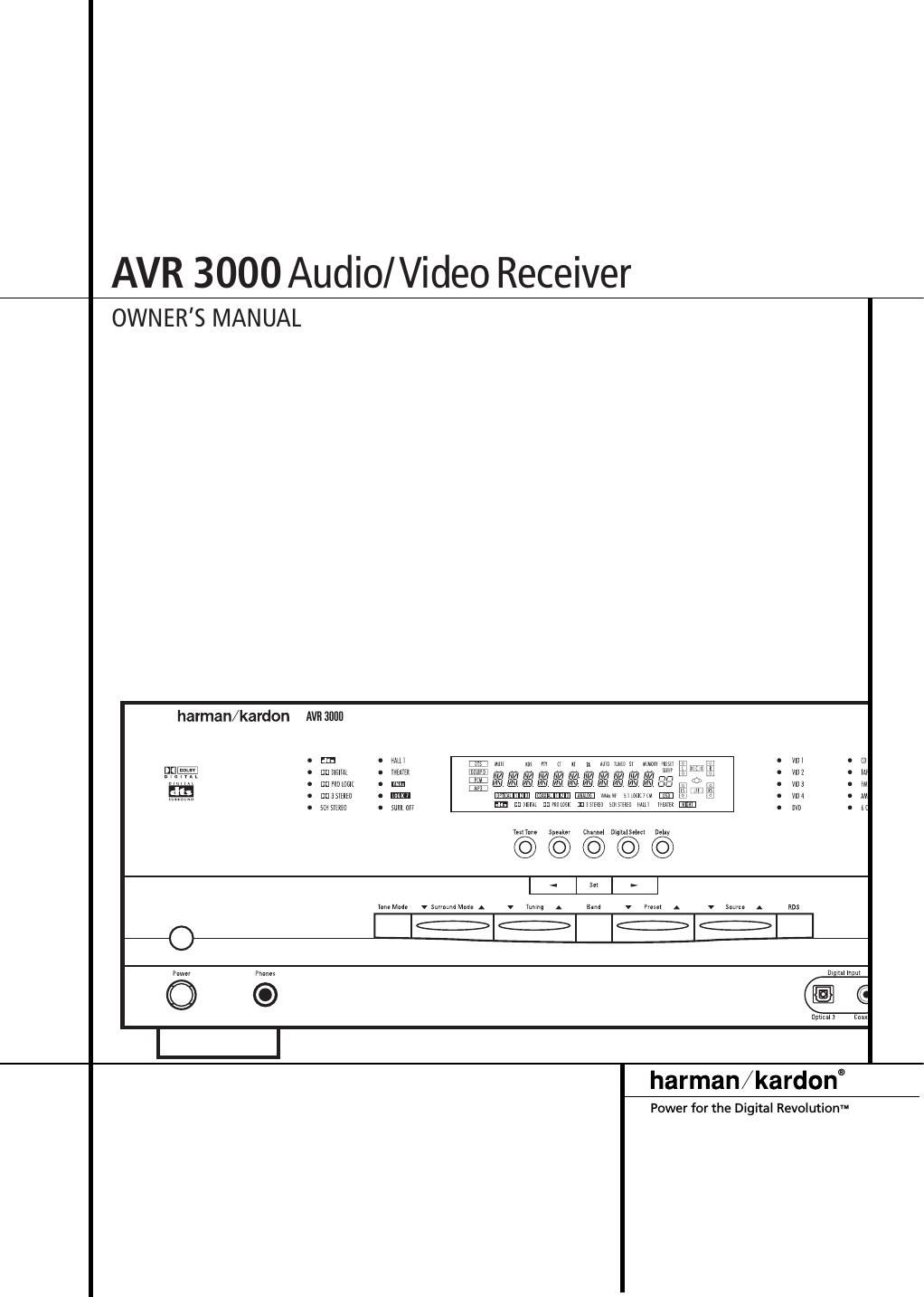

Page 1
2TABLE OF CONTENTS 3Introduction 4Safety Information 4Unpacking 5Front Panel Controls 7Front Panel Information Display 9Rear Panel Connections 11Remote Control Functions 14Installation and Connections 14Audio Equipment Connections 14Video Equipment Connections 15SCART A/V Connections 16System and Power Connections 17System Configuration 17Speaker Selection and Placement 18Settings to be Made With Each Input Used 19Input Setup 19Surround Setup 19Speaker Setup 21Adjustments for Other Inputs 21Making Settings independent of selected Input 21Delay Settings 22Night Mode Settings 22Output Level Adjustment 23Using EzSet 23Manual Output Level Adjustment 25Operation 25Basic Operation 25Source Selection 25Controls and Use of Headphones 26Surround Mode Chart 27Surround Mode Selection 27Digital Audio Playback 29Tape Recording 30Output Level Trim Adjustment 306-Channel Direct Input 30Memory Backup 31Tuner Operation 32RDS Operation 34Advanced Features 34Display Brightness 34Turn On Volume Level 35Semi OSD Settings 35Full-OSD Time Out Adjustment 36Programming the Remote 36Programming the Remote with Codes 37Macro Programming 38Programmed Device Function 38Volume Punch-Through 39Channel Control Punch-Through 39Transport Control Punch-Through 39Resetting the Remote Memory 40Function List 42Setup Code Tables 50Troubleshooting Guide 50Processor Reset 51Technical Specifications Table of Contents Typographical Conventions In order to help you use this manual with the remote control, front-panel controls and rear-panel connections, certain conventions have been used. EXAMPLE – (bold type) indicates a specific remote control or front-panel button, or rear-panel connection jack EXAMPLE– (OCR type) indicates a message that is visible on the front-panel information display 1 – (number in a square) indicates a specific front-panel control – (number in a circle) indicates a rear-panel connection 0 – (number in an oval) indicates a button or indicator on the remote A – (letter in a square) indicates an indicator in the front-panel display Declaration of Conformity We, Harman Consumer International 2, route de Tours 72500 Château-du-Loir, FRANCE declare in own responsibility, that the product described in this owners manual is in compliance with technical stan- dards: EN 55013/6.1990 EN 55020/12.1994 EN 60065:1993 EN 61000-3-2/4.1995 Carsten Olesen Harman Kardon Europe A/S 10/00
Page 2
INTRODUCTION3 Introduction Thank you for choosing Harman Kardon! With the purchase of a Harman Kardon AVR 3000 you are about to begin many years of lis- tening enjoyment. The AVR 3000 has been cus- tom designed to provide all the excitement and detail of movie sound tracks and every nuance of musical selections. With onboard Dolby* Digital and DTS †decoding, the AVR 3000 deliv- ers six discrete channels of audio that take advantage of the digital sound tracks from the latest DVD and LD releases and Digital Television broadcasts. While complex digital systems are hard at work within the AVR 3000 to make all of this happen, hookup and operation are simple. Color-keyed connections, programmable remote control, and on-screen menus make the AVR 3000 easy to use. To obtain the maximum enjoyment from your new receiver, we urge you to take the time to read through this manual. This will ensure that connections to speakers, source playback units and other external devices are made prop- erly. In addition, a few minutes spent learning the functions of the various controls will enable you to take advantage of all the power the AVR 3000 is able to deliver. If you have any questions about this product, its installation or its operation, please contact your dealer. He is your best local source of informa- tion. Description and Features The AVR 3000 is among the most versatile and multi-featured A/V receivers available, incorpo- rating a wide range of listening options. In addi- tion to Dolby Digital and DTS decoding for digi- tal sources, a broad choice of analog surround modes are available for use with sources such as CD, VCR, TV broadcasts and the AVRs own FM/AM tuner. Along with Dolby Pro Logic*, Dolby 3 Stereo, 5 Ch Stereo and custom Hall and Theater modes, only Harman Kardon receivers offer Logic 7 ®to create a wider, more enveloping field environ- ment and more defined fly-overs and pans. Finally, the AVR 3000 is among the very few A/V receivers that offer decoding of MP3 data, so that you may listen to the latest music selections directly from compatible computers or playback devices with the power and fidelity you expect from Harman Kardon. Another Harman Kardon exclusive is VMAx ™, which uses proprietary processing to create an open, spacious sound field even when only two front speakers are available. In addition to providing a wide range of listening options, the AVR 3000 is easy to configure so that it provides the best results with your speak- ers and specific listening-room environment. On-screen menus make it simple to enter set- tings for speakers, inputs and delay times, while our exclusive EzSet™ remote measures a sys- tems sound levels and automatically calibrates them for perfectly balanced soundfield presenta- tion. For the ultimate in flexibility, the AVR 3000 fea- tures connections for five video devices, all with both composite and S-Video inputs. Two addi- tional audio inputs are available, and a total of six digital inputs make the AVR 3000 capable of handling all the latest digital audio sources. Coax and optical digital outputs are available for direct connection to digital recorders. Two video recording outputs, preamp outputs for use with external power amplifiers, and a six channel input make the AVR 3000 virtually future-proof, with everything needed to accommodate tomor- rows new formats right on board.The AVR 3000s powerful amplifier uses traditional Harman Kardon high-current design technologies to meet the wide dynamic range of any program selection. Harman Kardon invented the high-fidelity receiv- er more than forty-seven years ago. With state- of-the-art circuitry and time-honored circuit designs, the AVR 3000 is one of the finest receivers ever offered by Harman Kardon in its price range. Onboard Dolby Digital and DTS Decoding Using Crystal ®Chip Technology Harman Kardons Exclusive Logic 7 and VMAx Modes MP3 Decoding for Use with compatible Computers and Digital Audio Players Remote Automatically Sets Output Levels for Optimum Performance Front-Panel Digital Inputs for Easy Connection to Portable Digital Devices and the Latest Video Game Consoles Multiple Digital Inputs and Outputs On-Screen Menu and Display System 6-Channel Direct Input and Preamp Outputs for Easy Expansion and Use with Future Audio Formats Remote with Internal Codes Capability TM
