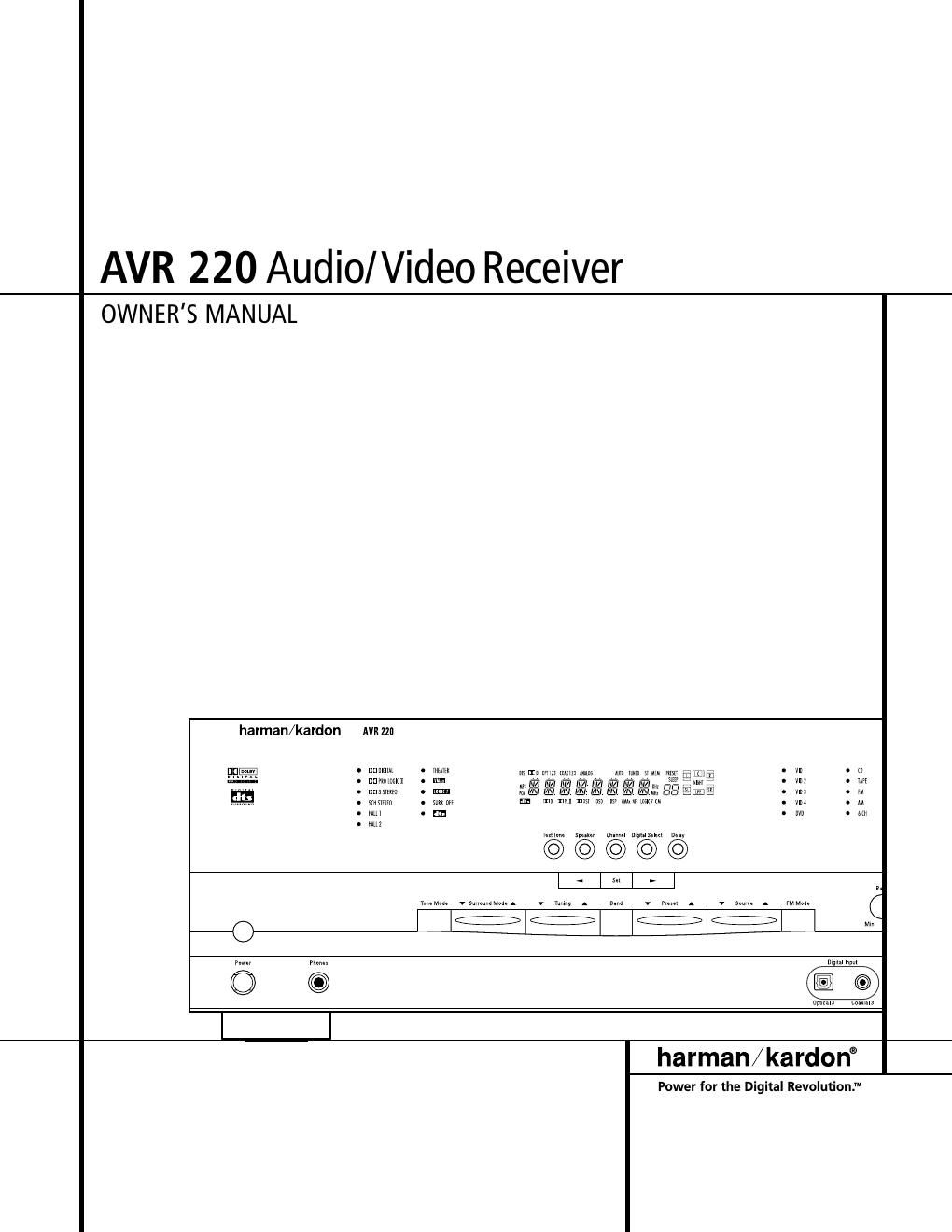

Harman kardon avr 220 owners manual
This is the 52 pages manual for harman kardon avr 220 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from harman kardon avr 220 owners manual (Ocr-read)
Page 1
2 TABLE OF CONTENTS 3 Introduction 4 Safety Information 4 Unpacking 5 Front Panel Controls 7 Front Panel Information Display 9 Rear Panel Connections 11 Remote Control Functions 14 Installation and Connections 16 System Configuration 18 Input Setup 18 Surround Setup 18 Delay Settings 19 Speaker Setup 21 Output Level Adjustment 22 Manual Output Level Adjustment 24 Operation 24 Basic Operation 24 Source Selection 25 Surround Mode Chart 26 Surround Mode Selection 26 Digital Audio Playback 26 Selecting a Digital Source 27 Night Mode 28 Tuner Operation 29 Tape Recording 29 Output Level Trim Adjustment 30 6-Channel Direct Input 31 Advanced Features 31 Display Brightness 31 Turn-On Volume Level 31 Semi-OSD Settings 32 Full-OSD Time Out Settings 33 Programming the Remote 33 Direct Code Entry 33 Auto Search Method 33 Code Readout 34 Macro Programming 34 Programmed Device Functions 35 Punch-Through Programming 35 Volume Punch-Through 35 Channel Control Punch-Through 36 Transport Control Punch-Through 36 Reassigning Device Control Selectors 36 Resetting the Remote Memory 37 Function List 39 Setup Code Tables 49 Troubleshooting Guide 49 Processor Reset 50 Technical Specifications 51 Notes AVR 220 Audio/ Video Receiver Typographical Conventions In order to help you use this manual with the remote control, front panel controls and rear panel connections, certain conventions have been used. EXAMPLE – (bold type) indicates a specific remote control or front panel button, or rear panel connection jack EXAMPLE – (OCR type) indicates a message that is visible on the front panel information display 1 – (number in a square) indicates a specific front panel control ¡ – (number in a circle) indicates a rear panel connection a – (number in an oval) indicates a button or indicator on the remote A – (letter in a square) indicates an indicator in the front panel display
Page 2
3 INTRODUCTION Introduction Thank you for choosing Harman Kardon! With the purchase of a Harman Kardon AVR 220 you are about to begin many years of listening enjoyment. The AVR 220 has been custom-designed to provide all the excitement and detail of movie soundtracks and every nuance of musical selections. With onboard Dolby* Digital and DTS ®decoding, the AVR 220 delivers six discrete channels of audio that take advantage of the digital soundtracks from the latest DVD and LD releases and Digital Television broadcasts. While complex digital systems are hard at work within the AVR 220 to make all of this happen, hookup and operation are simple. Color-keyed connections, a programmable remote control, and on-screen menus make the AVR 220 easy to use. To obtain the maximum enjoyment from your new receiver, we urge you to take a few minutes to read through this manual. This will ensure that connections to speakers, source playback units and other external devices are made properly. In addition, a few minutes spent learning the functions of the various controls will enable you to take advantage of all the power the AVR 220 is able to deliver. If you have any questions about this product, its installation or its operation, please contact your retailer or custom installer. They are your best local sources of information. Description and Features The AVR 220 is among the most versatile and multifeatured A/V receivers available, incorpo- rating a wide range of listening options. In addition to Dolby Digital and DTS decoding for digital sources, a broad choice of analog sur- round modes are available for use with sources such as CD, VCR, TV broadcasts and the AVR 220s own FM/AM tuner. Along with the latest Dolby Pro Logic ®II decoding technology, Dolby 3 Stereo and custom Hall and Theater modes, only Harman Kardon receivers offer Logic 7 ®to create a wider, more enveloping field environment and more defined fly-overs and pans. Another Harman Kardon exclusive is VMAx ®, which uses proprietary processing to create an open, spacious sound field even when only two front speakers are available. Finally, the AVR 220 is among the very few A/V receivers that offer decoding of MP3 data, so that you may listen to the latest music selec- tions directly from compatible computers or playback devices with the power and fidelity you expect from Harman Kardon.In addition to providing a wide range of listen- ing options, the AVR 220 is easy to configure so that it provides the best results with your speakers and specific listening-room environ- ment. On-screen menus make it simple to enter settings for speakers, inputs and delay times, while our exclusive EzSet ™remote measures a systems sound levels and automatically cali- brates them for perfectly balanced soundfield presentation. For the ultimate in flexibility, the AVR 220 fea- tures connections for five video devices, all with both composite and S-Video inputs, including the front panel inputs. Two additional audio inputs are available, and a total of six digital inputs make the AVR 220 capable of handling all the latest digital audio sources. Coax and optical digital outputs are also available for direct connection to digital recorders. Two video recording outputs and a six-channel input make the AVR 220 virtually future-proof, with every- thing needed to accommodate tomorrows new formats right on board.The AVR 220s powerful amplifier uses traditional Harman Kardon high- current design technologies to meet the wide dynamic range of any program selection. Harman Kardon invented the high-fidelity receiver more than forty-seven years ago. With state-of-the-art circuitry and time-honored cir- cuit designs, the AVR 220 is one of the finest receivers ever offered by Harman Kardon. Onboard Dolby Digital and DTS Decoding Using Crystal ®Chip Technology Harman Kardons Exclusive Logic 7 and VMAx Modes Dolby Laboratories Latest Pro Logic II Decoding Technology MP3 Decoding for Use With Computers and Digital Audio Players Remote Automatically Sets Output Levels for Optimum Performance Front Panel Digital Inputs for Easy Connection to Portable Digital Devices and the Latest Video Game Consoles Multiple Digital Inputs and Outputs On-Screen Menu and Display System 6-Channel Direct Input for Use With DVD-Audio Players, Other Products With Internal Surround Decoders or External Surround Decoders Color-coded input, output and speaker terminals comply with the latest CEA standards for easy installation TM CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: To prevent electric shock, do not use this (polarized) plug with an extension cord, receptacle or other outlet unless the blades can be fully inserted to prevent blade exposure. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
