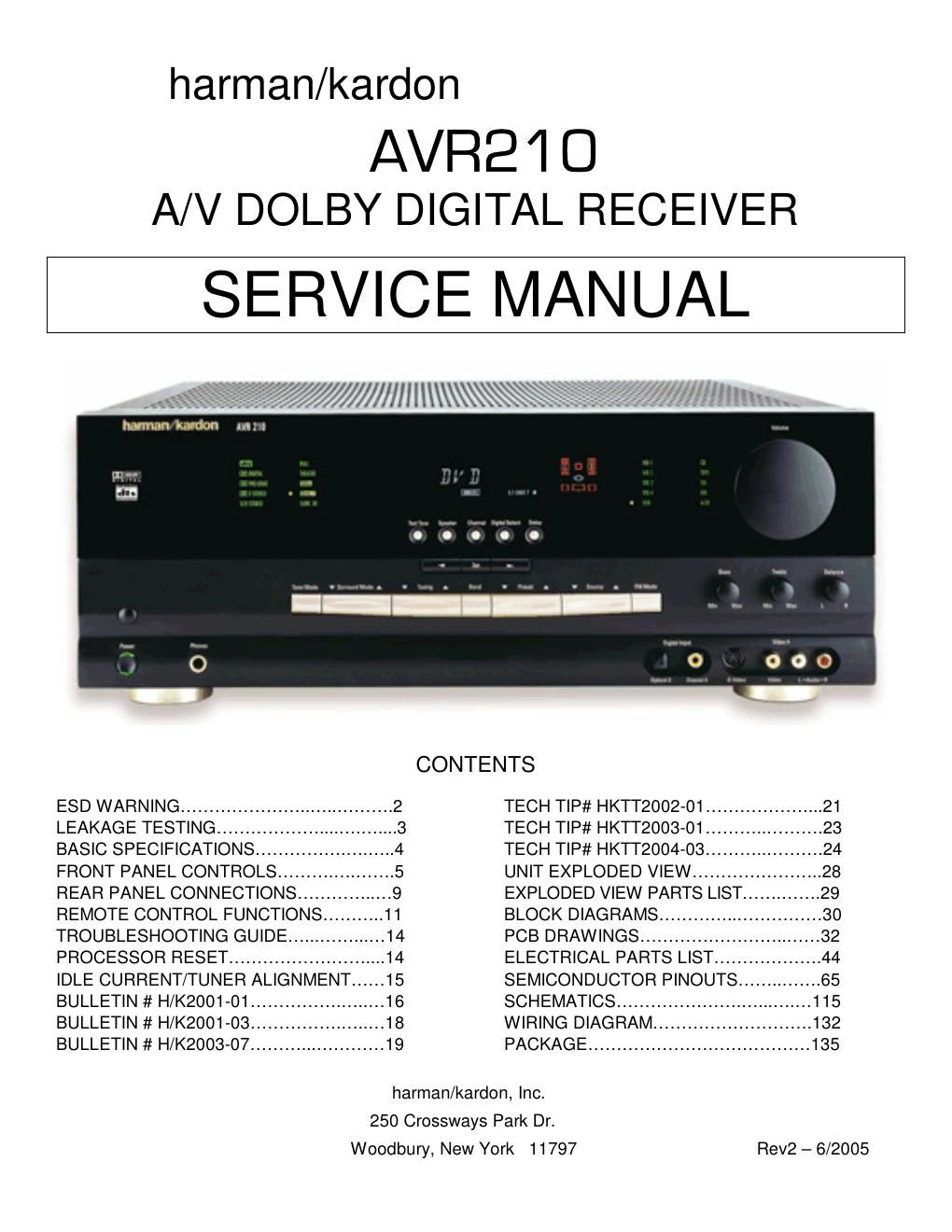

Harman kardon avr 210

Page 1

harman/kardon

IAV
A/V DOLBY DIG

PI
TAL RECEIVER

SERVICE MANUAL

. < 1." V

ESD WARNING ...................................... 2
LEAKAGE TESTING ................................. 3
BASIC SPECIFICATIONS ............. 4
FRONT PANEL CONTROLS ..................... 5
REAR PANEL CONNECTIONS ................. 9
REMOTE CONTROL FUNCTIONS ........... 11
TROUBLESHOOTING GUIDE .................. 14
PROCESSOR RESET ................... ...14
IDLE CURRENT/TUNER ALIGNMENT ...... 15
BULLETIN # H/K2001-01 ........................ 16
BULLETIN # H/K2001-03 ........................ 18
BULLETIN # H/K2003-07 ........................ 19

W/l/II I I\\\\\\\\\\\\§S

CONTENTS

TECH TIP# HKTT2002-01 ..................... 21
TECH TIP# HKTT2003-01 ..................... 23
TECH TIP# HKTT2004-03 ..................... 24
UNIT EXPLODED VIEW ....................... 28
EXPLODED VIEW PARTS LIST .............. 29

BLOCK DIAGRAMS .................
PCB DRAWINGS ..............
ELECTRICAL PARTS LIST.. ..
SEMICONDUCTOR PINOUTS ......... 65

SCHEMATICS ................................ 115
WIRING DIAGRAM ............................ 132
PACKAGE ....................................... 135

harman/kardon, Inc.
250 Crossways Park Dr.

Woodbury, New York 11797

Rev2 - 6/2005
