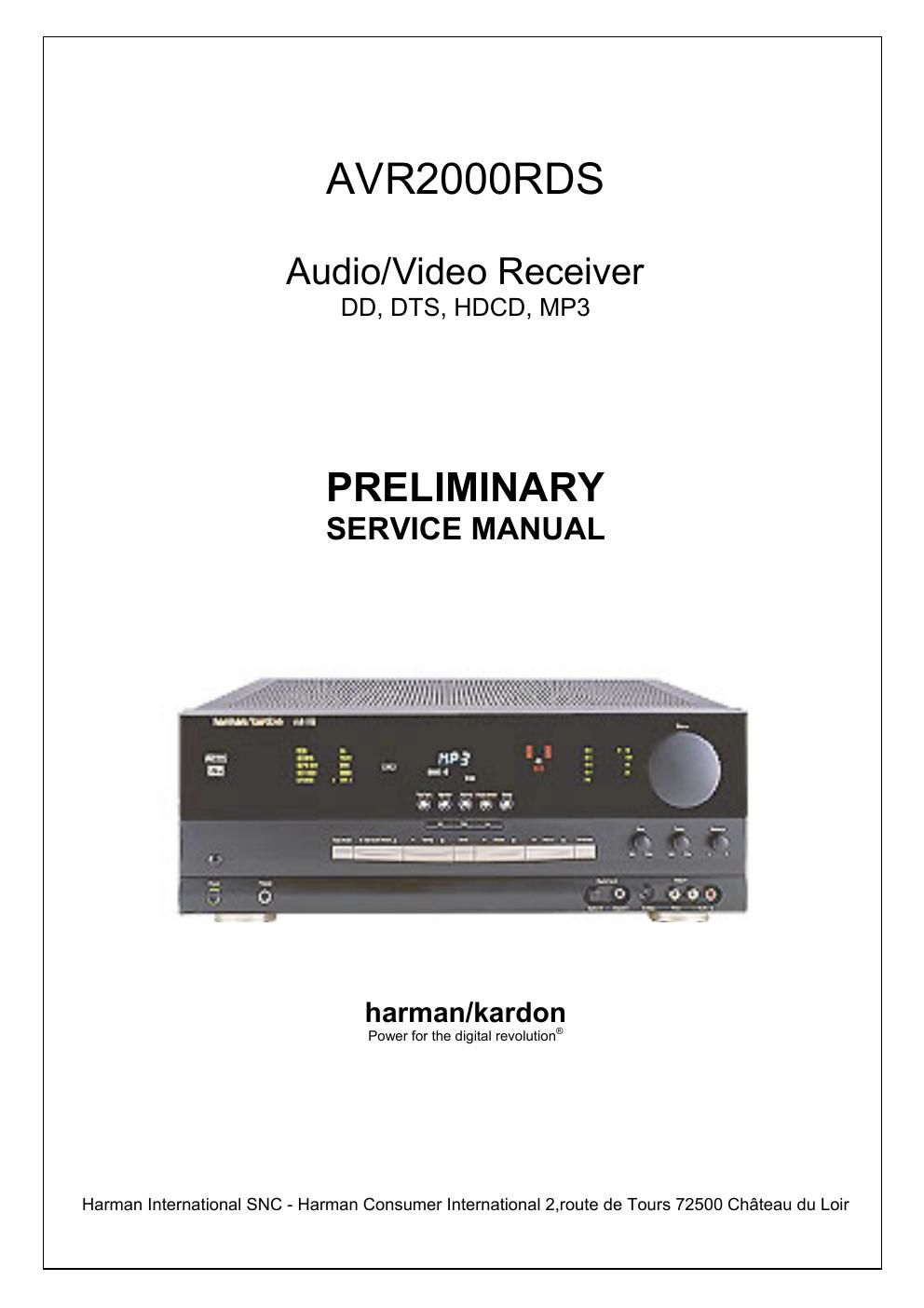

AVRZOOORDS
AudioNideo Receiver
DD, DTS, HDCD, MP3
PRELIMINARY
SERVICE MANUAL
harman/kardon
Power for the digital revolution®
Harman International SNC - Harman Consumer International 2,route de Tours 72500 Chateau du Loir
Page 2
Technical Specifications
Audio Section
Stereo Mode
Continuous Average Power (FTC)
50 Watts per channel, ZOHz-ZOkHz,
@ < 007% THD, both channels driven into 8 ohms
Five-Channel Surround Modes
Power Per Individual Channel
Front L&R channels:
40 Watts per channel,
@ < 0.07% THD, 20Hz-20kHz into 8 ohms
Center channel:
40 Watts, @ < 007% THD, 20Hz-20kHz into 8 ohms
Surround channels:
40 Watts per channel,
@ < 007% THD, 20Hz-20kHz into 8 ohms
Input Sensitivity/Impedance
Linear (High Level) 200mV/47kohms
Signal-to-Noise Ratio (IHF-A) 95dB
Surround System Adjacent Channel Separation
Analog Decoding 40dB
(Pro Logic, etc.)
Dolby Digital (AC-3) SSdB
DTS SSdB
Frequency Response
@ 1W (+0dB, -3dB) IOHz- I 00kHz
High Instantaneous
Current Capability (HCC) :25 Amps
Transient Intermodulation
Distortion (TIM) Unmeasurable
Rise Time 16 psec
Slew Rate 40V/psec
FM Tuner Section
Frequency Range 87.5-108MHZ
Usable Sensitivity IHF 1.3 uV/I3.ZdBf
Signal-to»Noise Ratio Mono/Stereo: 70/65dB (DIN)
Distortion Mono/Stereo:0.15/0.3%
Stereo Separation 35dB @ IkHz
Selectivity i300l
Image Rejection 80dB
IF Rejection 90dB
AM Tuner Section
Frequency Range 520-161 1 kHz
Usable Sensitivity Loop: 500 W
Video Section
General
Dimensions (Max)
Width 440mm
Depth measurement includes knobs, buttons and terminal connections.
Harman Kardon is a registered trademark, and Power for the digital revolution is a
*Manufactured under license from Dolby Laboratories.
Dolby," "Pro Logic," "AC-3" and the DoublerD symbol are
TDTS and DTS Surround are trademarks of Digital Theater Systems, Inc.
VMAx is a trademark of Harman International Industries, Inc., and is an
Logic 7 is a registered trademark of Lexicon, Inc.
Without input anti slewing and output isolation networks.
TECHNICAL SPECIFICATIONS 2
Signal-to-Noise Ratio 45 dB
Distortion IkHz, 50% Mod: 0.8%
Selectivity :9kHz: 30dB
Video Format PAL/NTSC
Input Level/Impedance IVp-p/75 ohms
Output Level/Impedance IVp-p/75 ohms
Video Frequency
Response 10Hz-8MHz (-3dB)
Power Requirement AC 220-240V/50Hz
Power Consumption 72W idle, 470W maximum
Height 167mm
Depth 435mm
Weight 14.0 kg
Height measurement includes feet and chassis.
All features and specifications are subject to change without notice.
trademark, of Harman International Industries, Inc.
trademarks of Dolby Laboratories. Confidential Unpublished
Works. ©199271999 Dolby Laboratories, Inc. All rights reserved.
TlUItraStereo is a trademark of UItraStereo Corp.
implementation of Cooper Bauck Transaural Stereo under patent license.
Crystal is a registered trademark of Cirrus Logic Corp.
