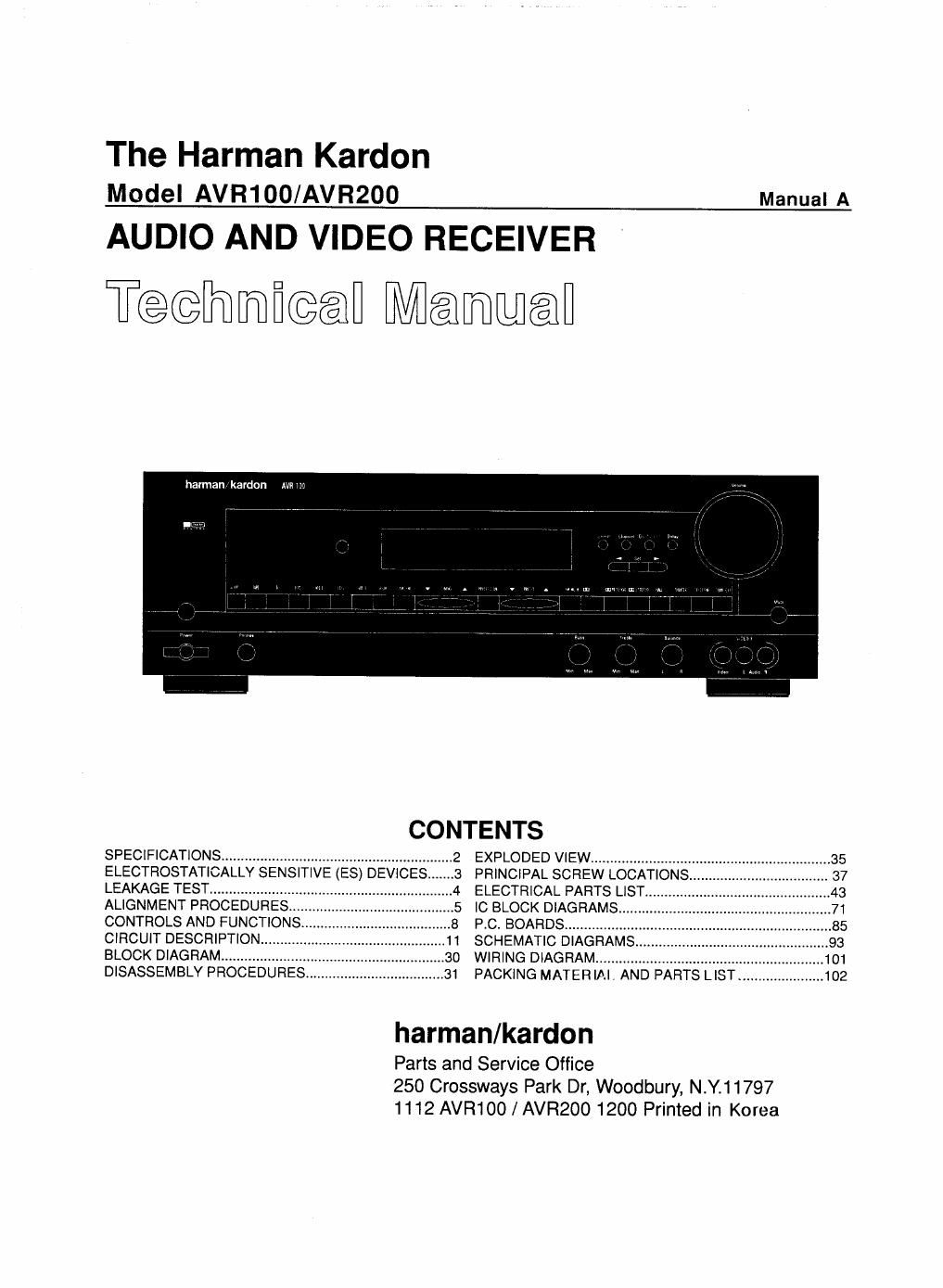

Page 1

The Harman Kardon
Model AVR100/AVR200 Manual A

AUDIO AND VIDEO RECEIVER
Te@ihmi@@i Memefl

harman kardon AVR u:

CONTENTS
.2

SPECIFICATIONS EXPLODED VIEW .............................................................. 35
ELECTROSTATICALLY SENSITIVE (ES) DEVICES 8 PRINCIPAL SCREW LOCATIONS
LEAKAGE TEST .......................... I ELECTRICAL PARTS LIST ......
ALIGNMENT PROCEDURES. IC BLOCK DIAGRAMS .....
CONTROLS AND FUNCTION A PC. BOARDS ...............
CIRCUIT DESCRIPTION 11 SCHEMATIC DIAGRAM .
BLOCK DIAGRAM..." 3O WIRING DIAGRAM .............................
DISASSEMBLY PRO ...31 PACKING MATER IAI. AND PARTS I.


harman/kardon
Parts and Service Office
250 Crossways Park Dr, Woodbury, N.Y.11797
1112 AVR100 /AVR200 1200 Primed in Korea

Page 2

Technical Specifications

Audio Section
Stereo Mode
Continuous Average Power (FTC)

45 Watts per channel, 20Hz-20I @ < 0.07% THD, both channeis driven into 8 ohms

Five-Channel Surround Modes
Power Per Individual Channei

Front L&R channeis:
40 Watts per channel,
@ < 0.07% THD, 20Hz-20kHz into 8 ohms

Center channel:
40 Watts, @ < 0.07% THD, 20Hz»20kHz into 8 ohms

Surround channels:
40 Watts per channel,
@ < 0.07% THD, 20Hz-20kHz into 8 ohms

Input Sensitivity/Impedance
Linear (High Level) 200mV/47k ohms
Signai»to-Noise Ratio (IHF-A) 95dB

Surround System Adjacent Channel Separation
Analog Decoding 40dB
(Pro Logic, etc.)
Dolby Digital (AC-3) 55dB
DTS 55dB

Frequency Response
@ 1W (+0dB, - 3dB)

High Instantaneous
Current Capability (HCC)

Transient Intermodu(ation
Distortion (TIM)

Rise Time 16 usec
Slew Rate 40V/usec

10Hz»100I

:35 Amps

Unmeasurable

FM Tuner Section
Frequency Range
Usable Sensitivity
Signal»to-Noise Ratio
Distortion
Stereo Separation
Seiectivity
Image Rejection
IF Rejection
Tuner Output Level

AM Tuner Section
Frequency Range
Signal-to-Noise Ratio
Usable Sensitivity
Distortion
Seiectivity

Video Section
Video Format
Input Level/Impedance
Output Level/Impedance
Video Frequency
Response

General
Power Requirement
Power Consumption

Dimensions (M ax)
Width
Height
Depth
Weight

87.5»108MHZ

IHF 1.3 uV/13.2dBf
Mono/Stereo 70/68dB
Mono/Stereo 0.3/0.3%
40dB @ 1I

:400kHz, 65dB

80dB

90dB

1kHz, :75kHz Dev 500mV

520»1710 kHz

45dB

Loop 500 |JV

1kHz, 50% Mod 0.8%
:10kHz, 30dB

NTSC

1Vp-p/75 ohms
1Vp-p/75 ohms
10Hz-8M Hz (>3dB)

AC 120V/60Hz
72W idle, 694W maximum
(2 channels driven)

17.3 inches (440mm)
6.5 inches (165mm)
17.1 inches (435mm)
31 lb (15.4 kg)

Depth measurement inciudes knobs, buttons and terminal connections.
Height measurement includes feet and chassis.
Ali features and specifications are subject to change without notice.

Harman Kardon is a registered trademark, and Power for the Digitai Revoiution is a
trademark, of Harman Kardon, Inc.

*M anufactured under license from Dolby Laboratories.

"Dolby," "Pro Logic," "AC-3" and the Double-D symbol are
trademarks of Doiby Labomtories. Confidential Unpublished
Works. ©1992-1999 Dolby Laboratories, Inc.Ali rights reserved.

T DTS and DTS Surround are trademarks of Digital Theater Systems, Inc.

fl UltraStereo is a trademark of UltraStereo Corp.

2 TECHNICAL SPECIFICATIONS
