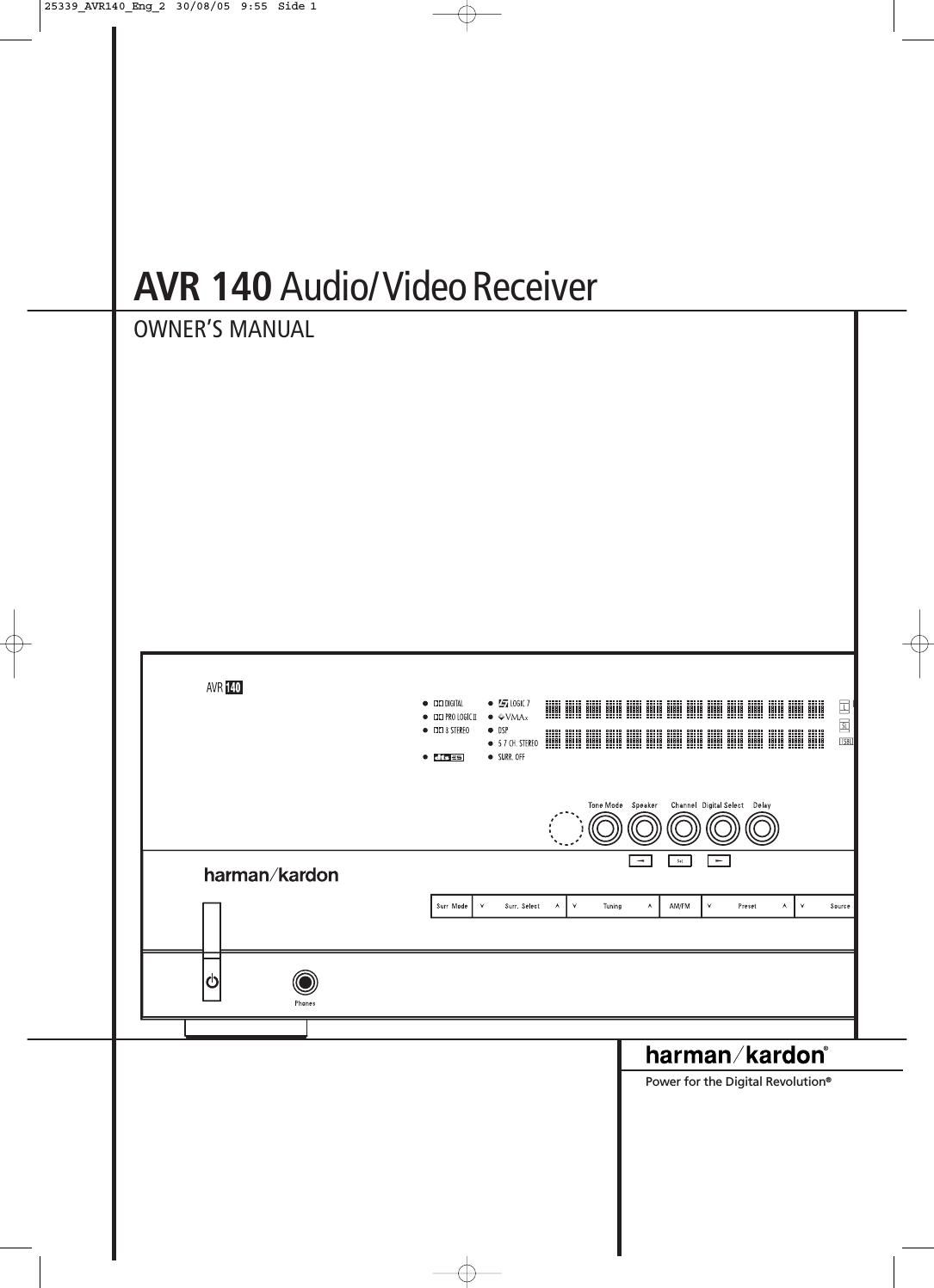

Harman kardon avr 140 owners manual
This is the 46 pages manual for harman kardon avr 140 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from harman kardon avr 140 owners manual (Ocr-read)
Page 1
2TABLE OF CONTENTS 3 Introduction 4 Safety Information 4 Unpacking 5 Front Panel Controls 7 Rear Panel Connections 9 Main Remote Control Functions 12 Installation and Connections 12 Audio Connections 12 Video Connections 13 SCART A/V Connections 14 System and Power Connections 15 Speaker Selection 15 Speaker Placement 16 System Configuration 16 First Turn On 16 Using the On-Screen Display 16 System Setup 17 Input Setup 17 Surround Setup 18 Night Mode Settings 19 Configuring the Surround Off (Stereo) Modes 20 Speaker Setup 22 Delay Settings 23 Output Level Adjustment 26 Operation 26 Surround Mode Chart 28 Basic Operation 28 Source Selection 28 6/8-Channel Direct Input 28 Controls and Use of Headphones 29 Surround Mode Selection 29 Digital Audio Playback 29 Dolby Digital 29 DTS 30 PCM Audio Playback 30 Selecting a Digital Source 30 Digital Bitstream Indicators 30 Surround mode Types 31 PCM Playback Indications 31 Speaker/Channel Indicators 32 Night Mode 32 Tape Recording 32 Using The Bridge 32 Output Level Adjustment With Source Signals 33 Memory backup 33 Advanced Features 33 Front Panel Display Fade 34 Turn-On Volume Level 34 Semi-OSD Settings 34 Full-OSD Time Out Adjustment 35 Default Surround Mode 35 Full-OSD Background Color 35 Tuner Operation 35 Basic Tuner Operation 35 Station Selection 35 Preset Tuning 36 RDS Operation 36 RDS Tuning 36 RDS Display Options 36 Program Search 37 Programming the Remote 37 Programming the Remote with Codes 37 Direct Code Entry 37 Auto Search Method 37 Code Readout Table of Contents Typographical Conventions In order to help you use this manual with the remote control, front-panel controls and rear-panel connections, certain conventions have been used. EXAMPLE – (bold type) indicates a specific remote control or front-panel button, or rear-panel connection jack EXAMPLE – (OCR type) indicates a message that is visible on the front-panel information display 1 – (number in a square) indicates a specific front-panel control – (number in a circle) indicates a rear-panel connection 0 – (number in an oval) indicates a button or indicator on the remote The appearance of the text or cursor for your receivers on-screen menus may vary slightly from the illustrations in this manual. Whether the text appears in all uppercase or upper- and lowercase characters, performance and operation remain the same. Declaration of Conformity We, Harman Consumer Group International 2, route de Tours 72500 Château-du-Loir, FRANCE declare in own responsibility, that the product described in this owners manual is in compliance with technical standards: EN 55013:2001 + A1:2003 EN 55020:2002 + A1:2003 EN 61000-3-2:2000 EN 61000-3-3:1995 + A1:2001 EN 60065:2002 Jurjen Amsterdam Harman Consumer Group International 07/05 38 Macro Programming 38 Programmed Device Functions 38 Volume Punch-Through 39 Channel Control Punch-Through 39 Transport Control Punch-Through 39 Resetting the Remote Memory 40 Function List 42 Troubleshooting Guide 42 Processor Reset 43 Technical Specifications 44 Appendix - Settings Worksheet 25339_AVR140_Eng_2 30/08/05 9:55 Side 2
Page 2
INTRODUCTION3 Introduction Thank you for choosing Harman Kardon! With the purchase of a Harman Kardon AVR 140 you are about to begin many years of listening enjoyment. Designed to provide all the excitement and detail of movie soundtracks and every nuance of musical selections, the AVR 140 is truly a multichannel receiver for the new millennium. In addition to the traditional 5.1 digital decoding modes such as Dolby Digital and DTS, it offers the latest advancements in surround technology such as Dolby Pro Logic II and IIx, the full suite of DTS-ES 6.1 modes, DTS Neo:6 and the latest 7.1 channel versions of Harman's own Logic 7 technology. The AVR 140 has been engineered so that it is easy to take advantage of all the power of its digital technology. On-screen menus, fully color coded connection jacks and terminals make installation fast and simple. However, to obtain the maximum enjoyment from your new receiv- er, we urge you to read this manual. A few min- utes spent learning the functions of the various controls will enable you to take advantage of all the power the AVR 140 is able to deliver. If you have any questions about this product, its installation or its operation, please contact your retailer or custom installer. They are your best local sources of information. Description and Features The AVR 140 is among the most versatile and multifeatured A/V receivers available, incorporat- ing a wide range of listening options. In addition to Dolby Digital and DTS decoding for digital sources, a broad choice of surround modes for Matrix surround-encoded or Stereo recordings are available for use with sources such as CD, VCR, TV broadcasts and the AVRs own FM/AM tuner. Along with Dolby Digital EX, Dolby Pro Logic II and IIx, DTS Neo:6, DTS 96/24, Dolby 3 Stereo, 5 Channel or 7 Channel Stereo and Hall and Theater modes, the AVR offers Harman Internationals exclusive Logic 7 process in both 5.1 and 7.1 versions to create a wider, more enveloping field environment and more defined fly-overs and pans. Although the AVR 140s primary use will be in multichannel systems, advanced technology is at work even when only two speakers are used, with Harman Inter- nationals proprietary VMAx ®creating envelop- ing sound fields from front left and right speak- ers only.In addition to providing a wide range of listening options, the AVR is easy to configure so that it provides the best results with your speakers and specific listening-room environment. A Stereo-Direct mode bypasses the digital processor to preserve all of the subtleties of older analog, two-channel materials, while bass management, available in the surround and Stereo-Digital modes,improves your ability to tailor the sound to suit your room acoustics or taste. For the ultimate in flexibility, the AVR features connections for four video devices, all with both composite and S-Video inputs. Two additional audio inputs are available, and a total of six digital inputs and two outputs make the AVR 140 capable of handling all the latest digital audio sources. For compatibility with the latest HDTV video sources and progressive scan DVD players, the AVR also features wide-bandwidth, low-crosstalk component video switching. Coax and optical digital outputs are available for direct connection to digital recorders. A video recording output and a color-coded eight-chan- nel input make the AVR 140 virtually future- proof, with everything needed to accommodate tomorrows new formats right on board. Until now, Harman Kardon AVRs have been able to accommodate almost any source device equipped with line-level analog, optical digital or coaxial digital outputs, including most digital media players. With one simple connection between the AVR 140 and the optional Harman Kardon , you are able to listen to materials stored on your compatible Apple ® iPod ®**. Your AVRs system remote control has been preprogrammed with control codes that enable you to select tracks for playback and navigate many of your iPods functions, even from across the room. The Bridge™ will even let you charge your iPod. The AVR 140s powerful amplifier uses traditional Harman Kardon high-current design technologies to meet the wide dynamic range of any program selection. Harman Kardon invented the high-fidelity receiver more then fifty years ago. With state-of- the-art circuitry and time-honored circuit designs, the AVR 140 is the perfect combination of the latest in digital audio technology, a quiet yet powerful analog amplifier in an elegant, easy-to-use package.Dolby* Digital, Dolby Digital EX and Dolby Pro Logic* II and IIx Decoding, and the full suite of DTS ®modes, including DTS-ES ®6.1 Discrete & Matrix and Neo:6 ® Six channels of high-current amplification Harman Kardons exclusive Logic 7 ® processing, available for the first time with both 7.1 and 5.1 processing in a variety of modes and two modes of VMAx ® Stereo-Direct Mode for Two-Channel Sources Bypasses DSP Processing to Preserve the Integrity of Analog Materials Stereo-Digital Mode for Programmable Bass Management of Low Frequencies Between Main Speakers and Subwoofer High-bandwidth, HDTV-compatible component video switching Front panel analog A/V inputs Front panel digital inputs for easy con- nection to portable digital devices and the latest video game consoles Connects to Harman Kardons (optional) for charging, playback and control of a compatible Apple ®iPod ® device Input titling for all input sources (except tuner) Multiple digital inputs and outputs On-screen menu and display system with choice of blue or black back- ground screen 6-Channel/8-Channel Direct Inputfor Use with Future Audio Formats Extensive bass management options, including three separate crossover groupings Main Remote with Internal Codes 25339_AVR140_Eng_2 30/08/05 9:55 Side 3
