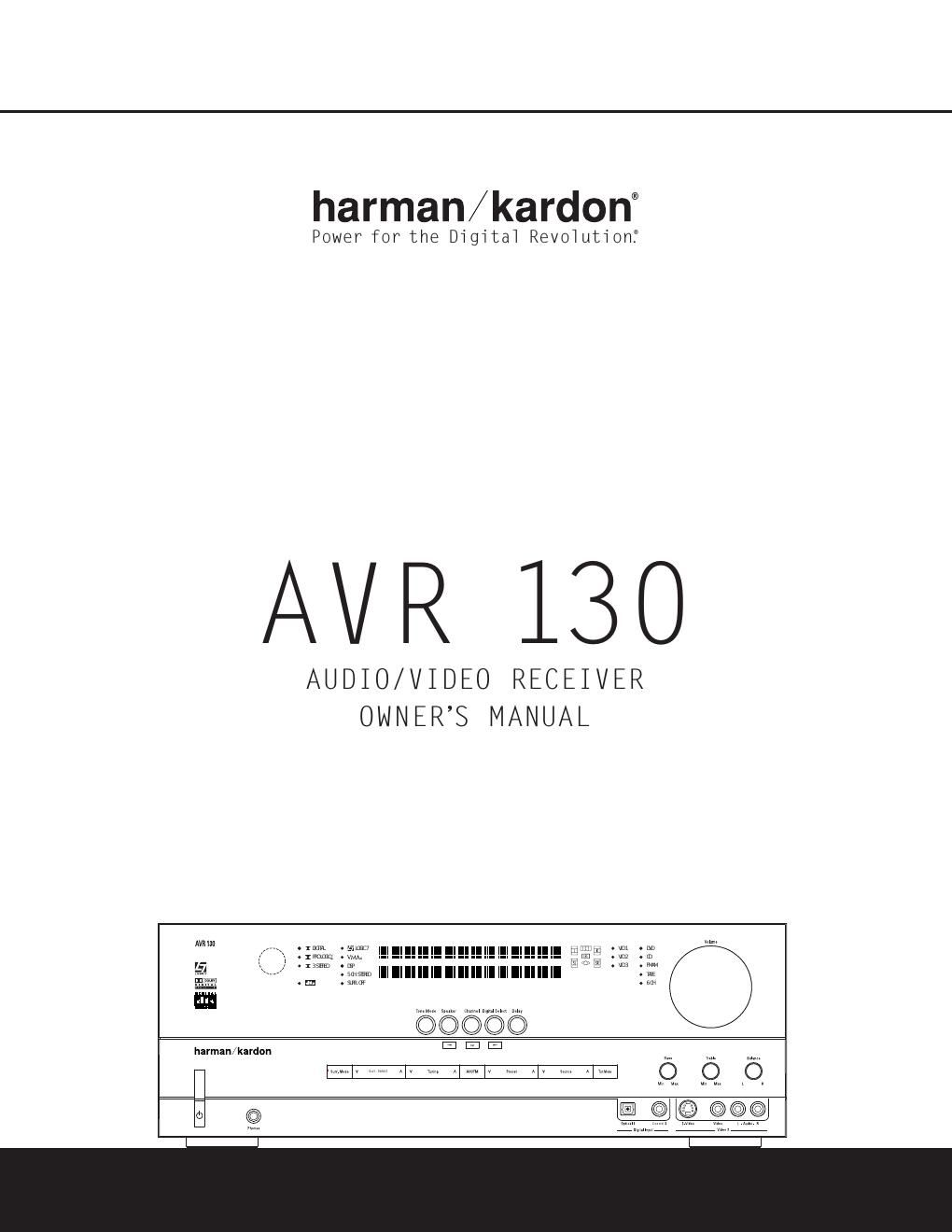

Harman kardon avr 130 owners manual
This is the 44 pages manual for harman kardon avr 130 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from harman kardon avr 130 owners manual (Ocr-read)
Page 1
Typographical Conventions In order to help you use this manual with the remote control, front-panel controls and rear-panel connections, certain conventions have been used. EXAMPLE – (bold type) indicates a specific remote control or front-panel button, or rear-panel connection jack EXAMPLE – (OCR type) indicates a message that is visible on the front-panel information display 1 – (number in a square) indicates a specific front-panel control ¡ – (number in a circle) indicates a rear-panel connection a – (number in an oval) indicates a button or indicator on the remote 2TABLE OF CONTENTS 3 Introduction 4 Safety Information 4 Unpacking 5 Front-Panel Controls 7 Rear-Panel Connections 9 Remote Control Functions 13 Installation and Connections 13 System Installation 13 Audio Equipment Connections 13 Video Equipment Connections 14 Power Connections 15 System Configuration 15 Speaker Selection and Placement 16 System Setup 16 Speaker Setup 17 Triple Crossover Setting 17 Global/Independent Bass Manager Memory 17 Configuring the Surround Off (Stereo) Modes 18 Output Level Adjustment 19 Delay Settings 19 Additional Input Adjustments 21 Operation 21 Basic Operation 21 Source Selection 21 Volume Control 22 Surround Mode Chart 23 Surround Mode Selection 23 Digital Audio Playback 23 Selecting a Digital Source 24 Digital Bitstream Indications 25 Night Mode 25 Tuner Operation 25 Tape Recording 26 Output Level Trim Adjustment 26 6-Channel Direct Input 26 Display Brightness 27 Programming the Remote 27 Direct Code Entry 27 Auto Search Method 27 Code Readout 28 Macro Programming 28 Programmed Device Functions 28 Punch-Through Programming 29 Volume Punch-Through 29 Channel Control Punch-Through 29 Transport Control Punch-Through 29 Resetting the Remote Memory 31 Function List 33 Setup Code Tables 42 Troubleshooting Guide 42 Processor Reset 43 Technical Specifications 43 Trademark Acknowledgements AVR 130 AUDIO/ VIDEO RECEIVER
Page 2
INTRODUCTION 3 INTRODUCTION Thank you for choosing Harman Kardon ®!With the purchase of a Harman Kardon AVR 130 you are about to begin many years of listening enjoyment. The AVR 130 has been custom-designed to provide all the excitement and detail of movie soundtracks and every nuance of musical selections. Dolby *Digital and DTS ® decoding allows you to take advantage of digital soundtracks from the latest DVD releases and Digital Television broadcasts. While complex digital systems are hard at work within the AVR 130 to make all of this happen, hookup and operation are simple. Color-keyed connections and a programmable remote control make the AVR 130 easy to use. To obtain the maximum enjoyment from your new receiver, we urge you to take a few minutes to read through this manual. This will ensure that con- nections to speakers, source playback units and other external devices are made properly. In addition, a few minutes spent learning the functions of the various controls will enable you to take advantage of all the power the AVR 130 is able to deliver. If you have any questions about this product, its instal- lation or its operation, please contact your retailer or custom installer. They are your best local sources of information. Description and Features The AVR 130 is a versatile and multifeatured A/V receiver, incorporating a wide range of listening options. In addition to Dolby Digital and DTS decoding for digital sources, a broad choice of analog surround modes are available for use with sources such as CD, VCR, TV broadcasts and the AVR 130s own FM/AM tuner. Along with Dolby Pro Logic *II decoding tech- nology, Dolby 3 Stereo and custom Hall and Theater modes, only Harman Kardon receivers offer Logic 7 ® to create a wider, more enveloping field environment and more defined fly-overs and pans. Another feature exclusive to Harman Kardon receivers is VMAx, ® which uses proprietary processing to create an open, spacious sound field even when only two front speakers are available. In addition to providing a wide range of listening options, the AVR 130 is easy to configure so that it provides the best results with your speakers and specific listening-room environment. A Stereo-Direct mode bypasses the digital processor to preserve all of the subtleties of older analog, two-channel materials, while bass management, available in the surround and Stereo-Digital modes, improves your ability to tailor the sound to suit your room acoustics or taste. For the ultimate in flexibility, the AVR 130 features connections for four video devices, all with both com- posite and S-Video inputs, including the front-panel inputs. Two additional audio inputs are available, and a total of six digital inputs make the AVR 130 capable of handling all the latest digital audio sources. Coax and optical digital audio outputs are also available for direct connection to digital recorders. A video recording output and a six-channel input make the AVR 130 virtually future-proof, with everything needed to accommodate tomorrows new formats right on board. The AVR 130s powerful amplifier uses traditional Harman Kardon high-current, ultrawide bandwidth design technologies. Harman Kardon invented the high-fidelity receiver fifty years ago. With state-of-the-art circuitry and time- honored circuit designs, the AVR 130 is one of the finest receivers ever offered by Harman Kardon. ■Onboard Dolby* Digital and DTS ®*Decoding Using Cirrus ®Chip Technology ■Harman Kardons Exclusive Logic 7 ®and VMAx ®Modes ■Dolby Laboratories Pro Logic* II Processing Technology ■Stereo-Direct Mode forTwo-Channel Sources Bypasses DSP Processing to Preserve the Integrity of Analog Materials ■Stereo-Digital Mode for Programmable Bass Management of Low Frequencies Between Main Speakers and Subwoofer ■Front-Panel Digital Inputs for Easy Connection to Portable Digital Devices and Video Game Consoles ■Multiple Digital Inputs and Outputs ■6-Channel Direct Input for Use With DVD- Audio or SACD Players and Other Products With Internal Surround Decoders ■Color-Coded Input, Output and Speaker Terminals Comply With CEA Standards for Easy Installation CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: To reduce the risk of electric shock, do not remove cover (or back). No user-serviceable parts inside. Refer servicing to qualified service personnel. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. TO THE USER This equipment has been tested and found to com- ply with the limits for a Class B digital device, pur- suant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against interference in a residential area. This device gener- ates and uses radio frequency energy and if not installed and used in accordance with the instruc- tions, it may cause interference to radio or TV reception. If this unit does cause interference with TV or radio reception, you can try to correct the interference by one or more of the following measures: A. Reorient or relocate the receiving antenna. B.Increase the separation between the equipment and the receiver. C.Plug the equipment into a different outlet so that it is not on the same circuit as the receiver. If necessary, consult the dealer or an experienced radio/TV technician for additional suggestions. CAUTION: Changes or modifications to this equipment not expressly approved by Harman Consumer Group for compliance could void the users authority to operate this equipment. CORDE DE CONNEXION CA ATTENTION: POUR ÉVITER LES CHOCS ÉLECTRIQUES, INTRO- DUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQUAU FOND. AC POWER CORD CONNECTION CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. For CANADA Pour le CANADA
