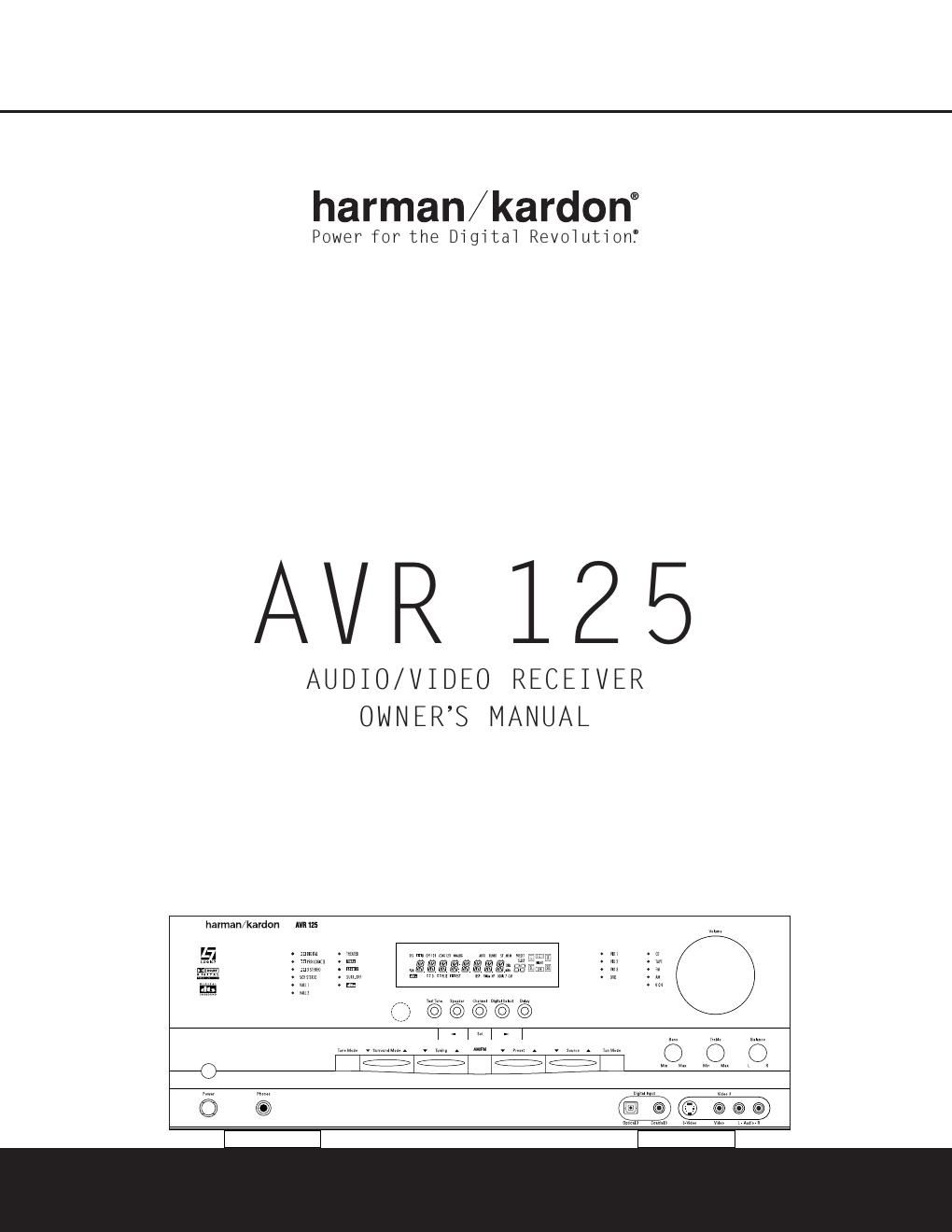

Harman kardon avr 125 owners manual
This is the 44 pages manual for harman kardon avr 125 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from harman kardon avr 125 owners manual (Ocr-read)
Page 1
Typographical Conventions In order to help you use this manual with the remote control, front-panel controls and rear-panel connections, certain conventions have been used. EXAMPLE – (bold type) indicates a specific remote control or front-panel button, or rear-panel connection jack EXAMPLE – (OCR type) indicates a message that is visible on the front-panel information display 1 – (number in a square) indicates a specific front-panel control ¡ – (number in a circle) indicates a rear-panel connection a – (number in an oval) indicates a button or indicator on the remote A – (letter in a square) indicates an indicator in the front-panel information display 2TABLE OF CONTENTS 3 Introduction 4 Safety Information 4 Unpacking 5 Front-Panel Controls 7 Front-Panel Information Display 9 Rear-Panel Connections 11 Remote Control Functions 14 Installation and Connections 14 System Installation 14 Audio Equipment Connections 14 Video Equipment Connections 15 Power Connections 16 System Configuration 16 Speaker Selection and Placement 17 System Setup 17 Speaker Setup 18 Configuring the Surround Off (Stereo) Modes 18 Stereo-Direct (Bypass) Mode 18 Stereo-Digital Mode 18 Output Level Adjustment 19 Delay Settings 20 Additional Input Adjustments 21 Operation 21 Basic Operation 21 Source Selection 21 Volume Control 22 Surround Mode Chart 23 Surround Mode Selection 23 Digital Audio Playback 23 Selecting a Digital Source 24 Digital Status Indicators 24 Night Mode 25 Tuner Operation 25 Tape Recording 25 Output Level Trim Adjustment 26 6-Channel Direct Input 26 Display Brightness 27 Programming the Remote 27 Direct Code Entry 27 Auto Search Method 27 Code Readout 28 Macro Programming 28 Programmed Device Functions 28 Punch-Through Programming 29 Volume Punch-Through 29 Channel Control Punch-Through 29 Transport Control Punch-Through 29 Resetting the Remote Memory 31 Function List 33 Setup Code Tables 42 Troubleshooting Guide 42 Processor Reset 43 Technical Specifications AVR 125 AUDIO/ VIDEO RECEIVER
Page 2
INTRODUCTION 3 INTRODUCTION Thank you for choosing Harman Kardon ®!With the purchase of a Harman Kardon AVR 125 you are about to begin many years of listening enjoyment. The AVR 125 has been custom-designed to provide all the excitement and detail of movie soundtracks and every nuance of musical selections. Onboard Dolby ®* Digital and DTS ®* decoding allows you to take advantage of digital soundtracks from the latest DVD releases and Digital Television broadcasts. While complex digital systems are hard at work within the AVR 125 to make all of this happen, hookup and operation are simple. Color-keyed connections and a programmable remote control make the AVR 125 easy to use. To obtain the maximum enjoyment from your new receiver, we urge you to take a few minutes to read through this manual. This will ensure that con- nections to speakers, source playback units and other external devices are made properly. In addition, a few minutes spent learning the functions of the various controls will enable you to take advantage of all the power the AVR 125 is able to deliver. If you have any questions about this product, its instal- lation or its operation, please contact your retailer or custom installer. They are your best local sources of information. Description and Features The AVR 125 is among the most versatile and multi- featured A/V receivers available, incorporating a wide range of listening options. In addition to Dolby Digital and DTS decoding for digital sources, a broad choice of analog surround modes are available for use with sources such as CD, VCR, TV broadcasts and the AVR125s own FM/AM tuner. Along with the latest Dolby Pro Logic ®* II decoding technology, Dolby 3 Stereo and custom Hall and Theater modes, only Harman Kardon receivers offer Logic 7 ®* to create a wider, more enveloping field environment and more defined fly-overs and pans. Another Harman Kardon exclusive is VMAx ®*, which uses proprietary process- ing to create an open, spacious sound field even when only two front speakers are available. In addition to providing a wide range of listening options, the AVR 125 is easy to configure so that it provides the best results with your speakers and spe- cific listening-room environment. A Stereo-Direct mode bypasses the digital processor to preserve all of the subtleties of older analog, two-channel materials, while bass management, available in the surround and Stereo-Digital modes, improves your ability to tailor the sound to suit your room acoustics or taste. For the ultimate in flexibility, the AVR 125 features connections for four video devices, all with both com- posite and S-Video inputs, including the front-panel inputs. Two additional audio inputs are available, and a total of six digital inputs make the AVR 125 capable of handling all the latest digital audio sources. Coax and optical digital audio outputs are also available for direct connection to digital recorders. A video recording output and a six-channel input make the AVR 125 virtually future-proof, with everything needed to accommodate tomorrows new formats right on board. The AVR 125s powerful amplifier uses traditional Harman Kardon high-current, ultrawide bandwidth design technologies. Harman Kardon invented the high-fidelity receiver almost fifty years ago. With state-of-the-art circuitry and time-honored circuit designs, the AVR 125 is one of the finest receivers ever offered by Harman Kardon. ■Onboard Dolby ®*Digital and DTS ®*Decoding Using Crystal ®*Chip Technology ■Harman Kardons Exclusive Logic 7 ®*and VMAx ®Modes ■Dolby Laboratories Latest Pro Logic ®*II Decoding Technology ■Stereo-Direct Mode forTwo-Channel Sources Bypasses DSP Processing to Preserve the Integrity of Analog Materials ■Stereo-Digital Mode for Programmable Bass Management of Low Frequencies Between Main Speakers and Subwoofer ■Front-Panel Digital Inputs for Easy Connection to Portable Digital Devices and the Latest Video Game Consoles ■Multiple Digital Inputs and Outputs ■6-Channel Direct Input for Use With DVD- Audio Players, Other Products With Internal Surround Decoders or External Surround Decoders ■Color-Coded Input, Output and Speaker Terminals Comply With the Latest CEA Standards for Easy Installation CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: To reduce the risk of electric shock, do not remove cover (or back). No user-serviceable parts inside. Refer servicing to qualified service personnel. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. TO THE USER This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against interference in a residential area. This device generates and uses radio frequency energy and if not installed and used in accordance with the instructions, it may cause interference to radio or TV reception. If this unit does cause interference with TV or radio reception, you can try to correct the interference by one or more of the following measures: A. Reorient or relocate the receiving antenna. B.Increase the separation between the equipment and the receiver. C.Plug the equipment into a different outlet so that it is not on the same circuit as the receiver. If necessary, consult the dealer or an experienced radio/TV technician for additional suggestions. CAUTION: Changes or modifications to this equipment not expressly approved by harman consumer group for compliance could void the users authority to operate this equipment. CORDE DE CONNEXION CA ATTENTION: POUR ÉVITER LES CHOCS ÉLECTRIQUES, INTRO- DUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQUAU FOND. AC POWER CORD CONNECTION CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. For CANADA Pour le CANADA
