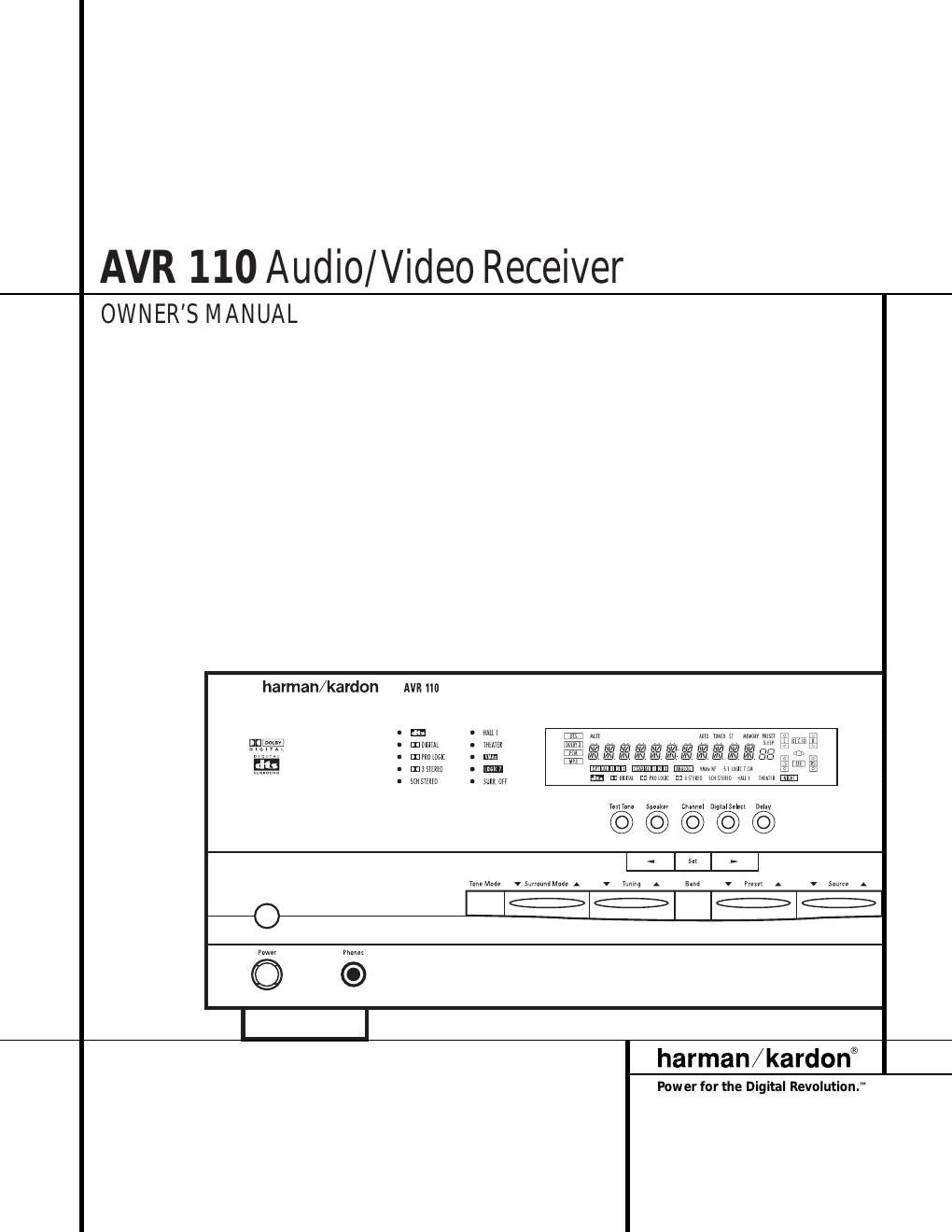

Harman kardon avr 110 owners manual
This is the 48 pages manual for harman kardon avr 110 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from harman kardon avr 110 owners manual (Ocr-read)
Page 1
2TABLE OF CONTENTS 3Introduction 4Safety Information 4Unpacking 5Front Panel Controls 7Front Panel Information Display 9Rear Panel Connections 11Remote Control Functions 14Installation and Connections 16System Configuration 16Speaker Placement 17System Setup 17Speaker Configuration 18Output Level Adjustment 19Delay Settings 21Operation 21Basic Operation 21Source Selection 22Surround Mode Chart 23Surround Mode Selection 23Digital Audio Playback 23Selecting a Digital Source 25Tuner Operation 26Tape Recording 26Output Level Trim Adjustment 26Display Brightness 27Programming the Remote 27Direct Code Entry 27Auto Search Method 27Code Readout 28Macro Programming 28Programmed Device Functions 29Volume Punch-Through 29Channel Control Punch-Through 29Transport Control Punch-Through 30Reassigning Device Control Selectors 31Function List 33Setup Code Tables 43Troubleshooting Guide 43Processor Reset 44Technical Specifications AVR 110Audio/ Video Receiver Typographical Conventions In order to help you use this manual with the remote control, front panel controls and rear panel connections, certain conventions have been used. EXAMPLEÐ (bold type) indicates a specific remote control or front panel button, or rear panel connection jack EXAMPLEÐ (OCR type) indicates a message that is visible on the front panel information display EXAMPLEÐ (outlined type) indicates a lit indicator in the front panel information display 1Ð (number in a square) indicates a specific front panel control ÁÐ (number in a circle) indicates a rear panel connection aÐ (number in an oval) indicates a button or indicator on the remote AÐ (letter in a square) indicates an indicator in the front panel display
Page 2
3INTRODUCTION Introduction Thank you for choosing Harman Kardon! With the purchase of a Harman Kardon AVR 110, you are about to begin many years of listening enjoyment. The AVR 110 has been custom-designed to provide all the excitement and detail of movie soundtracks and every nuance of musical selections. With onboard Dolby* Digital and DTS ¨decoding, the AVR 110 delivers six discrete channels of audio that take advantage of the digital soundtracks from the latest DVD and LD releases and Digital Television broadcasts. While complex digital systems are hard at work within the AVR 110 to make all of this happen, hookup and operation are simple. To obtain the maximum enjoyment from your new receiver, we urge you to take a few minutes to read through this manual. This will ensure that connections to speakers, source playback units and other external devices are made properly. In addition, a few minutes spent learning the functions of the various controls will enable you to take advantage of all the power the AVR 110 is able to deliver. If you have any questions about this product, its installation or its operation, please contact your retailer or custom installer. They are your best local sources of information. Description and Features The AVR 110 is among the most versatile and multi-featured A/V receivers available, incorpo- rating a wide range of listening options. In addition to Dolby Digital and DTS decoding for digital sources, a broad choice of analog sur- round modes are available for use with sources such as CD, VCR, TV broadcasts and the AVR 110Õs FM/AM tuner. Along with Dolby Pro Logic*, Dolby 3 Stereo and custom Hall and Theater modes, only Harman Kardon receivers offer Logic 7 ¨to create a wider, more envelop- ing field environment and more defined fly- overs and pans. Another Harman Kardon exclu- sive is VMAx ¨, which uses proprietary process- ing to create an open, spacious sound field even when only two front speakers are avail- able. Finally, the AVR 110 is among the very few A/V receivers that offer decoding of MP3 data, so that you may listen to the latest music selections directly from compatible computers or playback devices with the power and fidelity you expect from Harman Kardon.In addition to providing a wide range of listening options, the AVR 110 is easy to configure so that it provides the best results with your speakers and specific listening-room environment. For the ultimate in flexibility, the AVR 110 fea- tures connections for four video devices, all with both composite and S-Video inputs. Two additional audio inputs are available, and a total of six digital inputs make the AVR 110 capable of handling all the latest digital audio sources. Coax and optical digital outputs are also available for direct connection to digital recorders. The AVR 110Õs powerful amplifier uses traditional Harman Kardon high-current design technologies to meet the wide dynamic range of any program selection. Harman Kardon invented the high-fidelity receiver more than forty-seven years ago. With state-of-the-art circuitry and time-honored cir- cuit designs, the AVR 110 is one of the finest receivers ever offered by Harman Kardon.nOnboard Dolby Digital and DTS Decoding Using Crystal ¨Chip Technology nHarman KardonÕs Exclusive Logic 7 and VMAx Modes nMP3 Decoding for Use With Computers and Digital Audio Players nFront Panel Digital Inputs for Easy Connection to Portable Digital Devices and the Latest Video Game Consoles nMultiple Digital Inputs and Outputs CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: To prevent electric shock, do not use this (polarized) plug with an extension cord, receptacle or other outlet unless the blades can be fully inserted to prevent blade exposure. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
