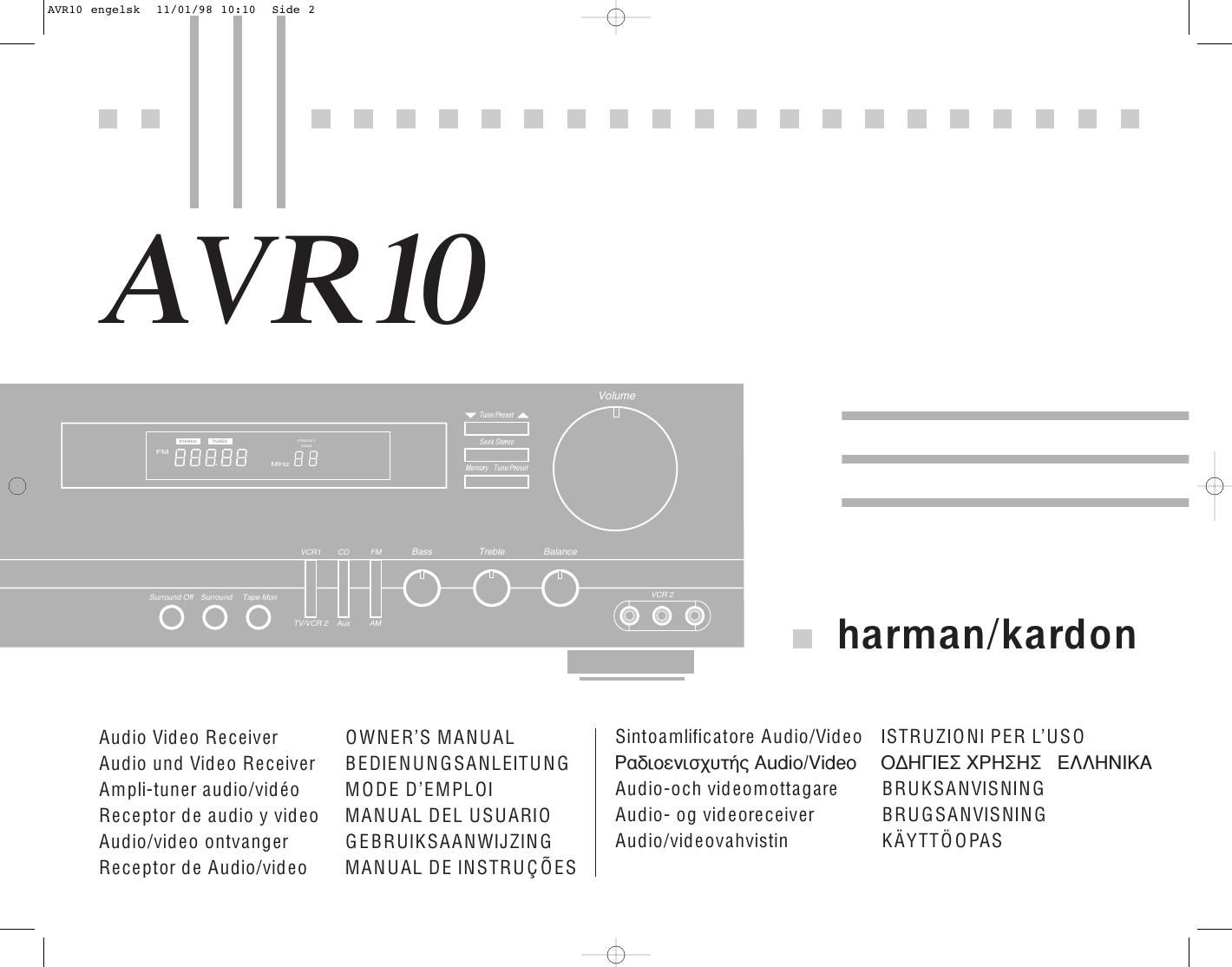

Harman kardon avr 10 owners manual

Page 2

HANDLE THE POW ER CORD GENTLY ■ To disconnect the plug from the AC outlet, pull on the plug itself, not on the cord. ■ Disconnect the plug from the AC outlet whenever the unit is to be left unused for an extended period of time. ■ Do not place furniture or other heavy objects on the cord, and avoid dropping heavy objects on it. Also do not make a knot in the cord. PLACE THE UNIT ON A FIRM AND LEVEL SURFACE Avoid installing it: ■ In moist or humid places ■ Close to heating equipment or in places exposed to direct sunlight ■ In a direct draft from an air conditioner or in other very cold locations ■ In places subject to excessive vibration or dust ■ In poorly ventilated places M OVING THE UNIT Before moving the unit, be sure to unplug the power cord from the AC outlet and disconnect all wires to antennas and other components. DO NOT OPEN THE CABINET Do not attempt to service this unit. Tampering with internal components can cause fire or shock, and may void your guarantee. If water or a small object enters the unit, unplug the power cord immediately and consult an authorized Harman Kardon service center. Using the unit under such conditions may cause a fire or shock hazard. CLEANING Remove dust by wiping the unit with a soft, dry cloth. If necessary, use a soft cloth lightly dampened with mild soapy water; then wipe with a dry cloth. Never use benzene, thinner, alcohol or other volatile agents, and avoid spraying insecticides near the unit. TABLE OF CONTENTS Front Panel Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 Rear Panel Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 Surround Sound Effects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 AVR10 System Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 Trouble Shooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17 2 ENGLISH FCC INFORMATION This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio TV technician for help. CAUTION: Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the users authority to operate the equipment. AVR10 engelsk 11/01/98 10:10 Side 2
