Harman Kardon 730 Service Manual

This is the 24 pages manual for Harman Kardon 730 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 24
Harman Kardon 730 Service Manual

Extracted text from Harman Kardon 730 Service Manual (Ocr-read)

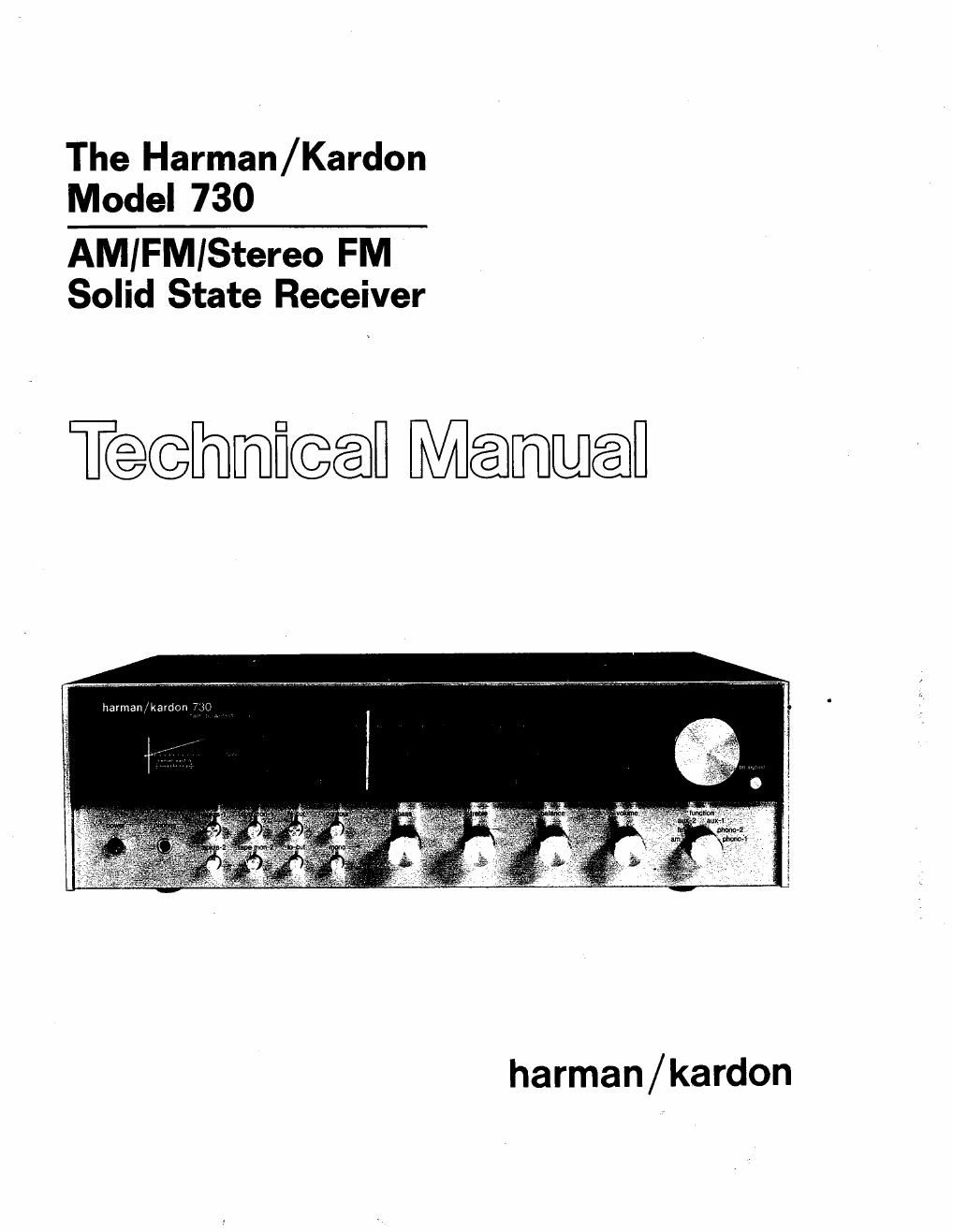

Page 1

The Harman / Kardon
Model 730

AMIFMIStereo FM
Solid State Receiver

Tedhmfiwfl Memwenfl

harman / kardon

Page 2

PRECAUTIONS

Always disconnect the chassis from power line when soldering. Turning the power switch OFF is not enough.
Power line leakage passing through the heating element may destroy the transistors.

Never attempt to do any work on the transistor amplifiers without first disconnecting the AC line card and
waiting until the power supply filter capacitors have discharged.

Replacement for output and driver transistors, if necessary, must be made from the same beta group as the
original type.

If one output transistor burns out (open or short) always remove all the output transistors in that channel and
check the bias adjustment, the control and other parts in the network with an ohmmeter before inserting a new
transistor. All transistors in one channel will be destroyed if the base biasing circuit is open on the emitter end.

When mounting a replacement power transistor, be sure that the bottom of the flange, the mica insulators and
the surface of the heat sink are free of foreign matter, for they may cause transistor failure.

Silicon grease must be applied between the transistor and the mica insulator, and between the mica insulator and
the heat sink for better heat conduction.

Fuses must be replaced with size and type indicated. Use of other types can expose components to destructive
current levels.
