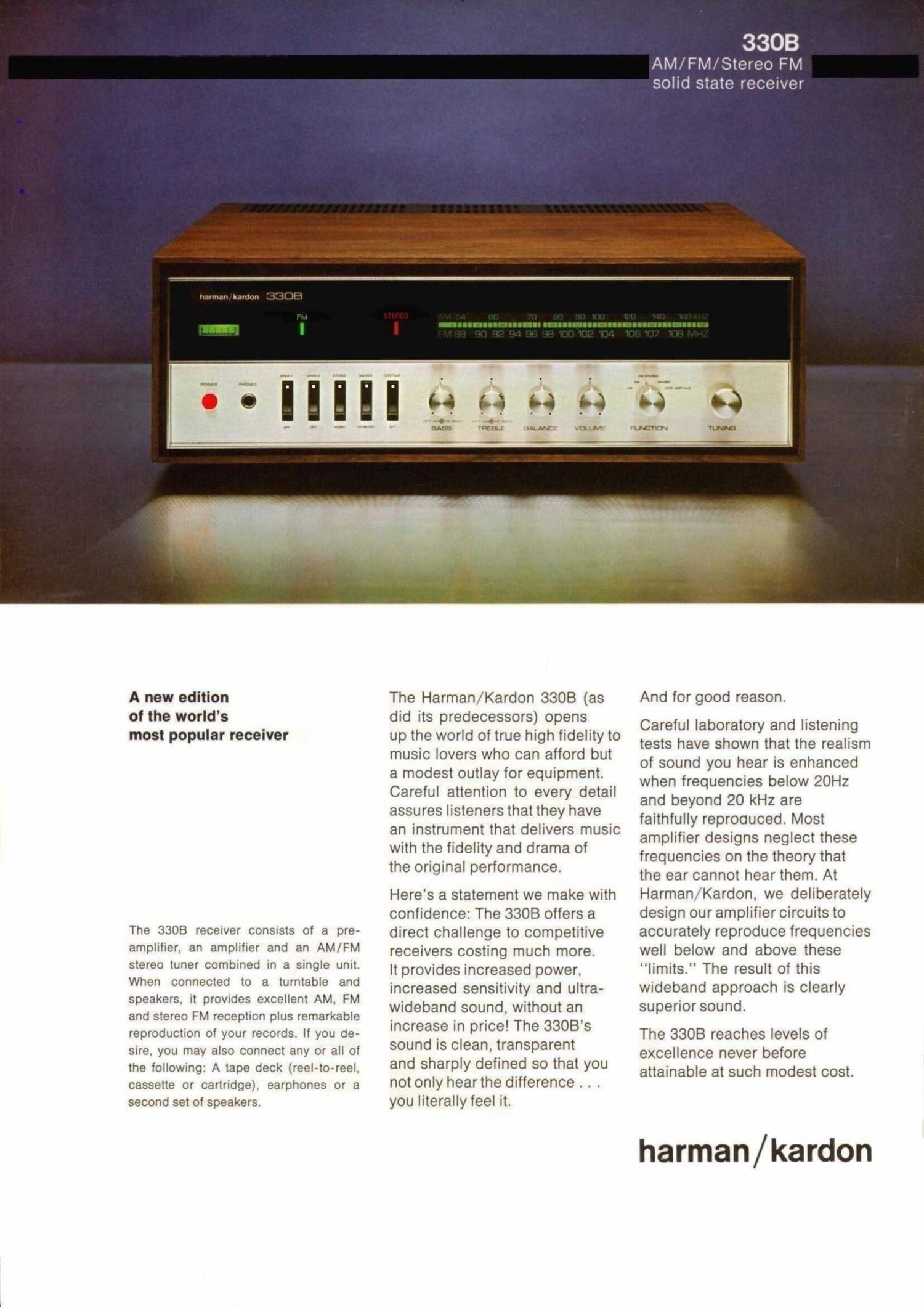

Harman kardon 330b prospekt

Page 1

A new edition
of the world's
most popular receiver

The 3308 receiver con5ists of a pre-
amplifier, an amplifier and an AM/FM
stereo tuner combined in a single unit.
When connected to a turntable and
speakers, it provides excellent AM. FM
and stereo FM reception plus remarkable
reproduction of your records. If you de-
sire. you may also connect any or all of
the following: A tape deck (reel-to-reel.
cassette or cartridge), earphones or a
second set of speakers

.49

«awr

.4

"3. l'

N.

3308
AM/FM/Stereo FM
solid state receiver

The Harman/Kardon 3308 (as
did its predecessors) opens

up the world of true high fidelity to
music lovers who can afford but
a modest outlay for equipment.
Careful attention to every detail
assures listeners that they have
an instrument that delivers music
with the fidelity and drama of

the original performance.

Here's a statement we make with
confidence: The 3308 offers a
direct challenge to competitive
receivers costing much more.
It provides increased power.
increased sensitivity and ultra-
wideband sound, without an
increase in price! The 3308's
sound is clean, transparent

and sharply defined so that you
not only hearthe difference. . .
you literally feel it.

And for good reason.

Careful laboratory and listening
tests have shown that the realism
of sound you hear is enhanced
when frequencies below 20Hz
and beyond 20 kHz are

faithfully reproouced. Most
amplifier designs neglect these
frequencies on the theory that
the ear cannot hear them. At
Harman/Kardon, we deliberately
design our amplifier circuits to
accurately reproduce frequencies
well below and above these
limits." The result of this
wideband approach is clearly
supenorsound.

The 3308 reaches levels of
excellence never before
attainable at such modest cost.

harman / kardon

Page 2

3303 Specifications

AMPLIFIER SECTION
Power Output:

Power Bandwidth:

Total Harmonic Distortion:
Intennodulation Distortion:
Rum and Noise:

Damping Factor:

Frequency Response:

Square Wave Rise Time:
ttablllty:
Tone Control Range:

Phone Input:

Auxiliary Input:

Contour Ellect:

20/20 watts, CONTINUOUS. both channels driven
into 8 ohms, at lkHz. at 0.5% THD, measured

at 120 VAC.

From less than 25Hz to beyond 20KHz into 8 ohms

at less than 1.0% THD.
Less than 0.5%.

Less than 0.5% from 1 watt to lull power.

Better than 75dB below rated output (unweighted)

30:1

From below 20Hz to beyond 20kHz :1.0dB at

normal power levels.

Better than 5 microseconds.

Absolutely stable with all types of speakers.

Bass: 12dB boost and cut at 50Hz.
Treble: 12dB boost and cut at 10kHz.
[errorz -_t-1.5dB at flat setting)

Sensitivity - 3.3mV
Overload - 70mV

Hum and Noise - 55dB below rated output (unweighted)

Impedance -- 47,000 ohms
FtIAA equalization - :1 .SdB

Sensitivity - 200mV

Overload - related to volume control setting
Hum and Noise --- 60dB below rated output (unweighted)

Impedance - 20,000 ohms
:10dB at 50Hz, 40dB below tull output.

TUNER SECTION
FM Sensitivity: 2.5 microvolts (IHF)
Ultimate Signal to Noise: 60dB
Capture Ratio: 3dB
Image Rejection: 40dB
Spurious Response Rejection: 60dB
De-emphasis: 75 microseconds 11.5dB
IF Rejection: 60dB
AM Rejection: 50dB
Multiplex Separation: 25dB at 1kHz
Total Harmonic Distortion: mono: 1.0%
stereo: 1.5%
Alternate Channel Selectivity: SOdB
Antenna Input: 3000
AM Sensitivity: 350 microvolts/meter
Image Frequency Rejection: -40dB
IF Rejection: -7oda
Selectivity: SOdB (at :400kHz)
Dimensions: 15% W x13" 0 x 4V2" H
[38.7cm W x 33.0cm D x 11.4cm H)
Weight: 21 pounds (9.45kg) WALNUT ENCLOSURE OPTIONAL
harman / kardon 55 Ames Court, Plainview. N. Y. 11803 Printed in USA 1974
All specnications and features are subiect to

change without notice
