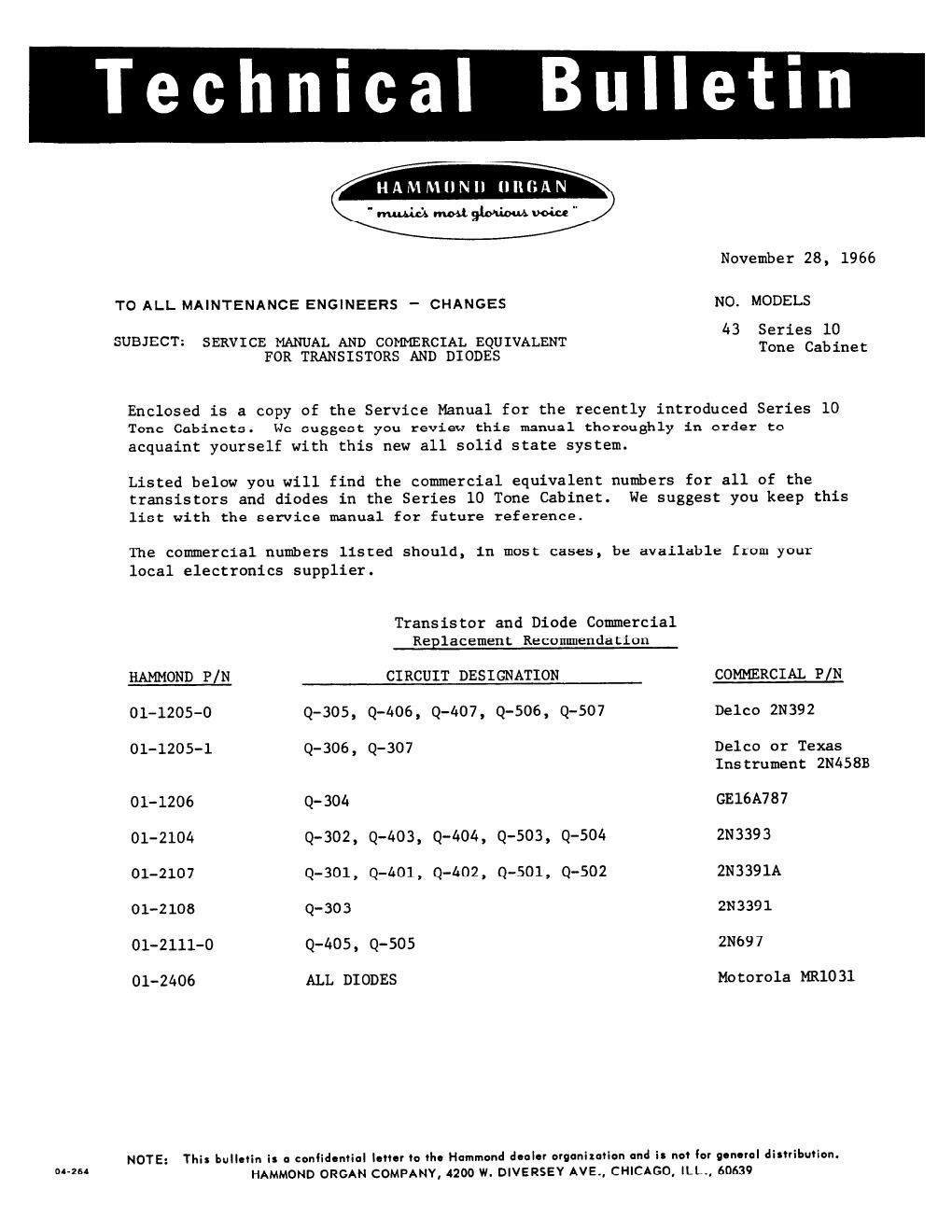

Technical Bulletin
November 28, 1966
TO ALL MAINTENANCE ENGINEERS - CHANGES NO. MODELS
43 s 1 10
SUBJECT: SERVICE MANUAL AND COMMERCIAL EQUIVALENT TiieeZabin t
FOR TRANSISTORS AND DIODES e
Enclosed is a copy of the Service Manual for the recently introduced Series 10
Tone Cabinets. We suggest you review this manual thoroughly in order to
acquaint yourself with this new all solid state system.
Listed below you will find the commercial equivalent numbers for all of the
transistors and diodes in the Series 10 Tone Cabinet. We suggest you keep this
list with the service manual for future reference.
The commercial numbers listed should, in most cases, be available from your
local electronics supplier.
Transistor and Diode Commercial
Replacement Recommendation
HAMMOND P/N CIRCUIT DESIGNATION COMMERCIAL P/N
01-1205-0 Q-305, Q-406, Q-407, Q-506, Q-507 Delco 2N392
01-1205-1 Q-306, Q-307 Delco or Texas
Instrument ZNASSB
01-1206 Q-304 GE16A787
01-2104 Q-302, Q-403, 0-404, Q-503, Q-SOA 2N3393
01-2107 Q-301, (3-401, 0-402, (1-501, Q-SOZ 2N3391A
01-2106 (1-303 2N339l
01-2111-0 Q-405, Q-505 2N697
01-21406 ALL DIODES Motorola MR1031
NOTE: This bullavin is o confid-Mial knot in 9h. Hammond dealer organization and i: no, for gonoral distribution.
"2 HAMMOND ORGAN COMPANY, 4200 w. Duvensev AVE., CHICAGO, |LL., 60639
