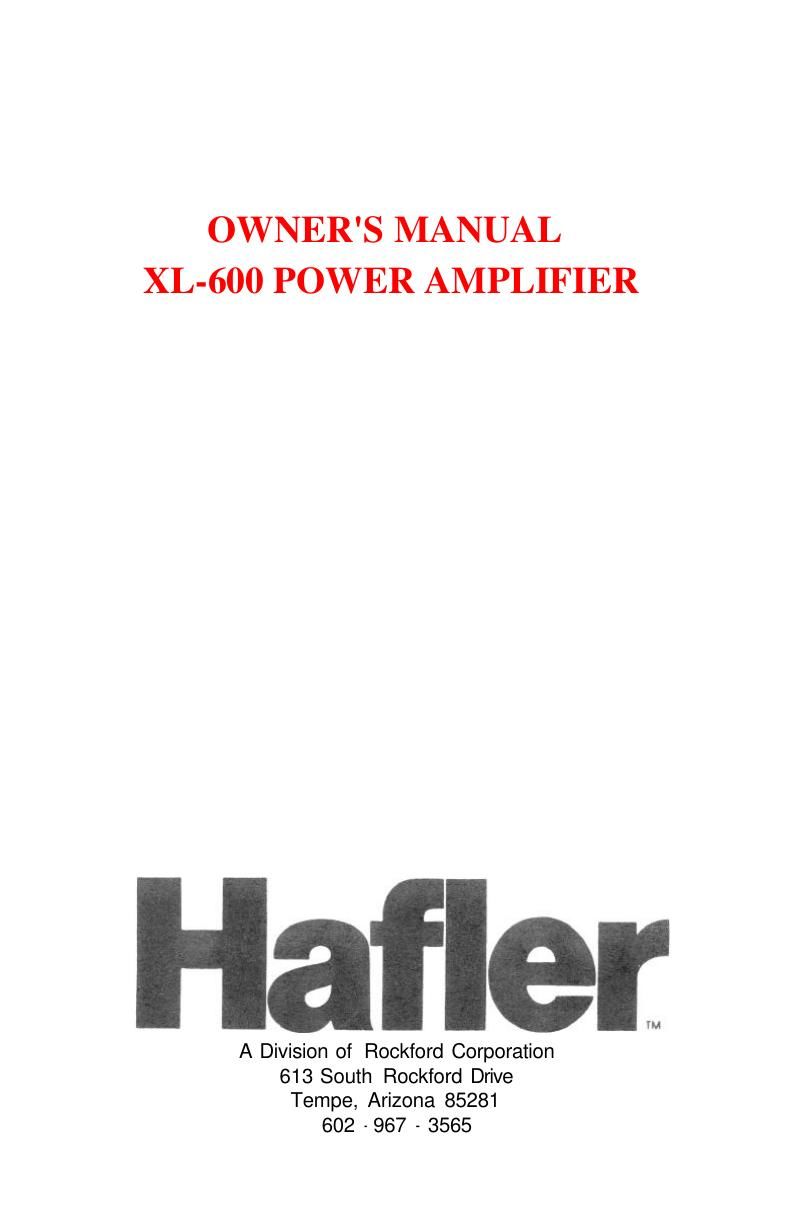

Hafler XL 600 Owners Manual
This is the 12 pages manual for Hafler XL 600 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Hafler XL 600 Owners Manual (Ocr-read)
Page 1
SPECIFICATIONS POWER RATING: Less than 0.08% THD at any power level up to 305 watts per channel into 8 ohms at any frequency from 20 - 20 kHz with both channels driven. CONTINUOUS POWER OUTPUT: 450 watts per channel into 4 ohms at less than 0.1% THD, 20 - 20 kHz. 900 watts in mono into 8 ohms at less than 0.1% THD, 20 - 20 kHz. CONTINUOUS POWER AT CLIPPING: * Into 8 ohms, per channel: 360 watts Into 4 ohms, per channel: 500 watts Into 2 ohms, per channel: 750 watts Into 1 ohms, per channel: 900 watts Into 8 ohms, per channel: 1000 watts Into 4 ohms, per channel: 1500 watts IM DISTORTION (SMPTE): Less than 0.04% from 1 watt to 305 watts into 8 ohms. FREQUENCY RESPONSE @ 1 WATT INTO 8 OHMS: +/- 0.1 dB, 10 Hz to 50 kHz +/- 3 dB, 0.1 Hz to 500 kHz POWER BANDWIDTH: Greater than 100 kHz PHASE SHIFT FROM 20 - 20 kHz: Less than 1/4 of one degree SLEW RATE: 10 kHz, 130 volts peak-to-peak square wave: 100 V/us SIGNAL TO NOISE RATIO, UNWEIGHTED: More than 100 dB @ 305 watts into 8 ohms INPUT: 47,000 ohms; 1.8 volts for 305 watts into 8 ohms DAMPING FACTOR INTO 8 OHMS: > 200 to 1 kHz; 150 @ 10 kHz PHYSICAL: 7 high, 19 wide, and 13 deep, plus 1/2 for feet, plus 2 for handles. Net weight 51 Ibs.; Shipping weight 55 Ibs.
Page 2
*Continuous duty cycle across the audio band. Dependingon impedance, time may be thermally limited to several minutes. Congratulations on your purchase of this EXCELINEAR POWER AMPLIFIER. We are confident that this amplifier is capable of driving any known loudspeaker load, with sufficient power reserves to suit any home listening situa- tion. Furthermore, its refined circuitry will deliver that power with an accuracy that is sure to satisfy the most demanding of audiophiles. INSTALLATION The gloss black insert on the faceplate of your new Hafler Equipment has been packaged with a removable protec- tive coating. Please peel off this coating following installa- tion. When cleaning the faceplate, we advise a soft cotton cloth with a non-abrasive cleaner that is safe for Lexan and painted surfaces. DO NOT use paper towels or any coarse materials to clean the faceplate as these materials may scratch the insert. Ventilation Adequate air flow is important to the continuing reliability of any power amplifier. The XL-600 uses a quiet, con- tinuously variable speed fan to cool the entire chassis Cool air must circulate freely into the side vents and out the rear vent. Allow at least one inch on each side, and at least three inches to the rear for unimpeded flow. AC Line Connections and Switching NOTE: BE SURE YOUR AMPLIFIER IS WIRED FOR YOUR LOCAL LINE (MAINS) VOLTAGE BEFORE CON- NECTING AC POWER! 2
Page 11
If the pilot lamp does not glow when the amplifier is turned on, and it is not due to an excessive temperature condition, then either the internal 15 ampere line fuse is blown, or the circuit breaker or fuse supplying the AC power has inter- rupted power. If no sound is heard once the relay engages and an input signal is applied, check all input and output connections, as well as the back panel speaker protection fuses. In addition to the internal 15 ampere line fuse, there are four 10 amp rail fuses, None of these internal fuses are intended to be user replaceable, and a blown condition usually indicates a need for professional service. FACTORY SERVICE & LIMITED WARRANTY If you encounter any difficulty or have any questions con- cerning your XL-600 amplifier, please call our Customer Service Department weekdays, 8 am to 3:30 pm Moun- tain Standard time, at 602-967-3565. Before returning any unit to the factory for service, please call us. All units being returned (regardless of warranty status) must receive a Return Authorization (RA) Number. In addition, we can offer trouble-shooting assistance that may often simplify or even eliminate the need for factory service. The Hafler XL-600 is warranted for 3 years from date of purchase, including parts, labor, and return shipping costs from the factory to the owner within the Continental USA. It is the owners responsibility to pay shipping (preferably UPS) to the factory: collect shipments will not be accepted. Units under warranty should be accompanied by a copy of a dated Bill Of Sale. Use the original carton and all packing material, and be sure to include a return address, and a brief description of the difficulty, including whether is intermittent. This warranty gives you specific legal rights. You may also have other rights which vary from state to state. 11
