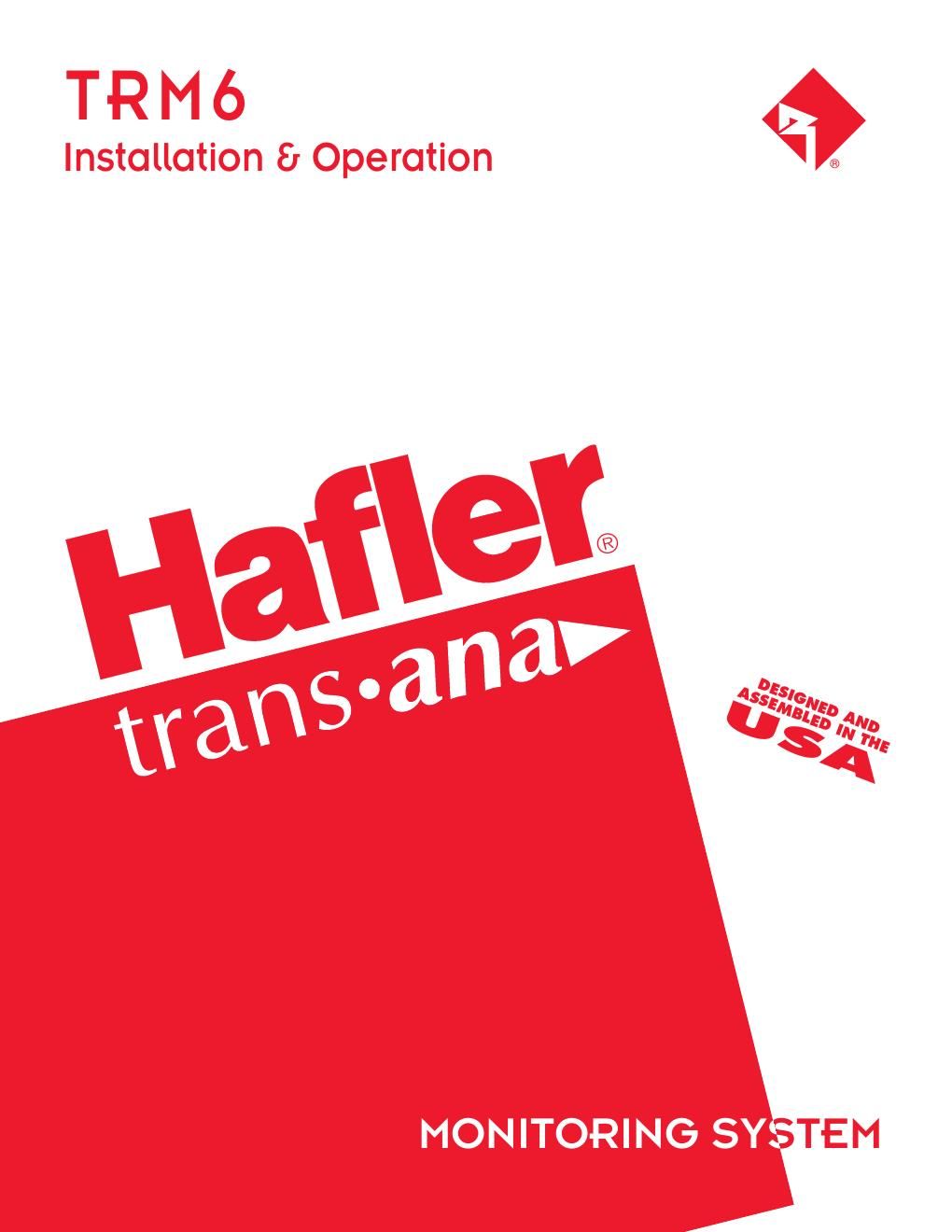

Hafler TRM6 mon sm
This is the 36 pages manual for Hafler TRM6 mon sm.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Hafler TRM6 mon sm (Ocr-read)
Page 1
Declaration of Conformity Application of Council Directive: 73/23/EEC (low voltage directive) Standard(s) to which Conformity is Declared: EN55103-1 EN55103-2 EN60065 (safety) ManufacturerÕs Name: Hafler ManufacturerÕs Address: 546 South Rockford Drive, Tempe, Arizona 85281, U.S.A. ImporterÕs Name: _______________________________________________________ ImporterÕs Address: _______________________________________________________ Type of Equipment: 2-channel Audio Power Amplifier/Speaker Model No.: TRM6 Serial Number: Year of Manufacture: 1998 1999 2000 2001 2002 I, the undersigned, hereby declare that the equipment specified above conforms to the above Directive(s) and Standard(s) Place: Hafler 12/01/98 Date: James C. Strickland, VP Engineering
Page 2
TRM6 Free Field Frequency Response55Hz-21kHz, ±2dB Peak Acoustic Output³119dB (per pair w/music @ 1m) Total Harmonic Distortion (THD)<0.5%, 150Hz-21kHz (90dB @ 1m on axis) High Frequency Driver1" (25mm) Vifa Soft Dome Low Frequency Driver6.5" (165mm) Polypropylene Cone/ Inverted Nitrile Rubber Surround Magnetically Shielded Cabinet0.26 ft 3 (7.3 liters) Vented Front Panel:Power Switch System LED (Power/Clip/Thermal) Rear Panel:XLR Balanced Input RCA Unbalanced Jack Unbalanced/Balanced DIP Switch Input Sensitivity DIP Switches Bass Rolloff DIP Switches Bass Shelving DIP Switches Treble Shelving DIP Switches IEC Standard Line Input / AC Line Fuse Dimensions8.875"W x 13.25"H x 11.50"D (22.54cm x 33.65cm x 29.21cm) Net Weight23 lbs. (10.43kg) A MPLIFIER S ECTION Power RatingFTC (20Hz-20kHz, 0.1% THD) 35 Watts RMS @ 6 ohms (high frequency) 50 Watts RMS @ 4 ohms (low frequency) Signal-to-Noise>100dB CMRR>70dB typical @ 1kHz Input Impedance47kW per phase balanced, 47kW unbalanced Input Sensitivity Range500mV to 3V (unbalanced) 275mV to 1.5V (per phase balanced) (+4dB, +1dB, Ð2dB, Ð5dB, Ð8dB, Ð11dB) Gain+33dB max. to +18dB min. Power ConsumptionIdle Power: 11W / 150mA @ 115 VAC (both channels driven) Idle Power: 11W / 75mA @ 230 VAC Normal Operation: 55W / 600mA @ 120 VAC Normal Operation: 54W / 310mA @ 230VAC Full Power: 139W / 1.37A @ 120VAC Full Power: 130W / 680mA @ 230VAC CROSSOVER S ECTION Crossover Frequency3.2kHz Crossover Slope24dB/octave Linkwitz-Riley Subsonic FilterSelectable 30Hz or 60Hz @ 12dB/octave Bass Shelving30Hz to 200Hz, ±4dB (+4dB, +2dB, 0dB, Ð2dB, Ð4dB) Treble Shelving5kHz to 20kHz, ±4dB (+4dB, +2dB, 0dB, Ð2dB, Ð4dB) P ERFORMANCE S PECIFICATIONS Ð i Ð Specifications are subject to change without notice. Frequency Response @ 1m on axis Horizontal Polar ResponseEnergy Time Curve Dimensions Side View Front View 13.25Ó 8.875Ó 11.50Ó
