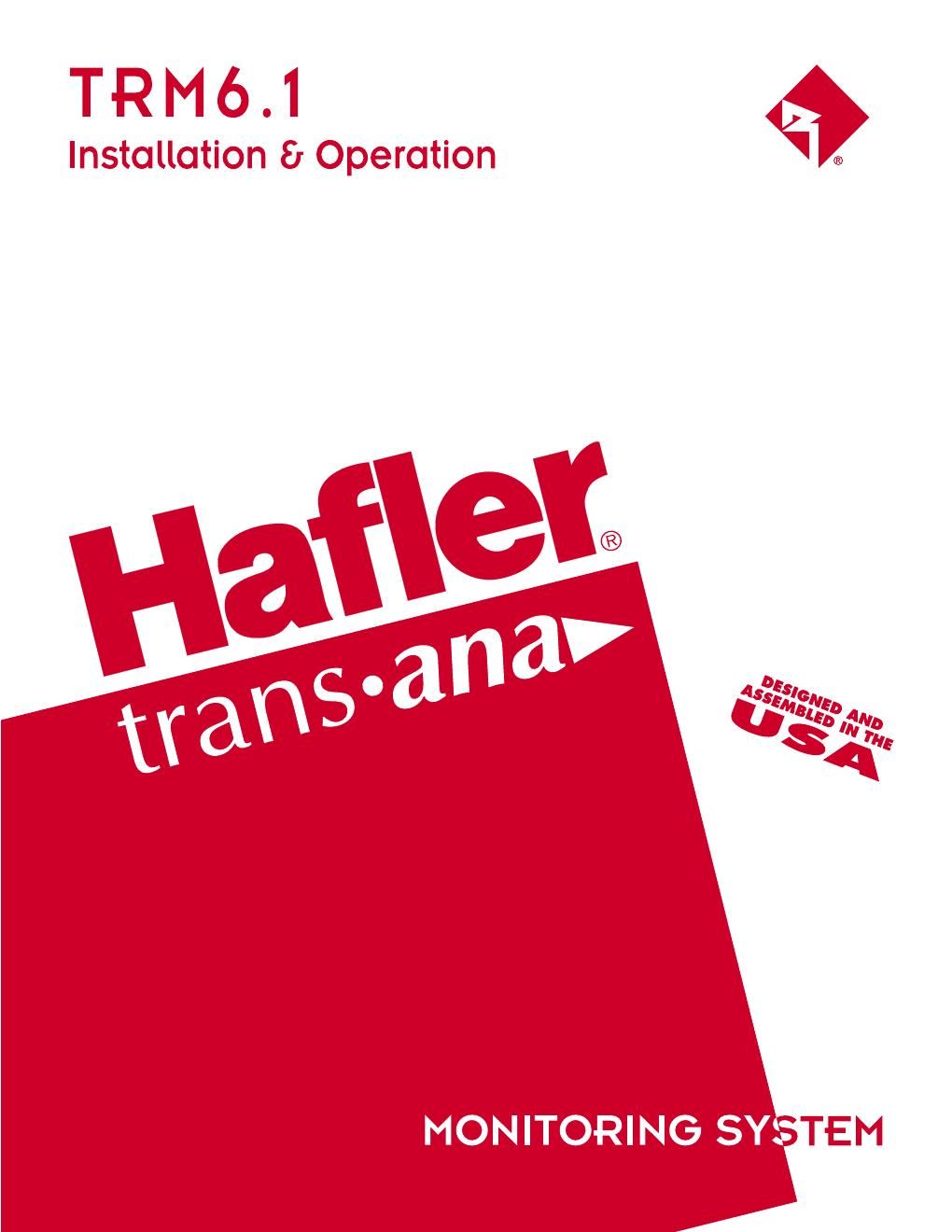

Hafler TRM6 1 pwrmon sm
This is the 36 pages manual for Hafler TRM6 1 pwrmon sm.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Hafler TRM6 1 pwrmon sm (Ocr-read)
Page 1
Declaration of Conformity Application of Council Directive: 73/23/EEC (low voltage directive) Standard(s) to which Conformity is Declared: EN55103-1 EN55103-2 EN60065 (safety) Manufacturers Name: Hafler Manufacturers Address: 546 South Rockford Drive, Tempe, Arizona 85281, U.S.A. Importers Name: ________________________________________________________ Importers Address: ________________________________________________________ Type of Equipment: 2-channel Audio Power Amplifier/Speaker Model No.: TRM6.1 Serial Number: Year of Manufacture: 1998 1999 2000 2001 2002 I, the undersigned, hereby declare that the equipment specified above conforms to the above Directive(s) and Standard(s) Place: Hafler 12/01/98 Date: James C. Strickland, VP Engineering
Page 2
TRM6.1 Free Field Frequency Response 55Hz–21kHz, ±2dB Peak Acoustic Output ≥119dB (per pair w/music @ 1m) Total Harmonic Distortion (THD) <0.5%, 150Hz–21kHz (90dB @ 1m on axis) High Frequency Driver 1" (25mm) Vifa Soft Dome Low Frequency Driver 6.5" (165mm) Polypropylene Cone/ Inverted Nitrile Rubber Surround Magnetically Shielded Cabinet 0.26 ft3 (7.3 liters) Vented Front Panel: Power Switch System LED (Power/Clip/Thermal) Rear Panel: XLR Balanced Input RCA Unbalanced Jack Unbalanced/Balanced DIP Switch Input Sensitivity DIP Switches Bass Rolloff DIP Switches Bass Shelving DIP Switches Treble Shelving DIP Switches IEC Standard Line Input / AC Line Fuse Dimensions 8.875"W x 13.25"H x 11.50"D (22.54cm x 33.65cm x 29.21cm) Net Weight 23 lbs. (10.43kg) AMPLIFIER SECTION Power Rating FTC (20Hz–20kHz, 0.1% THD) 35 Watts RMS @ 6 ohms (high frequency) 50 Watts RMS @ 4 ohms (low frequency) Signal-to-Noise >100dB CMRR >70dB typical @ 1kHz Input Impedance 47kΩper phase balanced, 47kΩunbalanced Input Sensitivity Range 500mV to 3V (unbalanced) 275mV to 1.5V (per phase balanced) (+4dB, +1dB, -2dB, -5dB, -8dB, -11dB) Gain +33dB max. to +18dB min. Power Consumption Idle Power: 11W / 150mA @ 115 VAC (both channels driven) Idle Power: 11W / 75mA @ 230 VAC Normal Operation: 55W / 600mA @ 120 VAC Normal Operation: 54W / 310mA @ 230VAC Full Power: 139W / 1.37A @ 120VAC Full Power: 130W / 680mA @ 230VAC CROSSOVER SECTION Crossover Frequency 3.2kHz Crossover Slope 24dB/octave Linkwitz-Riley Subsonic Filter Selectable 30Hz or 60Hz @ 12dB/octave Bass Shelving 30Hz to 200Hz, ±4dB (+4dB, +2dB, 0dB, -2dB, -4dB) Treble Shelving 5kHz to 20kHz, ±4dB (+4dB, +2dB, 0dB, -2dB, -4dB) P ERFORMANCE S PECIFICATIONS – i – Specifications are subject to change without notice. Frequency Response @ 1m on axis Horizontal Polar Response Energy Time Curve Dimensions
