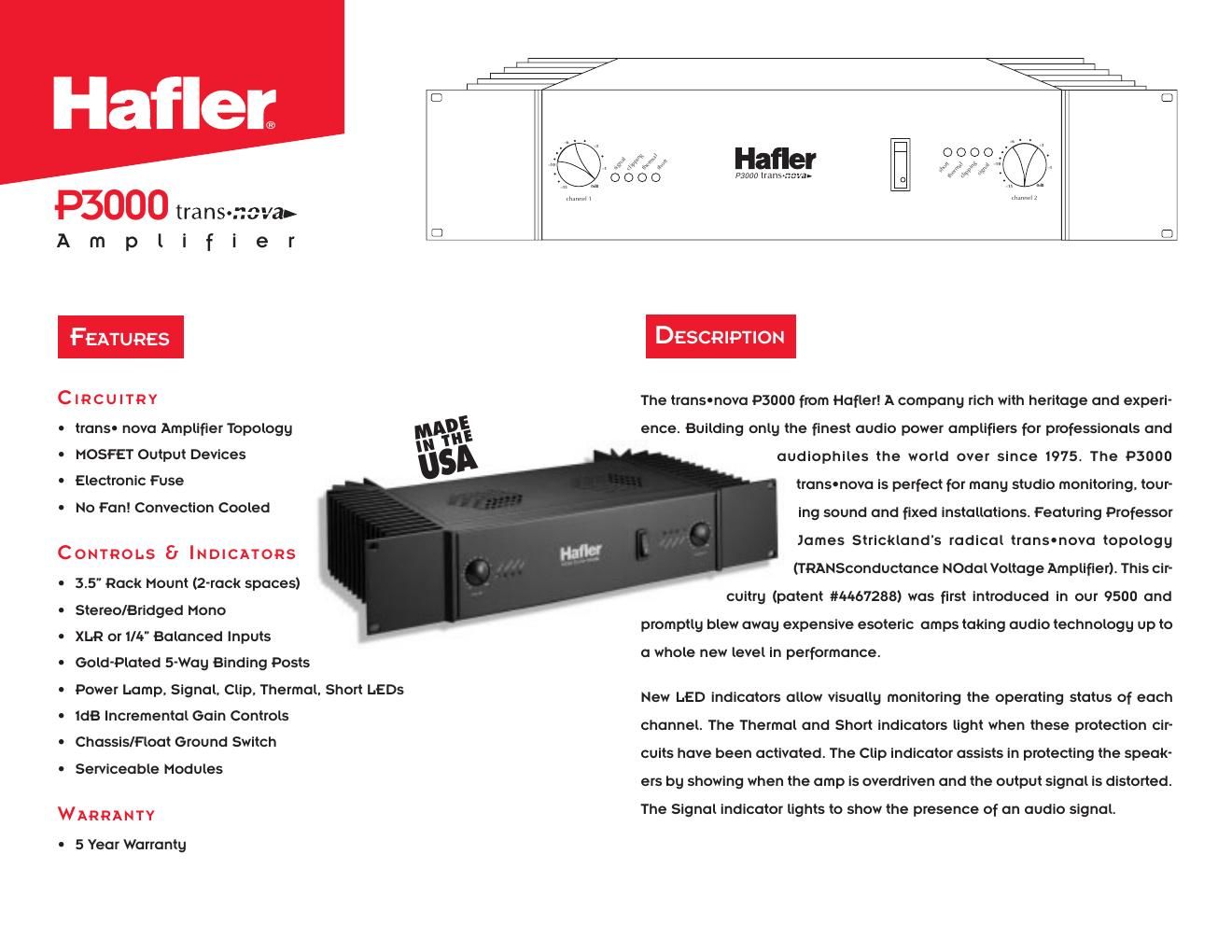

S PECIFICATIONS P3000 Power Rating ...................................................................... 150 Watts/channel @ 8W 200 Watts/channel @ 4W 400 Watts bridged/mono @ 8W Total Harmonic Distortion (THD) ................................................ <0.2% (20Hz-20kHz) Signal-to-Noise .......................................................................... 100dB ÒAÓ Weighted Full Power Bandwidth .................................................... 0.15Hz to 300kHz (+0/Ð3dB) Slew Rate ....................................................................................................... 100V/ms CMRR (Common Mode Rejection Ratio) .............................................. 75dB at 1kHz Input Impedance ........................................................... 47kW per phase balanced Gain ................................................................................... +14dB min. / +29dB max. Input Sensitivity Range ...................... 620mV to 3.5V (@ 8W) per phase balanced 505mV to 2.8V (@ 4W) per phase balanced Damping Factor ..................................................................................... 400 (to 1kHz) 200 (to 10kHz) 18 (to 100kHz) Power Consumption ............................................ 120W / 1.0A @ 120VAC (idle power) 350W / 2.9A @ 120VAC (1/8 power Ð 8W) 600W / 5.0A @ 120VAC (max. power Ð 8W) Indicators .................................................. Power, Signal, Clipping, Thermal, Short Dimensions ...................................................... 19ÓW x 9 7Ú8ÓD x 3 1Ú2ÓH (2-rack spaces) (48.26cm x 25.08cm x 8.89cm) Net Weight ........................................................................................ 23 lbs. (10.43kg) Amplifier P3000 ¨ A RCHITECT ÕS AND E NGINEER ÕS S PECIFICATIONS The audio power amplifier shall be solid state design employing 8 lateral power MOSFET output devices. It shall be constructed on a 16 gauge steel chassis utilizing convection cooling and be technician friendly using modular construction. Each channel shall be rated for a minimum of 150 watts into an 8 ohm load and 200 watts into a 4 ohm load with both channels driven. In bridged mono mode, the amplifier shall produce at least 400 watts into an 8 ohm load. A switch shall be provided for stereo or bridged mono operation and all power ratings shall be measured from 20Hz-20kHz with less than 0.2% THD. The amplifierÕs back panel shall provide Balanced inputs via combination XLR and 1/4Ó phone jacks. The back shall also utilize gold-plated 5-way binding posts for output connectors and a switch to isolate or connect the signal ground to the chassis ground. The amplifier shall include a 3-wire grounded AC line cord and UI power transformer operating on 120V/60Hz AC mains. An optional transformer for 230V 50-60Hz operation shall be available. The amplifierÕs front panel shall provide level controls with optional security covers. The front shall also incorporate a lighted main power switch and indicators for each amplifier channel. The indicators shall display signal present when 30mV of signal is detected, signal clipping when distortion rises above 1%, thermal protection should the heatsink temperature become exces- sive, and short circuit protection in case a problem on the speaker system arises. The amplifier shall fit standard 19Ó EIA rack mounting requirements utilizing 2- rack spaces. The dimensions shall be 19Ó Wide, 9 7Ú8Ó Deep, 3 1Ú2Ó High, and be finished in black with a net weight of 23 pounds. It shall be a Hafler P3000. ¥ Use CH 1 Input ONLY ¥ Set CH 2 Gain to Max ¥ Set Output Level with CH 1 Gain Control A Division of Rockford Corp. Tempe, AZ 85281 U.S.A. Made in the U.S.A. XLR Connections 3 2 1 + Ð Phone Connections + Ð ¨ 115V ~ 60Hz CH 1 (Mono) CH 1 Ð + 4-8W CH 2 Ð +Ð + Mono P3000 250 V T4A CAUTION: For continued protection from risk of fire, replace only with same type and rating of fuse. CH 2 Audio Ground Chass. Float Mono 2-Ch Mono Output: 8W4-8W WARNING: DO NOT REMOVE COVERTO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE. ! CAUTIONRISK OF ELECTRIC SHOCK DO NOT OPEN PUSH PUSH U L¨ U L¨ C
