Grundig Yacht Boy 500 Owners Manual

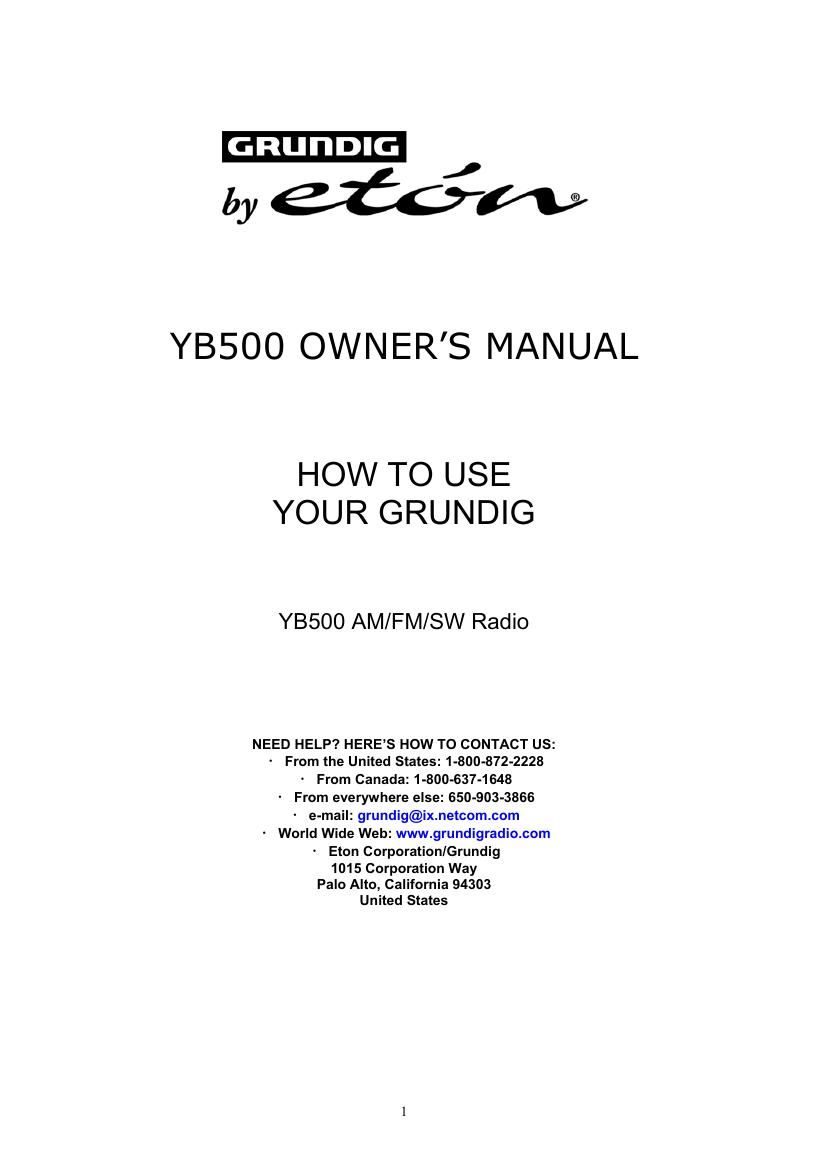

This is the 29 pages manual for Grundig Yacht Boy 500 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Grundig Yacht Boy 500 Owners Manual (Ocr-read)
Page 1
2 Contents Yacht Boy 500 - L C D A T A M O N I T O R ( D i s p l a y )............................................................................................................. 3 Your Unit at a Glance.......................................................................................................................................................... 4 Aerials................................................................................................................................................................................................... 6 Power Supply.............................................................................................................................................................................. 7 AC (Mains) Operation........................................................................................................................................................... 7 Battery Operation................................................................................................................................................................... 7 Battery Check.......................................................................................................................................................................... 7 Data Protection........................................................................................................................................................................ 8 Reset Button............................................................................................................................................................................. 8 User Guide Via the Menu............................................................................................................................................................. 9 General Operation......................................................................................................................................................................... 10 Key-protect............................................................................................................................................................................. 10 LOCKED.................................................................................................................................................................................... 10 Direct Entries......................................................................................................................................................................... 10 Hints and Error Messages................................................................................................................................................. 11 Display Illumination............................................................................................................................................................. 12 The Volume............................................................................................................................................................................. 12 The Tone.................................................................................................................................................................................. 12 Waveband Selection............................................................................................................................................................ 12 ROM Table of the Yacht Boy 500........................................................................................................................................ 13 Selecting Frequencies......................................................................................................................................................... 13 Calling Up ROM Table Memory Locations............................................................................................................................. 14 Step by Step into the World of Shortwave Reception............................................................................................................. 15 Tuning to Stations with the TUNE A/V buttons.................................................................................................................. 16 Tuning to Stations......................................................................................................................................................................... 17 Entering a Meter Band................................................................................................................................................................. 18 Storing in Memory G e n e r a l......................................................................................................................................................... 19 What can You Store?........................................................................................................................................................... 19 Is the Frequency Tuned to Already Stored in Memory?........................................................................................ 19 Checking the Desired Station Memory Position........................................................................................................ 20 Programming a Station Memory Location................................................................................................................... 20 Entering Abbreviations....................................................................................................................................................... 21 Calling Up Stored Stations................................................................................................................................................ 21 The MEMORY Button........................................................................................................................................................... 22 Clearing an Occupied Memory Position........................................................................................................................ 22 Going to Sleep to Radio.............................................................................................................................................................. 23 The Clock........................................................................................................................................................................................... 24 Setting the Clock.................................................................................................................................................................. 24 Setting the Clock.................................................................................................................................................................. 24 Clock Time Indication TIME I/II...................................................................................................................................... 24 Automatic Functions Timer ½..................................................................................................................................................... 25 Programming Switching Times Switching Times 1/2.............................................................................................. 25 Checking the Switching Times 1 /2...............................................................................................................................26 Automatic Switching On and Off.................................................................................................................................... 26 Automatic Functions.................................................................................................................................................................... 27 Special Functions on FM........................................................................................................................................................... 28 Special Functions on AM.......................................................................................................................................................... 29
