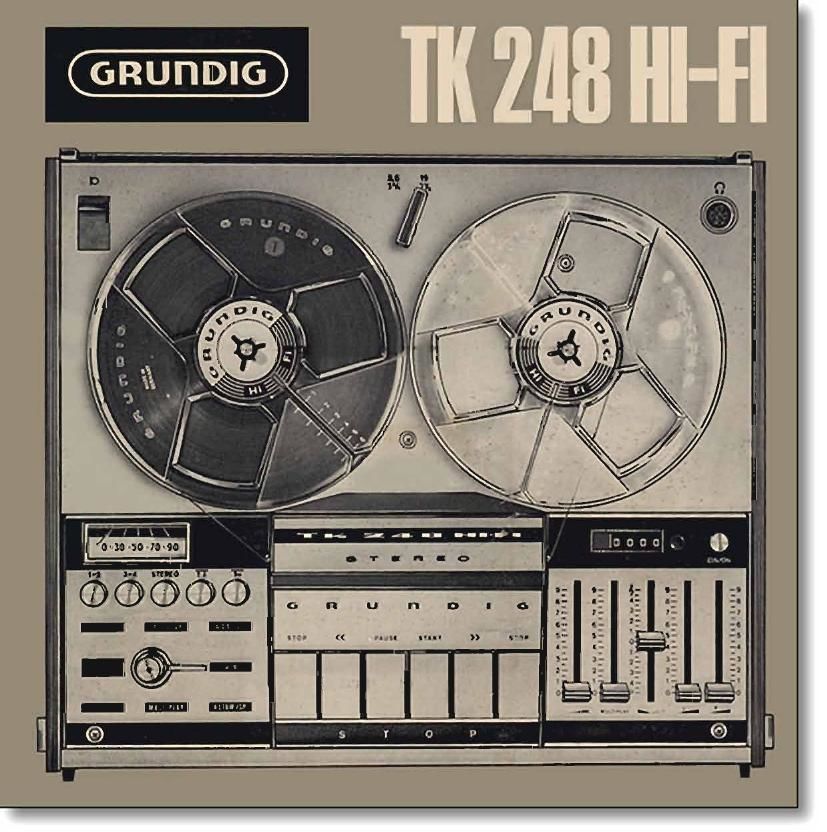

TK 248 HiFi

Your TK 248 HiFi is fully transistorized and ready to use immediately after
switching on. It is a four-track machine and operates at two speeds.
Maximum playing time (4 x 2 = 8 hours). The TK 248 may be operated in
horizontal and in vertical position and is automatically switched off when
the tape has come to the end. The built-in automatic recording level
control which may be set to music or speech, makes recordings of highest
quality. For special purposes (e. g. to fade in or to fade out with a mixer
unit) the automatic facility can be switched off. For the connection of a
microphone, radio. telephone adaptor and record player separate con-
necting sockets are provided.
The radio input socket is combined with the output for external amplifiers.
When connected to a radio receiver or HiFi amplifier. one lead connection
is therefore sufficient to make recordings or to play back through the
radio or amplifier.
Two transformerless complementary output stages of 4 Watts each are
fitted. They feed the 4 built-in high quality loudspeakers. There are also
2 connecting sockets for extension loudspeakers or earphones. All
recordings can be monitored thr0ugh the output stages. In addition, your
TK 248 enables you to make effect recordings such as synchronous.
multisynchronous and echo recordings and permits via tape monitoring
at mono recordings. The functions start/stop can be remote controlled
by means of a foot switch.
For special purposes the following two supplementary kits may be
suppHed:
1. Dia-pilote-tone head for automatic remote control of projectors in
connection with a control unit.
2. Conversion kit for 60 Hz operation.
On page 2/40 you will find a vast range of accessories.
