Page 1

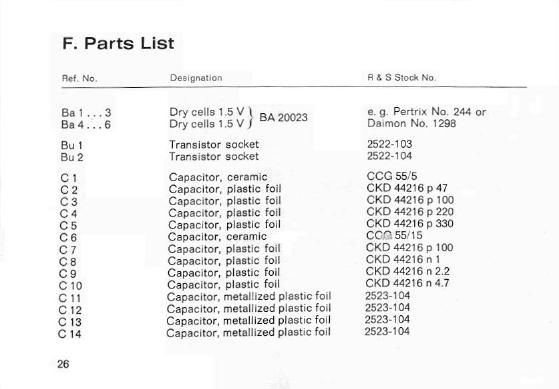

F. Parts List
11er Not Designnlmn a a 8 Stock No
Hal .1. 3 Dry cells 1.5 V l e. g, Pertrix No. 244 or
BaA...6 Dry cells 115V! BA20023 Daimon No, 1298
Bu 1 Transistor socket 2522-103
Bu 2 Transistor socket 2522-104
C I Capacitor, ceramic CCG 55/5
0 2 Capacitor. plastic foil CKD 44216 p 47
C 3 Capacitor, plastic foil CKD 44216 p 100
C 4 Capacitor, plastic foil CKD 44216 p 220
C 5 Capacitor. plastic foil CKD 44216 p 330
C 6 Capacitor. ceramic COD. 55/15
C 7 Capacitor. plastic foil CKD 44216 p 100
C 8 Capacitor. plastic foil CKD 44216 n 1
C 9 Capacitor, plastic foil CKD 44216 n 22
C 10 Capacitor. plastic foil CKD 44216 n 4.7
C ll Capacitor. metallized plastic foil 2523-104
C 12 Capacitor. metallizsd piastlc foil 2523-104
C 13 Capacitor, metalllzed plastic foil 2523-104
C 14 Capacitor, metallized plastic foil 2523-104
