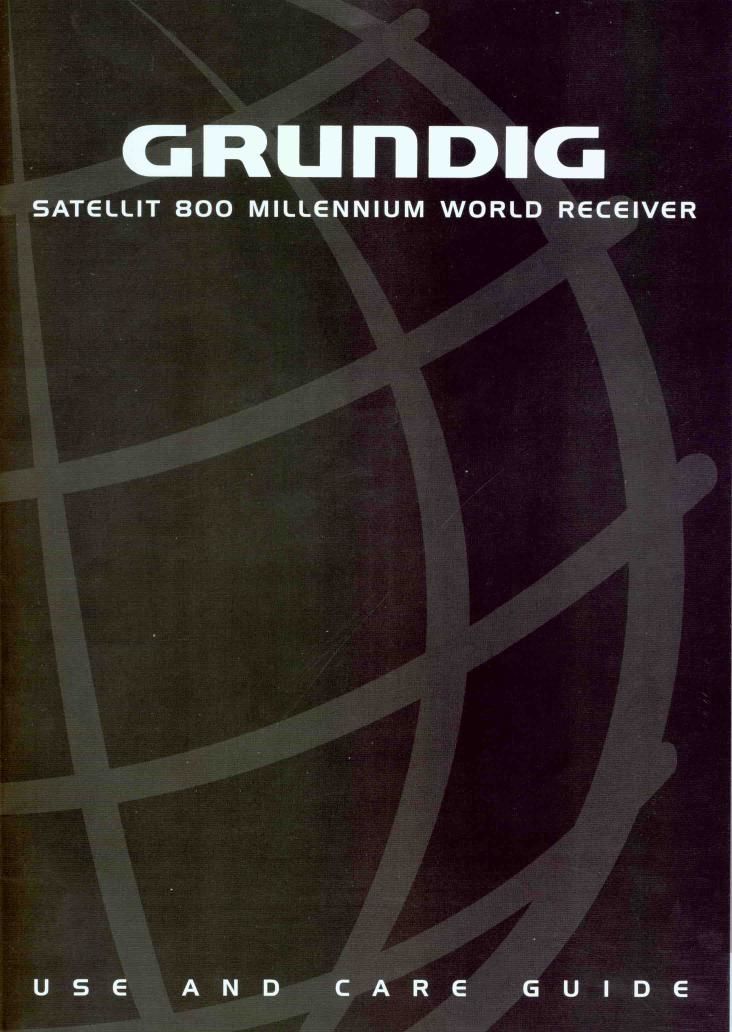

Grundig Satellit 800 Owners Manual
This is the 30 pages manual for Grundig Satellit 800 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Grundig Satellit 800 Owners Manual (Ocr-read)
Page 1
FRONT PANEL DESCRIPTION (See page 12) LCD DISPLAY DESCRIPTION (See page 14) REAR PANEL DESCRIPTION (See Paee 15) 3
Page 2
SPECIFICATIONS Frequency Range: 100 to 30.000 kHz (0.1 to 30 M Hz). Line Audio Outputs: Stereo left and right. 87 to 108 M Hz, 118 to 137 M Hz. 300 mV. 4.7K Ohms for each output. Sensitivity - SSB AM . USB. LSB modes (0.1 to 30 M Hz). AM mode only for 118 to 137 M Hz. FM mode only for 87 to 108 M Hz. Headphone Jack: DC Pow er Requirements: 1/8 inch (3.175mm) stereo/mono ty pe. Input: 7-10 VDC 0 1 Amp. supplied from AC ADAPT ER, ex ternal DC Pow er (10 dB S+N/N): Less than 0.5 uV, 0.1 to 30 M Hz. Supply or 5.7 to 9.0 VDC supplied by (6) Sensitiv ity - AM internally mounted "D" cell (1.5V) batteries (not supplied). (10 dB S+N/N): (1000 Hz. 30% M od): Less than 2.0 uV. 0.1 to 30 M Hz. Less than 4.0 pV, 118 to 137 M Hz. Current requirements Sensitiv ity - FM (approx imate) from 9.0 VDC Supply or (20 dB S/N) (monaural): Frequency Stability Less than 4 uV, 87 to 108 M Hz. 10 ppm, 0C to 50C Batteries w ith 1/4 W average Audio Output: Mode Dependent: 510 mA minimum w ith lamp off, Frequency Accuracy : Better than 100 Hz. c 25' C Operating T emperature: 830 mA max imum w ith lamp on. 0C to +50C Selectivity - SSB. AM: 6 kHz c -6 dB, less than 12 kHz 0 -60 dB. 4 kHz c -6 dB. less than 9 kHz c -60 dB. 2.3 kHz c -6 dB, less than 5 kHz c -60 dB. Weight: 14.55 lbs. (6.6 kg). including AC ADAPT ER, (batteries NOT included). IF Frequenc y - SSB. AM: 1st IF. 55.845 M Hz. Size - Width: 20 -7/8" (53.575 cm). FM: Image Rejection: IF Rejection. IP3 - Intercept Point 2nd IF, 455 kHz. 1st IF. 10.7 M Hz (Single Conv ersion). Greater than 60 dB. 0.1 to 30 M Hz Greater than 60 dB, 118 to 137 M Hz. Greater than 50 dB. 87 to 108 M Hz Greater than 80 dB. 55.845 M Hz. Greater than 80 dB. 455 kHz. Height: Depth: Supplied AC ADAPT ER Input: Output: 9-1/4" (23.495 cm) w ith handle retracted. 8 1/2" (21.59 cm) including front handles. 120-230 VAC auto sw itchable. 50/60 Hz with dual sw itchable plug w ires. 9 VDC @ 1500 mA max imum. Center conductor of connector is positiv e. (@± 50 Ohm Ant. Input) (Attenuator Off): AGC Performance Internal Antenna External Antenna Inputs External Speaker Output Pow er to Internal Speaker: Internal Speaker Greater than +10 dBm @ 100 kHz spacing. Greater than -20 dBm Q 5 kHz spacing. Threshold: 1 0 uV Attack T ime. 1 mSec. Release T ime: SLOW . 3 sec FAST . 300 mSec Less than 6 dB change in audio output for 90 dB RF input change (referenced from the AGC threshold point plus 3 dB). 56 3/4" (1.414 meters) telescoping w hip (for use on all bands). Ferrite rod antenna (For use from 100 kHz through 1800 kHz) 0 1 to 30 M Hz. 50 Ohm SO-239 connector or 2 terminal compression connector for 500 Ohm input w ith ground 87 to 108 M Hz and 118 to 137 M Hz 75 Ohm "F" ty pe connector 1 W att each nominal into tw o 4 Ohm speakers with 9 VDC supply voltage Ex ternal jack is 1/4" (6.35 mm) and tw o-w ay for stereo output 2 W atts nominal w hen neither headphones nor ex ternal speakers are plugged in 4'(10 16 cm), 4 Ohms. 4
