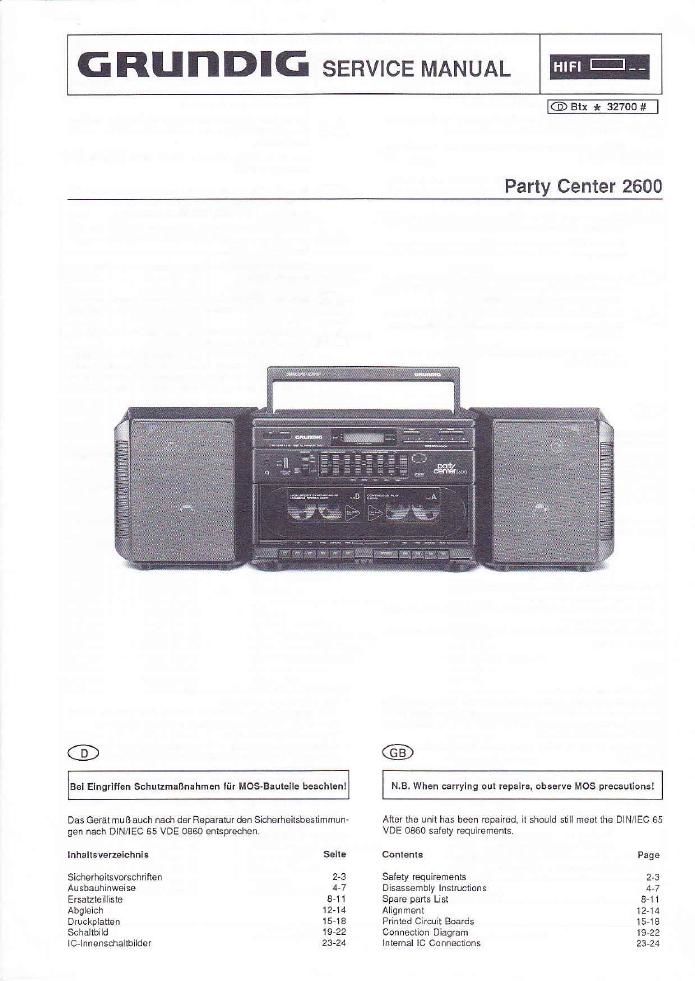

Page 1

G RUI'IDIG SERVICE MANUAL

® le * 32700 #

Party Center 2600

CD)

Eel Elngvlflen SchuumaBnahmen it MOS-Bauleile beachteni

N.B. When carrylng out repairs, observe MOS precautionsl

Des Gerét muB auch nach der Reparamr den SiCherheitsbeslimmuw
gen nach DIN/IEC 65 VDE 0850 entsprechen.

inhaltsverzelchnll Selle
Sicherheitsvorschrilten 2-3
Ausbauhinweise 4-7
Ersatzteilliste 5-11
Abgleich 12-14
Druckplatten 15-18
Schallbild 19-22

IC-Innensmaltbilder 23-24

After the unit has been repaired. it shouid still meet the DIN/IEC 65
VDE 0860 safety requirements.

Contents Page
Safety requirements 2-3
Disassembly Instructions 4-7
Spare parts List 8-11
Alignment 12-14
Printed Cirmit Boards 15-18
Connection Diagram 19-22
Internal IC Connections 23-24
