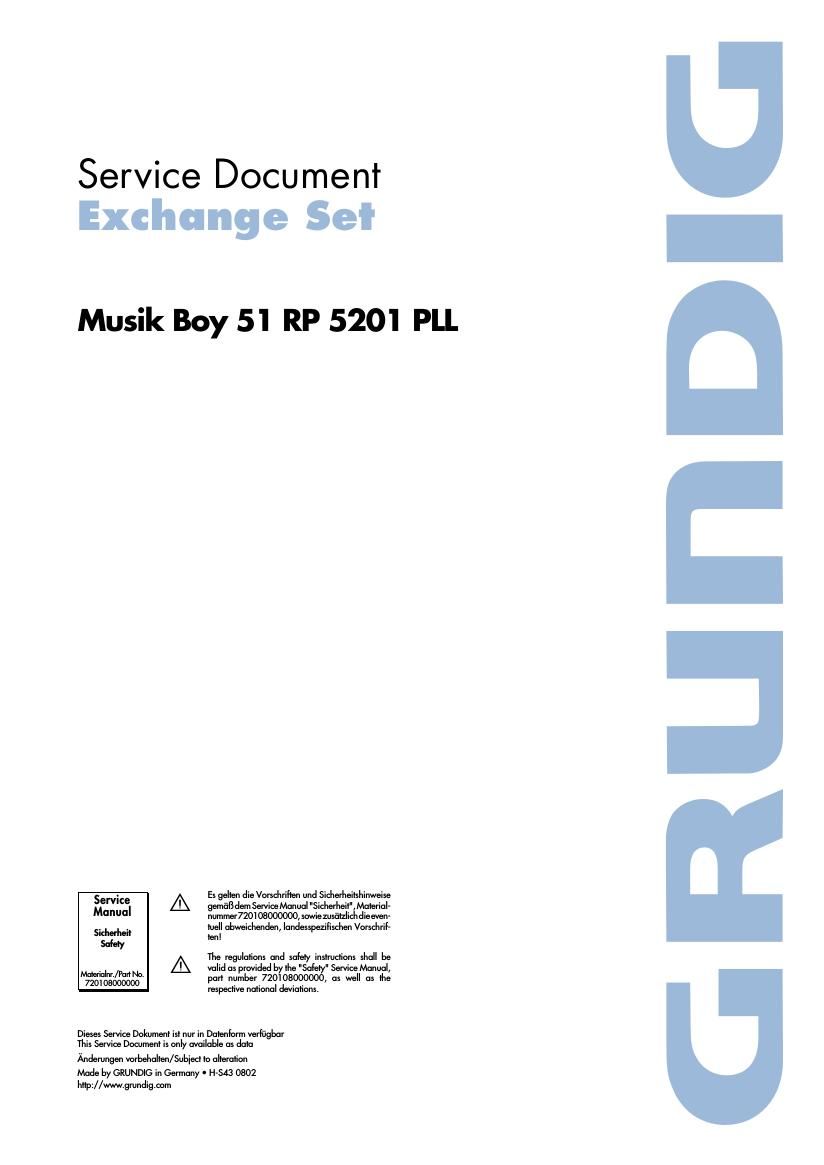

Grundig MusiK Boy 51 RP 5201 Service Manual
This is the 8 pages manual for Grundig MusiK Boy 51 RP 5201 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Grundig MusiK Boy 51 RP 5201 Service Manual (Ocr-read)
Page 2
GRUI'IDIG
Alignment Information
Model : GRUNDIG RP5201PLL
Ref. No. : NON
Date : 18 - 06 - 2002
A) FM Radio section
1) RF VOLTAGE
BAND SIGNAL OUTPUT SET RADIO ADJUST ADJUST FOR REMARK
FM - - TP5,2 875MHz L2 2 .1~ 2.3V high end 7.5 ~8V
2) FM RF
INPUT SIGNAL OUTPUT SET RADIO ADJUST ADJUST FOR REMARK
TP1,2 90MHz Speaker 90MHz L3 Max. o/p Vol. at max. position
TP1,2 106MHz " " 106MHz TCl " " " "
3) 75KHZ CRYSTAL
OUTPUT ADJUST ADJUST FOR REMARK
TP3,4 TC2 75K 10HZ
Note :
1. Use digital meter to measurement each required voltage on above items
2. Use weak signal in RF alignment
3. Radio & LCD board must be connected before alignment
4. Use the frequence counter to measurement each required frequence on about
items.
Musik Boy 51 RP 5201 PLL
