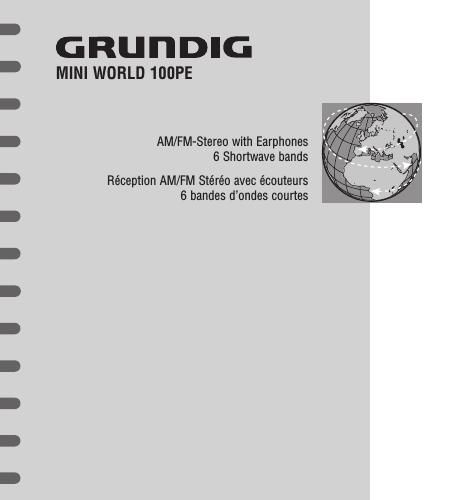

Grundig MiniWorld 100 PE Owners Manual
This is the 4 pages manual for Grundig MiniWorld 100 PE Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Grundig MiniWorld 100 PE Owners Manual (Ocr-read)
Page 1
1.Control Locations Telescopic antenna for FM/SW Band selector Frequency tuning dial scale display Tuning knob Volume and power on/off switch Earphone jack Battery compartment (on the back) LED tuning indicator Removable belt clip (on the back)1 2 3 4 5 6 7 8 9 1.Emplacement des commandes Antenne tŽlescopique pour FM/SW (Ondes courtes) SŽlecteur de bande Bouton de frŽquence avec affichage dÕŽchelle Bouton dÕaccord Bouton Arrt/Marche et Volume Fiche de jack pour Žcouteurs Logement des piles (au dos) LED indicatrice dÕaccord Clip dÕaccrochage pour ceinture amovible (au dos)1 2 3 4 5 6 7 8 9 1 2 3 5 7 9 8 6 4
Page 2
2.Using the radio ¥ Install 2 AA size batteries into the battery compartment ¥ Turn on the radio, adjust the volume to the desired listening level. ¥ Select the required frequency range with the band selector. ¥ Select the desired radio station by turning the tuning knob. When a strong signal is found, the tuning LED indictor will light. ¥ -- For AM, the set is provided with a built-in aerial which can be directd by turning the whole set ¥ -- For FM/SW, the telescopic aerial must be pulled out. ¥ FM stereo available with earphones. 3.Specifications 1. Frequency range: FM 88 - 108MHz AM 525 - 1710MHz SW1 (49m) 5.80 - 6.40MHz SW2 (41m) 6.90 - 7.50MHz SW3 (31m) 9.40 - 10.00MHz SW4 (25m) 11.65 - 12.15MHz SW5 (19m) 15.00 - 15.65MHz SW6 (16m) 17.50 - 18.14MHz 2. Power output: 100mw 3. Speaker: D45mm 0.25mw 4ohm 4. Power supply: 2AA batteries (batteries not included) DC 3v 5. Earphone: 8-32 ohm. D3.5 plug 6. Dimensions: 4 1/2ÓH x 2 5/8ÓW x 13/16ÓD 3.SpŽcifications 1. Gammes de frŽquences: FM 88-108MHz AM (ondes moyennes) 525-1710MHz SW1 (49m)( ondes courtes ) 5.80-6.40MHz SW2 (41m) 6.90-7.50MHz SW3 (31m) 9.40-10.00MHz SW4 (25m) 11.65-12.15MHz SW5 (19m) 15.00-15.65MHz SW6 (16m) 17.50-18.14MHz 2. Puissance de sortie: 100 mW 3. Haut-parleur: Diam. 45 mm, 0.25 mW, 4ohm 4. Alimentation: 2 piles AA(piles non fournies), 3 Vcc 5. ƒcouteurs: 8-32 ohm, oreillette: diam. 3.5 6. Dimensions: 4-1/6po.H x 2- 5/8po.L x 13/16Ópo.P 2.Mode dÕemploi de la radio ¥ Installer deux (2) piles AA dans le logement des piles; ¥ Mettre la radio en marche, rŽgler le volume au niveau souhaitŽ pour lÕŽcoute; ¥ Choisir la gamme de frŽquences nŽcessaire `a lÕaide du sŽlecteur de bande; ¥ Choisir la station de radio dŽsirŽe `a lÕaide du bouton dÕaccord. LorsquÕon dŽtecte un signal fort, la LED de lÕindicateur dÕaccord sÕallume; ¥ -- Pour les ondes moyennes AM, le poste est fourni avec une antenne incorporŽe que lÕon ori- ente en tournant le poste dans la bonne direction. ¥ -- Pour (la modulation de frŽquence ou les ondes courtes (FM/SW), il faut dŽployer lÕan- tenne tŽlescopique. ¥ On peut sÕaccorder sur la band FM stŽrŽo `a lÕaide du casque dÕŽcoute.
