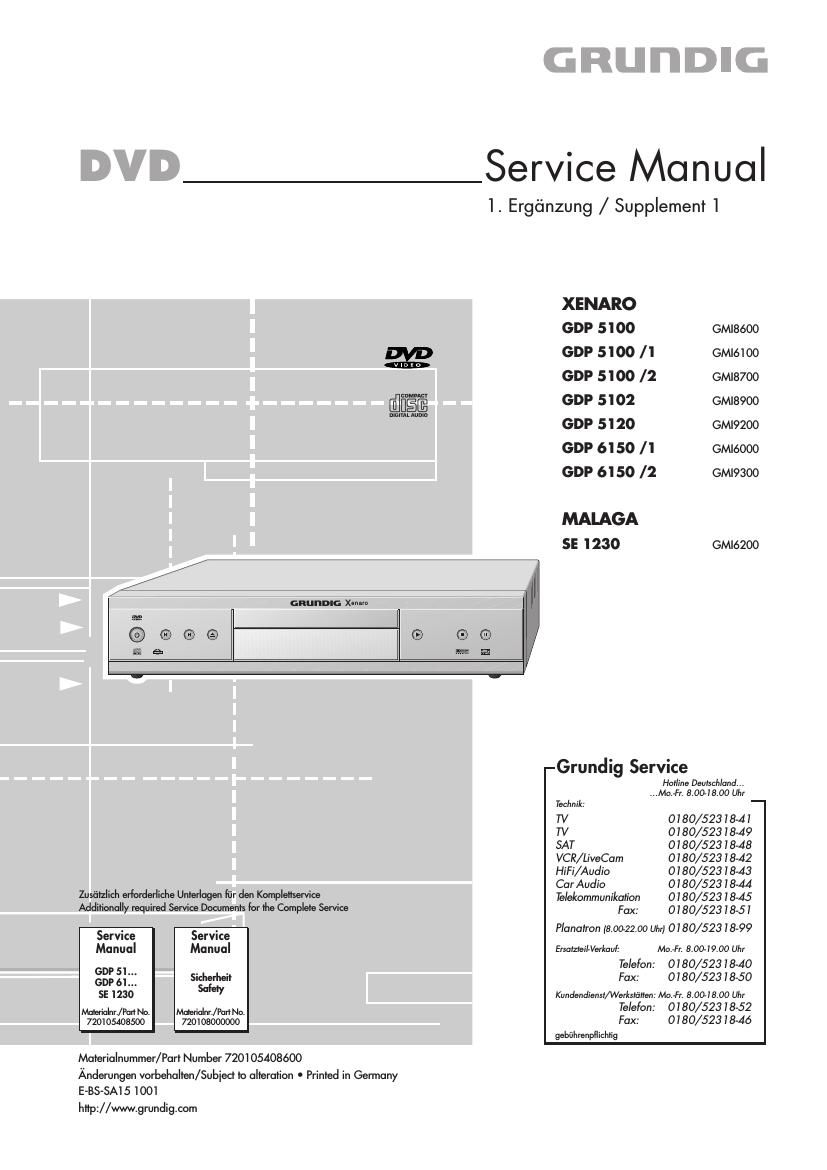

Grundig Malaga SE 1230 Service Manual
This is the 11 pages manual for Grundig Malaga SE 1230 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Grundig Malaga SE 1230 Service Manual (Ocr-read)
Page 2
Allgemeiner Tall / General Section
Xenaro 7 GDP 51..., GDP 6150; Malaya 7 SE 1230
Es gelten die Vorschriften und Sicherheitshinweise
gemaB dem Service Manual "Sicherheit", Material-
nummer 720108000000, sowie zusatzlich die eventu-
ell abweichenden, landesspezifischen Vorschriften!
The regulations and safety instructions shall be valid
as provided by the "Safety" Service Manual, part
number 720108000000, as well as the respective
national deviations.
lnhaltsverzeichnis
Seite
Allgemeiner Teil 2...3
Einfuhrung ..... . 2
Gerateflbersicht . 3
Platinenabbildungen
- AudioNideo
Bedieneinheit
und Schaltplane 4...12
Digital-Platte ............ . 4
- Audio/Interface (P2) . 4
Analog-Platte .......... . 5
- AC3 ..... . 7
. 9
1
Explosionszeichnung
und Ersatzteilliste 13...15
Allgemeiner Teil
Einfflhrung
In dieser Service-ManuaI-Erganzung istdas GeratGDP512O derSerie
Xenaro GDP51.../6150 dokumentiert. Des Weiteren enthalt diese die
geanderten Schaltplane und Platinenabbildungen dergesamten Serie
Xenaro. Nahere Informationen entnehmen Sie bitte der Gerateflber-
sicht.
Hinweis:
Grundlage ftJr den Service sind tolgende Service Manuals:
- Service Manual Sicherheit, Materialnummer 720108000000
- Service Manual GDP51...l6150, Materialnummer 720105408500
Table of Contents
Page
General Section 2...3
Introduction ..
DVD Overview
Layout of PCBs
and Circuit Diagrams 4...1
Digital Board
- Audio/Interface (P2
Analog Board ........
- AC3 .......
- AudioNide
Keyboard Control
Exploded View and
Spare Parts List 13...15
General Section
Introduction
This Supplement Service Manual describes the DVD playerGDP5120
in the series Xenaro GDP51.../6150. In addition changed circuit
diagrams and PCB illustration of the series Xenaro are included. For
detailed information please see chapter DVD Overview.
Note:
Basic instructions for servicing are given in the following Service
Manuals:
- Service Manual Safety, Part Number 720108000000
- Sen/ice Manual GDP51...l6150, Part Number 720105408500
,,Do|by, ,,Do|by Pro Logic, ,,AC 3 ist gefertigt unter Lizenz von Dolby Laboratories
Licensing Corporation.
,,Do|by, ,,Dolby Pro Logic, ,,AC 3 und das DoppeI-D-Symbol Dfl sind Warenzei-
chen der Dolby Laboratories Licensing Corporation. Copyright 1992 Dolby
Laboratories, Inc. Alle Rechte vorbehalten.
Dolby, Dolby Pro Logic, AC 3" manufactured under license from Dolby
Laboratories Licensing Corporation.
Dolby, Dolby Pro Logic, AC 3 and the double-D symbol "DCI are trademarks of
the Dolby Laboratories Licensing Corporation. Copyright 1992 Dolby Laboratories,
Inc. All rights reserved.
_")
GFIUNDIG Service
