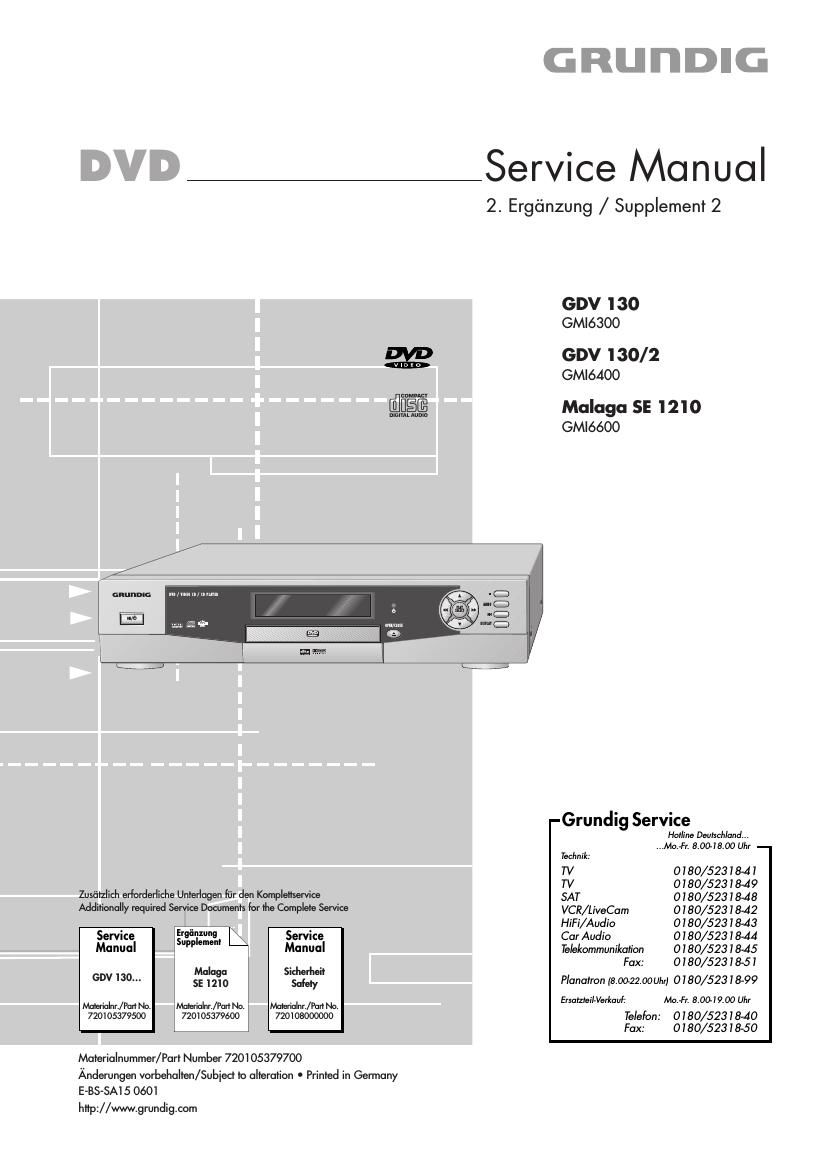

Grundig Malaga SE 1210 Service Manual

Page 2

Allgemeiner Teil / General Section

GDV130.../Malaga SE 1210

Es gelten die Vorschriften und Sicherheitshinweise
gemaB dem Service Manual "Sicherheit", Material-
nummer 720108000000, sowie zusatzlich die eventu-
ell abweichenden, landesspezifischen Vorschriften!

The regulations and safety instructions shall be valid
as provided by the "Safety" Service Manual, part
number 720108000000, as well as the respective
national deviations.

lnhaltsverzeichnis
Seite

Wichtige Hinweise ........................................................................... 2
IC-Blockdiagramm U 401 .
Chassisplatte ................
- Hauptschaltplan
- Steuereinheit
- AudioNideo..
- AudioNideo Decoder
- Interface
Bedieneinheit

Macaw-Swot»

F

Wichtige Hinweise

Diese Service-ManuaI-Erganzung enthalt folgende geanderte Plati-
nenabbildungen und zugehorige Schaltplane fiir:

GDV 130 ab Seriennummer 01526010520048456x:

- Bedieneinheit (erkennbar an der einseitig kaschierten Platine)
Materialnummer 275990200200

- Display U3 Materialnummer 759880565900

- Software (ab V6.34) MateriaInummer 275990172100

GDV 130 ab Seriennummer 01526010520044404x:
GDV 130/2 ab Seriennummer 01547240520017294x:
Malaga SE 1210 ab Seriennummer 01547560520014350x:
- Chassisplatte Materialnummer 275990107900

- IC U401 (ADV7170) Materialnummer 759880565800
- Software (ab V2.15) Materialnummer 275990171601

Unterden angegebenen Materialnummern konnen Siedie geanderten
Ersatzteile/Software fiber den ErsatzteiI-Service bestellen.

Allgemeiner Hinweis

Grundlage fiir den Service sind folgende Service Manuals:

- Sicherheit, Materialnummer 720108000000

- Sen/ice Manual GDV130, Materialnummer 720105379500

- Erganzung Malaga SE1210, Materialnummer 720105379600

Table of Contents

Page
Important Hints ................................................................................ 2
IC Block Diagram U 401 .
Chassis Board ...........
- Main Circuit Diagram
Control Unit .
AudioNideo .
AudioNideo Decoder
- Interface ............
Keyboard Control Uni

wam-tswom

Important Hints

This Service Manual supplement contains the following changed figures
of the printed circuit boards and the corresponding circuit diagrams for:

GDV 130

- Keyboard Control Unit (can be identified at the PCB with one clad
side only) Part number 275990200200

- Display U3 Part number 759880565900

- Software (from V6.34) Part number 275990172100

from serial number 01526010520048456x:

GDV 130
GDV 130/2
Malaga SE 1210

- Chassis Board
- IC U401 (ADV7170)
- Software (from V2.15)

from serial number 01526010520044404x:
from serial number 01547240520017294x:
from serial number 01547560520014350x:

Part number 275990107900
Part number 759880565800
Part number 275990171601

You can order the changed spare parts/software under the given part
numbers at the Spare Parts Service.

General Note

Basic instructions for servicing are given in the following Service
Manuals:

- Service Manual Safety, Part number 720108000000

- Sen/ice Manual GDV130, Part number 720105379500

- Supplement Malaga SE1210, Part number 720105379600

lC-Blockdiagramm / IC Block Diagram U401 (ADV 7170)

E van:

22 BM: A
:1 me a

Elva

2: mm

AwanrADvnn

PaFPrmFP

a v..
2. mm

m: VIEW
- (Not to Scale)

mm m
causawss mm
Vn INseRnoN INSERTION vuv m
aLucK mu m
a mm
mm l-¢
coLuR . g , mammal: .n
no men.
DATA + LUMINANCE
mo svm: "fpomon Hm
' ' I to
men m 7* m, +~pnomummz
v u sum . Pouton . Wigwam: m v
+> +.
mm vineutlmue <- m m ADvmo
HE "2 Genemmn Rename VOLIAGE

In; "F" Pom CONTROL

1 LE an?"

BLOCK SCLOCK 5mm use scaesemm:

SIN/CD5
DDs BLOCK

nereneuce
CIRCLHY

GND

GFIUNDIG Service
