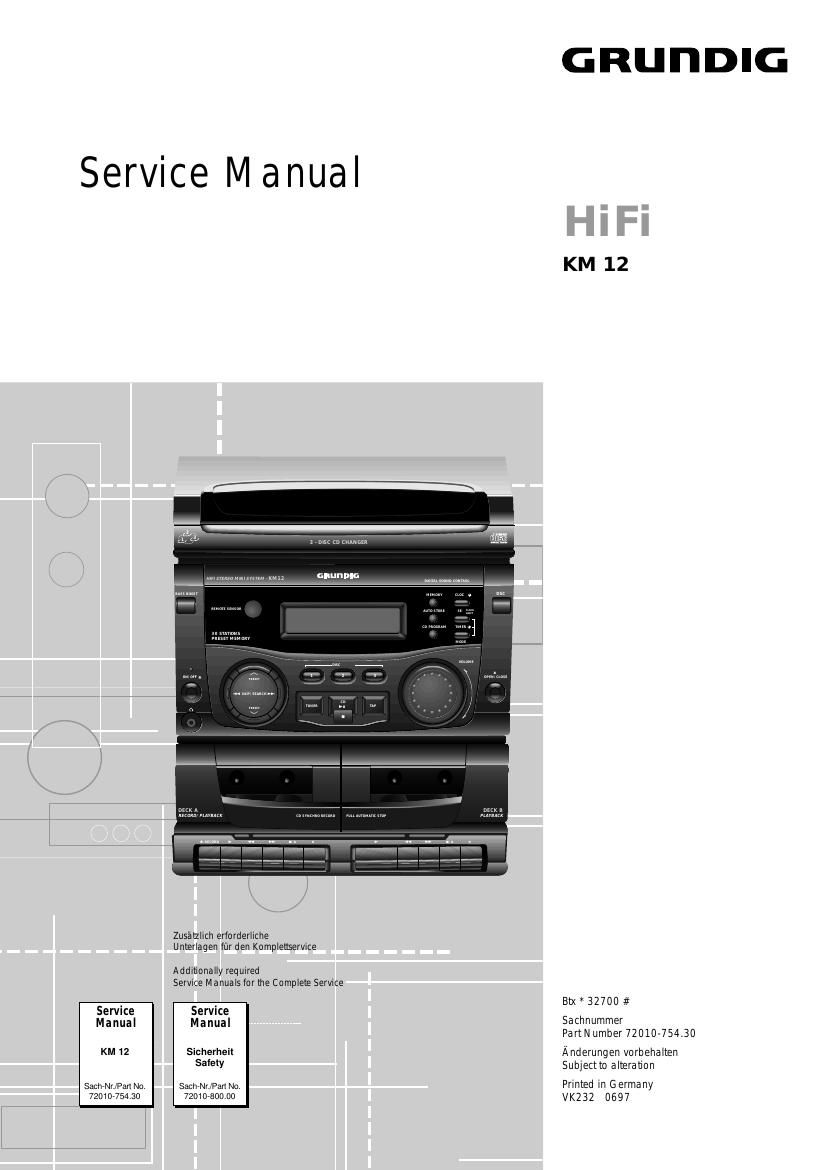

Grundig KM 12 Service Manual
This is the 22 pages manual for Grundig KM 12 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Grundig KM 12 Service Manual (Ocr-read)
Page 1
Es gelten die Vorschriften und Sicherheitshin- weise gemŠ§ dem Service Manual "Sicherheit", Sach-Nummer 72010-800.00, sowie zusŠtzlich die eventuell abweichenden, landesspezifischen Vorschriften!The regulations and safety instructions shall be valid as provided by the "Safety" Service Manual, part number 72010-800.00, as well as the respective national deviations. 1 - 2GRUNDIG Service Allgemeiner Teil / General SectionKM 12 © Table of Contents Page General Section ............................ 1 - 2 É 1 - 13 Test Equipment / Aids ................................................................ 1 - 2 Technical Data .......................................................................... 1 - 3 Service Hint ............................................................................... 1 - 3 Disassembly Instructions ........................................................... 1 - 4 Operating Instructions .............................................................. 1 - 12 Adjustment Procedures .................. 2 - 2 ... 2 - 3 Layout of the PCBs and Circuit Diagrams ................... 3 - 1 É 3 - 22 Block Diagrams: KM 12 ..................................................................................... 3 - 1 CD Part .................................................................................. 3 - 2 Wiring Diagram ......................................................................... 3 - 3 Circuit Diagrams: LED Board, Motor Board, CD Decoder Board, Switch Boards A - D ............................................................... 3 - 5 Front Board, Remote Receiver Board .................................... 3 - 9 Transformer Primary Board, Record Switch Board, Main Board ........................................................................... 3 - 13 Layout of the PCBs: LED Board, Motor Board, CD Decoder Board, Switch Boards A - D ............................................................... 3 - 7 Front Board, Remote Receiver Board .................................. 3 - 11 Transformer Primary Board, Record Switch Board, Main Board ........................................................................... 3 - 15 IC Block Diagrams ................................................................... 3 - 19 Spare Parts List and Exploded Views .............................. 4 - 1 É 4 - 6 Exploded Views: KM 12 ..................................................................................... 4 - 1 CD-Teil ................................................................................... 4 - 3 Spare Parts List ......................................................................... 4 - 5 d Inhaltsverzeichnis Seite Allgemeiner Teil .......................... 1 - 2 É 1 - 11 Me§gerŠte / Me§mittel ............................................................... 1 - 2 Technische Daten ..................................................................... 1 - 3 Servicehinweis .......................................................................... 1 - 3 Ausbauhinweise ......................................................................... 1 - 4 Bedienhinweise ........................................................................ 1 - 10 Abgleichvorschriften ...................... 2 - 1 ... 2 - 3 Platinenabbildungen und SchaltplŠne ........................... 3 - 1 É 3 - 22 BlockschaltplŠne: KM 12 ..................................................................................... 3 - 1 CD-Teil ................................................................................... 3 - 2 Verdrahtungsplan ....................................................................... 3 - 3 SchaltplŠne: LED-Platte, Motorplatte, CD-Decoder-Platte, Schalterplatten A - D .............................................................. 3 - 5 Front-Platte, Fernbedienplatte ............................................... 3 - 9 Aufnahmeschalterplatte, Trafoplatte, Hauptplatte ................ 3 - 13 Platinenabbildungen: LED-Platte, Motorplatte, CD-Decoder-Platte, Schalterplatten A - D .............................................................. 3 - 7 Front-Platte, Fernbedienplatte ............................................. 3 - 11 Aufnahmeschalterplatte, Trafoplatte, Hauptplatte ................ 3 - 15 IC-Block-Diagramme ................................................................ 3 - 19 Ersatzteilliste und Explosionszeichnungen ................ 4 - 1 É 4 - 6 Explosionszeichnungen: KM 12 ..................................................................................... 4 - 1 CD-Teil ................................................................................... 4 - 3 Ersatzteilliste .............................................................................. 4 - 5 Allgemeiner Teil Me§gerŠte / Me§mittel Trenntrafo Wobbelsender Me§sender Oszilloskop FrequenzzŠhler Tonhšhenschwankungsmesser DC-Voltmeter NF-Voltmeter Testcassette 449 Sach-Nr. 35079-019.00 Drehmomentcassette 456 Sach-Nr. 35079-014.00 Test-CD Sach-Nr. 72008-376.00 Beachten Sie bitte das GRUNDIG Me§technik-Programm, das Sie unter folgender Adresse erhalten: GRUNDIG Instruments Test- und Me§systeme GmbH WŸrzburger Str. 150, D-90766 FŸrth/Bay Tel. 0911/703-4118, Telefax 0911/703-4130 General Section Test Equipment / Aids Isolating Transformer Sweep Generator Test Generator Oscilloscope Frequency Counter Wow and Flutter Meter DC Voltmeter AF Voltmeter Testcassette 449 Part No. 35079-019.00 Cassette torque meter 456 Part No. 35079-014.00 Test CD Part No. 72008-376.00 Please note the Grundig Catalog ÒTest and Measuring EquipmentÓ obtainable from: GRUNDIG Instruments Test- und Me§systeme GmbH WŸrzburger Str. 150, D-90766 FŸrth/Bay Tel. 0911/703-4118, Telefax 0911/703-4130
Page 2
GRUNDIG Service1 - 3 Allgemeiner Teil / General Section KM 12 Servicehinweis Bei Ausbau des CD-Laufwerks mu§ vor Ab- ziehen der Steckverbindungen eine Schutz- lštstelle auf der Leiterplatte der Lasereinheit angebracht werden, um eine Zerstšrung der Laserdiode durch statische Aufladung zu vermeiden. Beim Einbau einer neuen Lasereinheit mu§ nach Einstecken der Steckverbindungen die werkseitig angebrachte Schutzlštstelle ent- fernt werden. Service Hint Before detaching the plug-in connections when removing the CD drive mechanism a protective solder joint must be provided on the circuit board of the laser pick-up to avoid the laser diode being destroyed by static charges. When fitting a new laser pick-up the protec- tive solder joint provided in the factory must be removed before inserting the plug-in con- nections. Technische Daten Spannungsversorgung Netzbetrieb ................................................................. 230V, 50/60Hz VerstŠrkerteil Ausgangsleistung DIN 45324, 10% THD Musikleistung ....................................................................... 2 x 20W Sinusleistung ........................................................................ 2 x 10W Stereo-Kopfhšrer-Klinkenbuchse ......................................... 3,5mm¯ Rundfunkteil Wellenbereiche ................................................... FM 87,5 - 108MHz .................................................. MW 522 - 1611kHz Zwischenfrequenzen ....................................... 10,7MHz und 450kHz Antennen ......................................................... Drahtantenne fŸr FM ................................................... Rahmenantenne fŸr MW CD-Teil FrequenzŸbertragungsbereich ..................................... 40Hz - 20kHz GerŠuschspannungsabstand .................................................... 65dB Cassettenteil TontrŠger .................................. Compact-Cassette nach DIN 45516 Spurlage ...................................................... Viertelspur International Bandgeschwindigkeit ..................................................... 4,76cm/sec. Motor .................................................................................. DC-Motor FrequenzŸbertragungsbereich ................................... 125Hz - 10kHz GerŠuschspannungsabstand .................................................... 42dB Gleichlauffehler ....................................................................... 0,35% Automatikfunktionen ............................................ Aussteuerungsautomatik bei Aufnahme ......................... Automatisches Auslšsen der Tasten am Bandende Technical Data Power Supply Mains operation ......................................................... 230V, 50/60Hz Amplifier Section Output power DIN 45324, 10% THD Music power ......................................................................... 2 x 20W Nominal power ..................................................................... 2 x 10W Socket for stereo headphones ............................................. 3.5mm¯ Radio Section Wavebands ......................................................... FM 87.5 - 108MHz ........................................................ MW 522 - 1611kHz Intermediate frequencies ................................ 10.7MHz and 450kHz Aerials ............................................................... Wire antenna for FM ............................................................. Loop antenna for MW CD Section Frequency range .......................................................... 40Hz - 20kHz S/N ratio, weighted .................................................................... 65dB Cassette Section Cassette ......................................... Compact cassette to DIN 45516 Track system ............................................. International quartertrack Tape speed .................................................................... 4.76cm/sec. Motor .................................................................................. DC motor Frequency range ........................................................ 125Hz - 10kHz S/N ratio, weighted .................................................................... 42dB Wow and flutter ....................................................................... 0.35% Automatic functions ...................................................... Automatic recording level control ................................................ Automatic button release at tape end Schutzlštstelle protective soldered joint
