Grundig GDP 2400 Service Manual

This is the 12 pages manual for Grundig GDP 2400 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 12
Grundig GDP 2400 Service Manual

Extracted text from Grundig GDP 2400 Service Manual (Ocr-read)


Page 1

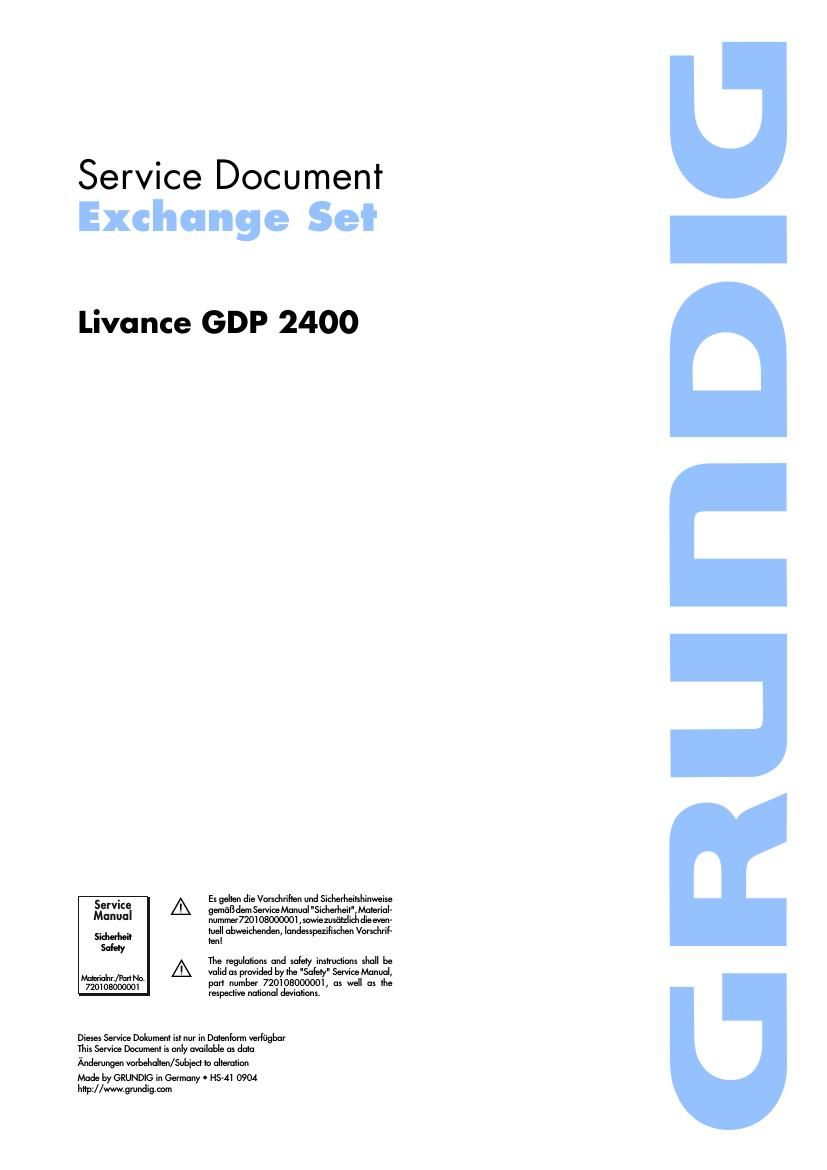

Service Document
Exchange SeI

Livance GDP 2400

Service A

Manual
Sicherlleil
5056)!

Mun/Pm Na. A
720108000001

Es gelion din Vomdurihou und Sicherheiishiwwaise
gunmdum Servioe Manual 'Sidmheii",Mmerial-
nummer720103000001,wwiemséflidi diemn-
well ubweichenden, landeupezifischeu Vomhril-
len!

11m Iegulnliom and sofeiy immiclions shall be
valid ax waded by the "saw Service Manual,
pun numbet 720108000001, as we" as lhe
respsclive nolionul duiaiions.

Dims Service Doliumom isi nur in Daimfium verfijgbcr
Th3; Serving Document is only available as data

Anderungen voibehalien/Subieci to ahemfion
Mada by GRUNDIG in Gsfmany I HSnfl 0904

hitp://wwgrundig.com

GRUI'IDIG

Page 2

7Q; (,

VQ _ 7 \

GRUHDIG

Disassembly Instructions

1. Cabinet Upper Part

- Undo the 7 screws A (Fig. 1).

- Bend the upper part of the cabinet at its centre, slide it to the
rear then remove it.

Reassembly Hint:
- Place the upper part of the cabinet on the recesses K.

2. Front Panel

- Undo the 4 locking lugs J (Fig. 3) / L (Fig. 4) and then remove
the front panel.

- Unplug the connectors if necessary.

3. VFD Driver and Key Control Board Units

- Remove the front panel (Point 2).

- Undo the 10 screws M / N (Fig. 5).

- Remove the VFD Driver and Key Control Board units.

4. Power Supply Board

- Undo the 2 screws B (Fig. 3).

- Undo the 1 screw F (Fig. 2).

- Remove the Power Supply Board lrorn the unit.
- Unplug the connectors if necessary.

5. Main Board

_ Undo the 4 screws E (Fig. 3).

_ Remove the main board.

_ Unplug the connectors if necessary.

6. Output Board

- Undo the 2 screws I (Fig. 3)

- Undo the 7 screws C (Fig. 2).

- Remove the output board.

- Unplug the connectors if necessary.

7. Drive Mechanism

v Undo the 4 screws D (Fig. 3)

- Lift the drive mechanism at its back part, slide it to the rear, and
then remove it.

- Unplug the connectors if necessary.

8. Opening the Tray of a Defective Unit

- Turn the toothed wheel P (Fig. 6) in direction ofthe arrow until
the tray moves then pull out the tray completely.

- Remove the DVD/CD fromthedefective drive unititnecessary.

Fig 6

GDP 2400
