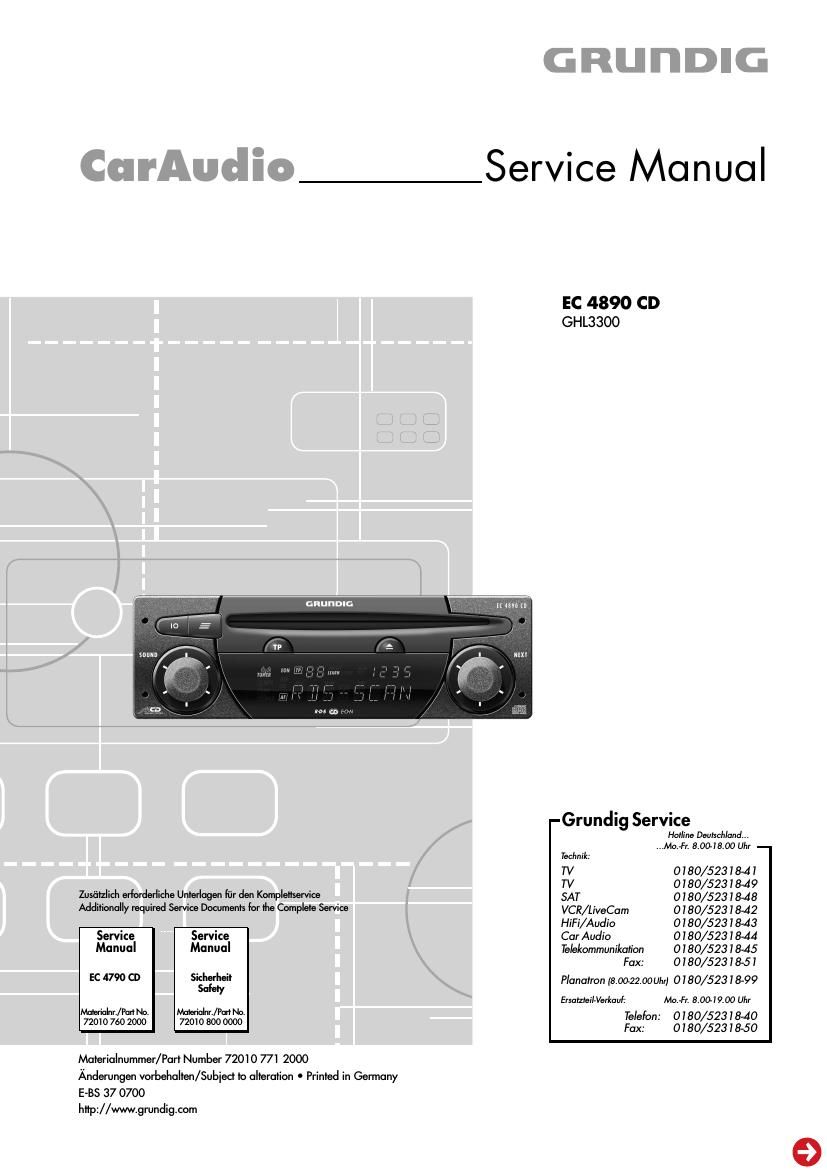

Grundig EC 4890 CD Service Manual

This is the 2 pages manual for Grundig EC 4890 CD Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 2

Extracted text from Grundig EC 4890 CD Service Manual (Ocr-read)

Page 2

EC 4890 CD

Ersatzreilliste / Spare Parts List

The set EC 4890 CD corresponds technical with the set EC 4790 CD.

Difference: Fronlmask blue

Das Geréit EC 4890 CD entspricht lechnisch dem Geral EC 4790 CD.

Unlerschied: Frontblende blau

This Service Manual includes only the spare parts lisl.

Dieses Service Manual beinhaltel nur die Ersatzleillisle.

For repairs use the Service Manual EC 4790 CD (pan number

72010 760 2000).

Fiir Reparaturen venNenden Sie das Service Manual EC 4790 CD

(Materialnummer 72010 760 2000).
