Grundig CDP 200 Service Manual

This is the 29 pages manual for Grundig CDP 200 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 29
Grundig CDP 200 Service Manual

Extracted text from Grundig CDP 200 Service Manual (Ocr-read)


Page 1

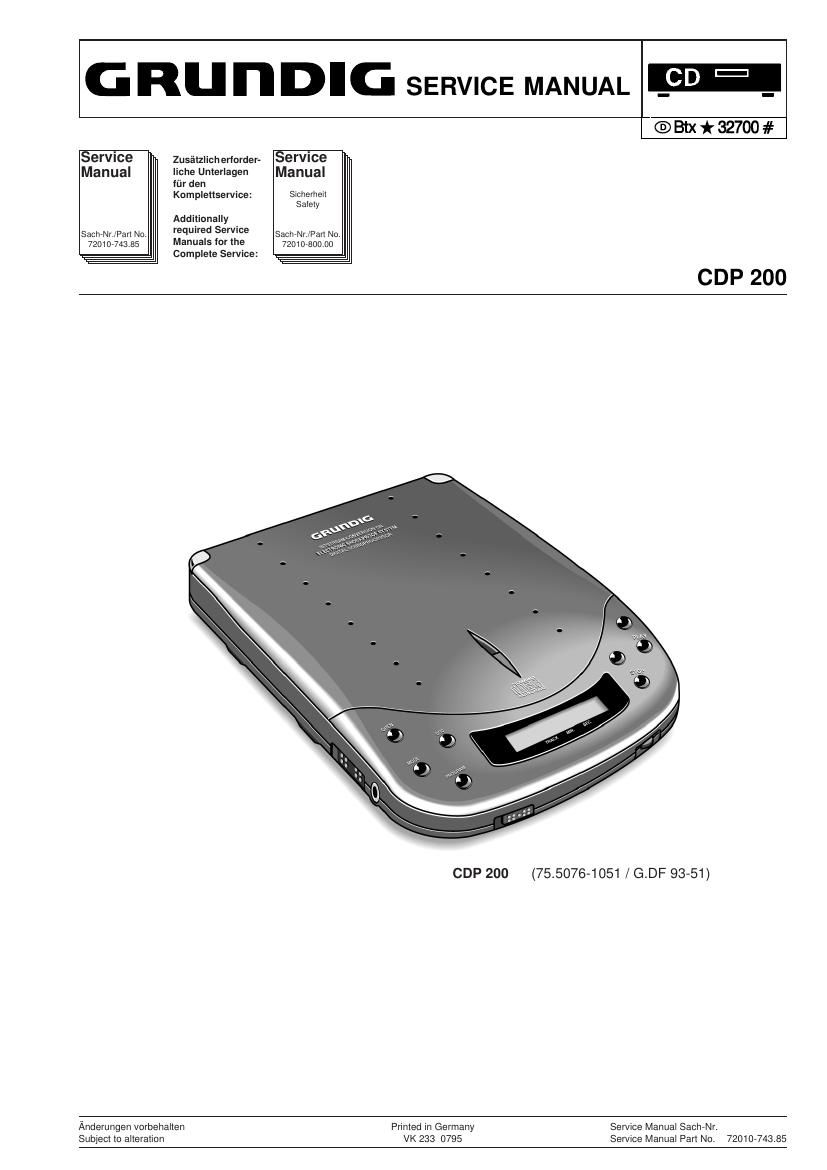

Allgemeiner Teil / General SectionCDP 200 1 - 2GRUNDIG Service Es gelten die Vorschriften und Sicherheitshin- weise gemŠ§ dem Service Manual "Sicherheit", Sach-Nummer 72010-800.00, sowie zusŠtzlich die eventuell abweichenden, landesspezifischen Vorschriften!The regulations and safety instructions shall be valid as provided by the "Safety" Service Manual, part number 72010-800.00, as well as the respective national deviations. GB Table of Contents Page General Section ............................ 1 - 2 É 1 - 22 Test Equipment .......................................................................... 1 - 2 Technical Data ........................................................................... 1 - 3 Service Hints ............................................................................. 1 - 3 Disassembly Instructions ........................................................... 1 - 4 Operating Hints .......................................................................... 1 - 9 Service Test Program .............................................................. 1 - 12 Fault Finding Guide ................................................................. 1 - 19 Layout of the PCBs and Circuit Diagrams .................. 2 - 1 É 2 - 16 Block Diagram ........................................................................... 2 - 1 Circuit Diagram Servo Part ........................................................ 2 - 3 Circuit Diagram Signal Processing Part .................................... 2 - 5 Circuit Diagram Audio Part ........................................................ 2 - 7 Circuit Diagram Supply and Control .......................................... 2 - 9 Abbreviations .......................................................................... 2 - 11 Layout of PCB Component Side .............................................. 2 - 13 Layout of PCB Solder Side ...................................................... 2 - 15 Spare Parts Lists and Exploded View ............................... 3 - 1 É 3 - 3 Exploded View ........................................................................... 3 - 1 Spare Parts List ......................................................................... 3 - 2 D Inhaltsverzeichnis Seite Allgemeiner Teil ........................... 1 - 2 É 1 - 18 Me§gerŠte ................................................................................ 1 - 2 Technische Daten ...................................................................... 1 - 3 Servicehinweise ......................................................................... 1 - 3 Ausbauhinweise ......................................................................... 1 - 4 Bedienhinweise .......................................................................... 1 - 6 Servicetestprogramm ............................................................... 1 - 12 Fehlersuchdiagramm ............................................................... 1 - 15 Platinenabbildungen und SchaltplŠne ............................ 2 - 1 É 2 - 16 Blockschaltbild ........................................................................... 2 - 1 Schaltplan Servo-Teil ................................................................. 2 - 3 Schaltplan Signalverarbeitung ................................................... 2 - 5 Schaltplan NF-Teil ..................................................................... 2 - 7 Schaltplan Stromversorgung und Bedienteil ............................. 2 - 9 AbkŸrzungen ........................................................................... 2 - 11 Platinenabbildung BestŸckungsseite ....................................... 2 - 13 Platinenabbildung Lštseite ...................................................... 2 - 15 Ersatzteillisten und Explosionszeichnung ..................... 3 - 1 É 3 - 3 Explosionszeichnung ................................................................. 3 - 1 Ersatzteilliste ............................................................................. 3 - 2 Allgemeiner Teil Me§gerŠte / Me§mittel Beachten Sie bitte das GRUNDIG Me§technik-Programm, das Sie unter folgender Adresse erhalten: GRUNDIG electronics GmbH WŸrzburger Str. 150 D-90766 FŸrth/Bay Tel. 0911/703-0, Fax 0911/703-4479 General Section Test Equipment / Aids Please note the Grundig Catalog ÒTest and Measuring EquipmentÓ obtainable from: GRUNDIG electronics GmbH WŸrzburger Str. 150 D-90766 FŸrth/Bay Tel. 0911/703-0, Fax 0911/703-4479

Page 2
