Grundig CDP 180 Service Manual

This is the 13 pages manual for Grundig CDP 180 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 13
Grundig CDP 180 Service Manual

Extracted text from Grundig CDP 180 Service Manual (Ocr-read)


Page 1

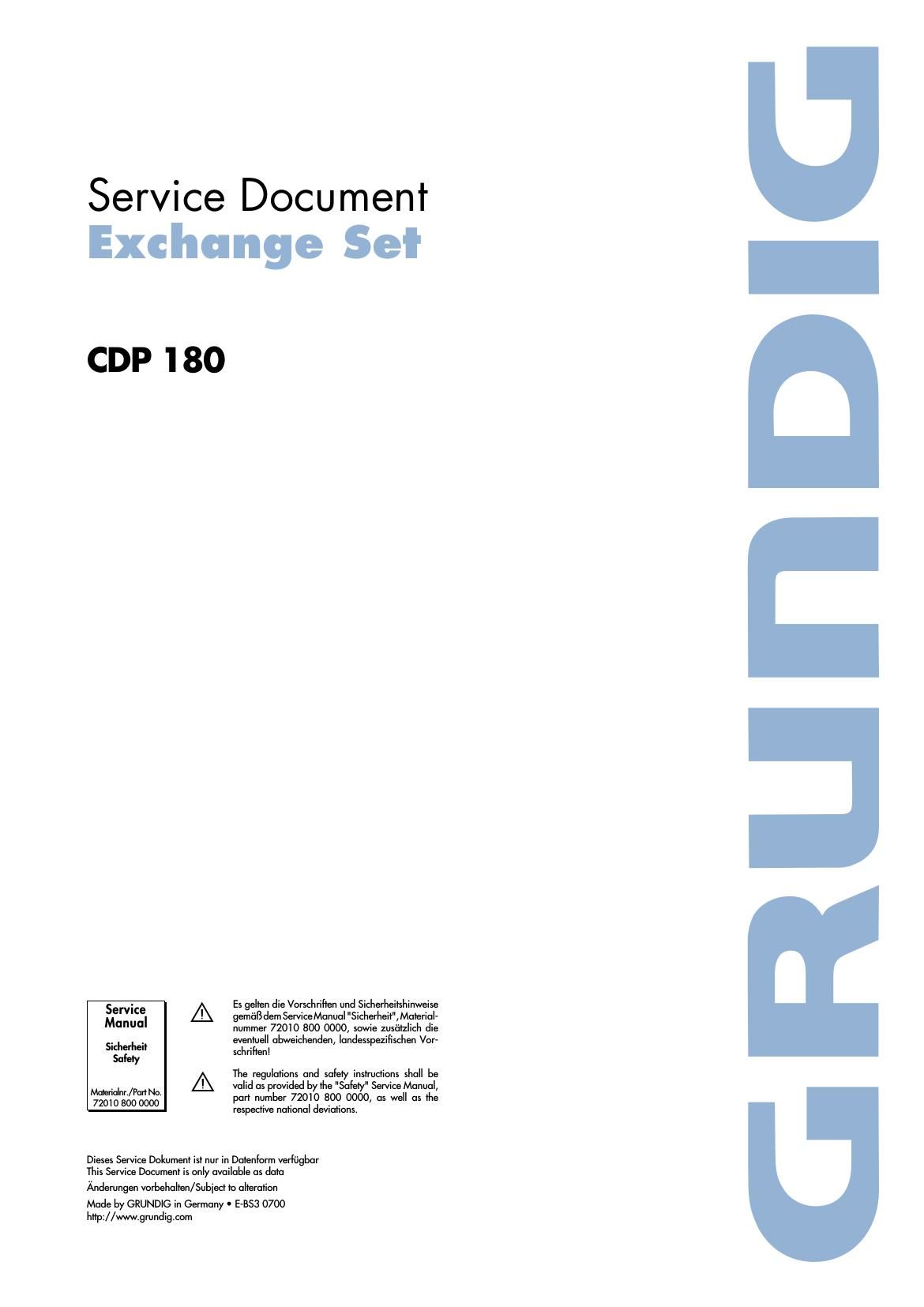

Service

Document

Exchange Set

CDP 180

SerVIce| A

Manua

Sicherheit
Safety

Materialnr/Pm Nov A

72010 800 0000

Es gelten die Vorschritten und Sicherheitshinweise
gemaB dem Service Manual "Sicherheit", Material-
nummer 72010 800 0000, sowie zusatzlich clie
eventuell abweichenden, landesspezitischen Vor-

schrilten!

The regulations and safety instructions shall be
valid as provided by the "Safety" Service Manual,
part number 72010 800 0000, as well as the
respective national deviations.

Dieses Service Dokument ist nur in Datenlorm vertfigbar
This Service Document is only available as data

Anderungen vorbehalten/ Subject to alteration
Made by GRUNDIG in Germany ' E-BS3 0700

http://www.grundig.com

GRUI'I-IG

Page 2

Disassembly Instructions

General Hint:

Mark the connectors before pulling them off because they may easily be confused because of the great num-
ber of identical connectors.When reassembling take care, for safety reasons, that the cables are laid in their

original position.

Opening REAR CABINET
~Undo 6 screws®(Fig. 1)

-Remove the REAR CABINET with CD MECH. & PCB.(Fig. 2)

(.uunnll-

Remove the CD MECHANISM
Disconnect the connector CN1 and CN2 ©(Fig. 3)
Remove the CD MECHANISM.(Fig. 4)

Fig. 1

GRUHDIG

CDP 180
