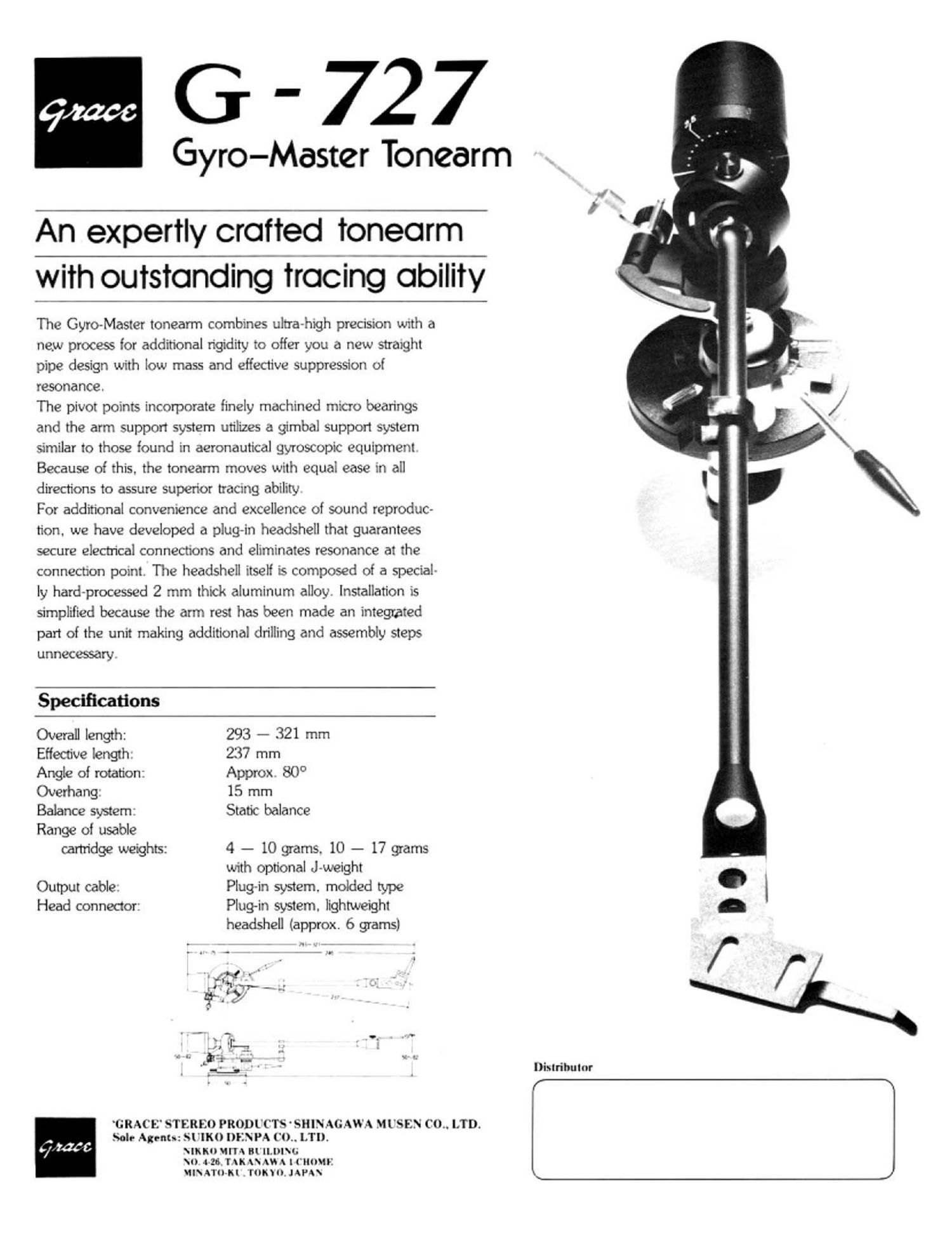

G-727

Gyro-Master Tonearm

An expertly crafted tonearm

with outstanding tracing ability

The Gyro-Master tonearm combines ultra-high precision With a
new process for additional rigidity to offer you a new straight
pipe design with lou.I mass and effective suppression of
resonance.

The pivot points incorporate finely machined micro bearings
and the arm support system utilizes a gimbal support system
similar to those found in aeronautical gyroscopic equipment
Because of this, the tonearm moves with equal ease in all
directions to assure superior tracing ability

For additional convenience and excellence of sound reproduc-
tion. we have developed a plug-in headshell that guarantees
secure electrical connections and eliminates resonance at the
connection paint, The headshell itself is composed of a special-
ly hard'processed 2 mm thick aluminum alloy. installation is
simplified because the arm rest has been made an integrated
part of the unit making additional drilling and assembly steps

unnecessary,

Specifications

Overall length: 293 - 321 mm
Effective length. 237 mm

Angle of rotation: Approx. 80°
Overhang. 15 mm

Balance system: Static balance

Range oi usable

cmtridge weights:

Output cable;
Head connector:

4 - 10 grams. 10 - 17 grams
with optional J-weight

Plug-in system. molded type
Plugin system, lightweight
headshell (approx. 6 grams)
