Grace g 545 owners manual

Page 1

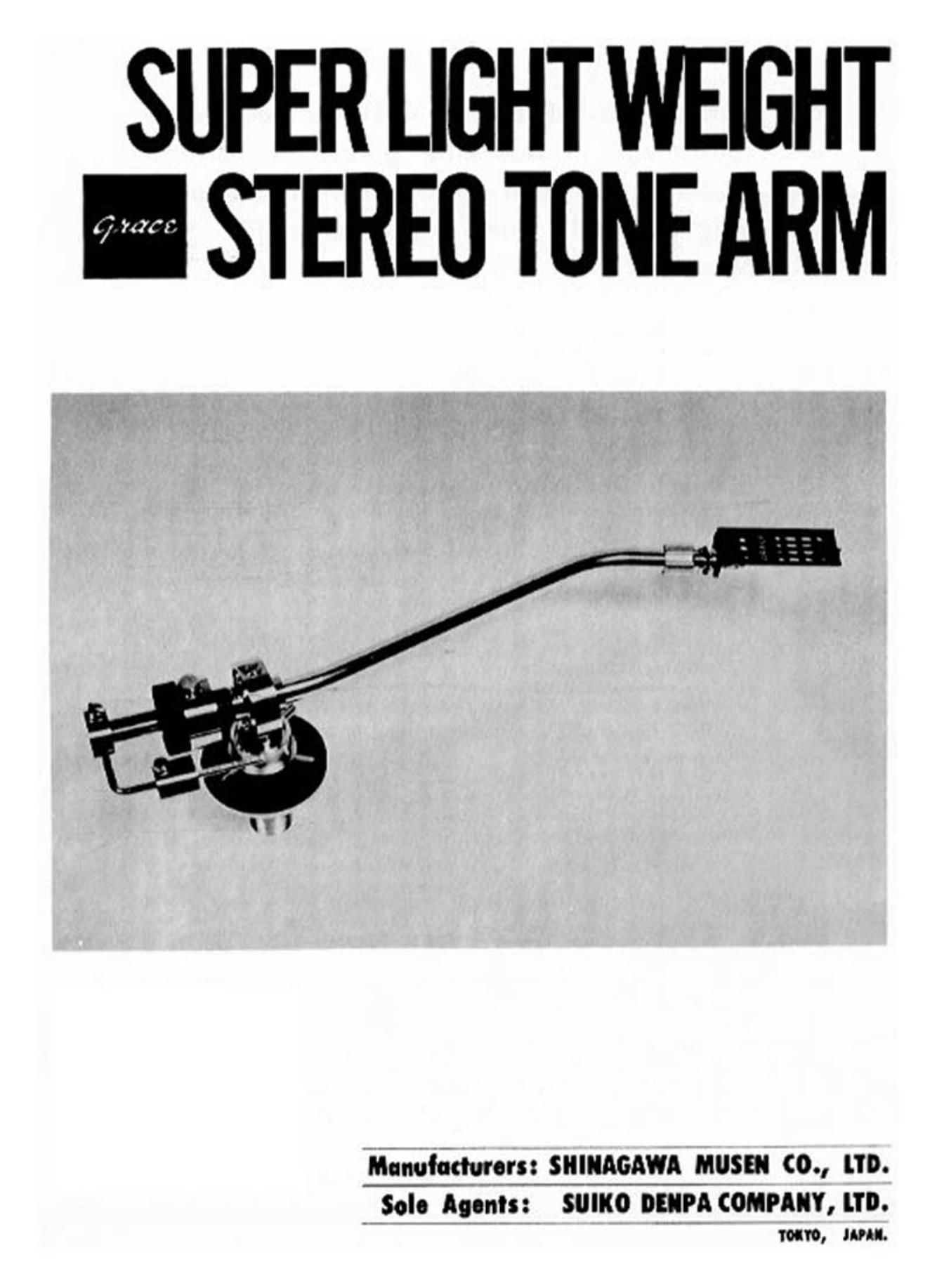

SUPER LIGHT WEIGHT
ST EREU TONE ARM

Page 2

GRAGE 6-545 Arm is a Static Balance Type
top-ranked in this kind with such attractive
features as ultra light weight head, divided
weights and fine adjustment for stylus
pressure.

1: Despite its high perlormance. the 6-545 arm can be used in small player
cases and can be used in a base designed ior 12' 130 cm.) arms due to
the shortened rear overhang ol the arm.

a A gimbal gyroscooic pivotling mechanism is incorporated to ensure Supreme
stereo reproduction.

its Maximum strength with minimum weight is achieved by usmg 10 mm.
diameter alloy pipe which also contributes to excellent tracking ability.

a: An "F type headshell has been specially designed tor this arm by Our
engineering stall. lite holes in it are to minimise the weight and lor
mounting the cartridge.

is The main-weight is divided into two parts {light and heavier) to allow
easier weight balancing.

at: Graduations on the submeight holder give any stylus pressme adiuslment.
ranging irom 0 to 3 grams with the standard might and O to 1.5 grams
with the smaller weight.

ii: New style arm rest does not harm the gimbal pivot hearing.

at: Moulded live core audio cord ollers easier and steadier wire contact.
No soldering is needed.

a Wide range at level adiustment is available with the L8 base.
a All adjusting screws can be handled withoet using tools.

a Vibration is entirely eliminated by the use ol damping materials. skillfully
incorporated in the mechanism.

all Lateral balance and stability control can be adjusted manually.

at: This arm shows its excellency when used in combination with a high class
cartridge operating at less than 1 gram stylus pressure.
