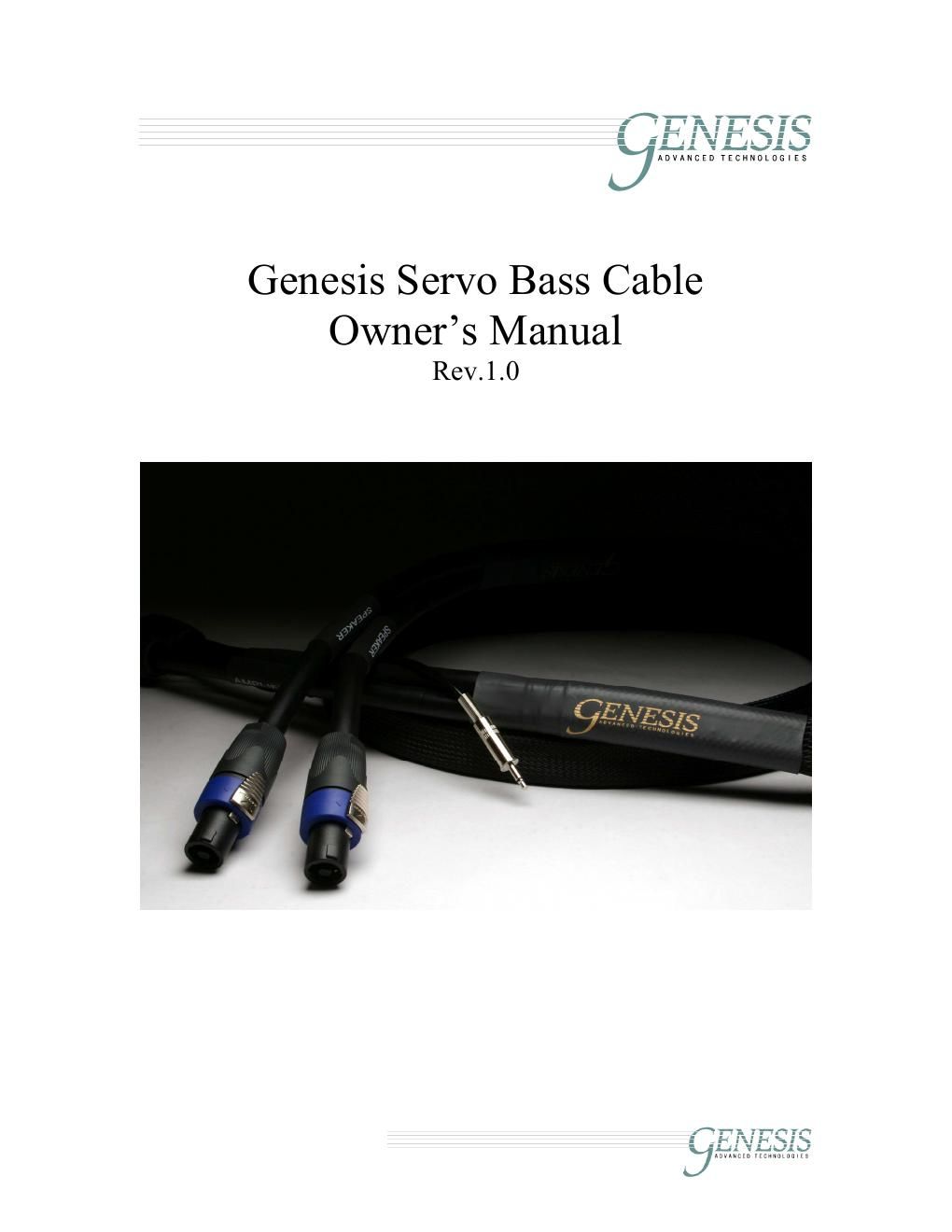

Genesis servo bass cables owners manual
This is the 5 pages manual for genesis servo bass cables owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from genesis servo bass cables owners manual (Ocr-read)
Page 1
The Genesis Servo/Bass Cable The concept of our servo-bass system is an easy one to understand. It employs an accelerometer in the woofer to constantly monitor t he movement of the cone and instantaneously compare it to the input signal. Thi s comparison circuit identifies any deviation from the input signal and applies a corre ctive signal to compensate; resulting in the virtual elimination of the inherent distortion of the woofer. In the Genesis products with an external amplifier, this means that the servo/bass cable that connects the woofer and accelerometer to the s ervo amplifier is a critical part of the servo system feedback circuit. The Genesis Servo/Ba ss cable is designed to work as a system with the servo circuit and the amplifier. It is a speaker cable, and a feedback circuit cable engineered together. Grounded shielding is employed to ensure minimal cr osstalk interference between the accelerometer return and the high-voltage speaker s ignal. Spaced and tightly constrained conductors are used for the speaker signal to ensur e that the inductance, capacitance, and resistance of the cable are optimal for the servo s ystem.
Page 2
Instructions For Grounding the Shield On Genesis Servo Cables Step 1.- Remove the grounding screw from the amplif ier chassis. This screw is located on the rear left hand corner of the chass is bottom. Figure 1 Step 2. – Using a small piece of 240 grit sandpaper sand the paint around the screw hole until the chassis metal is exp osed. Figure 2 Figure 3
