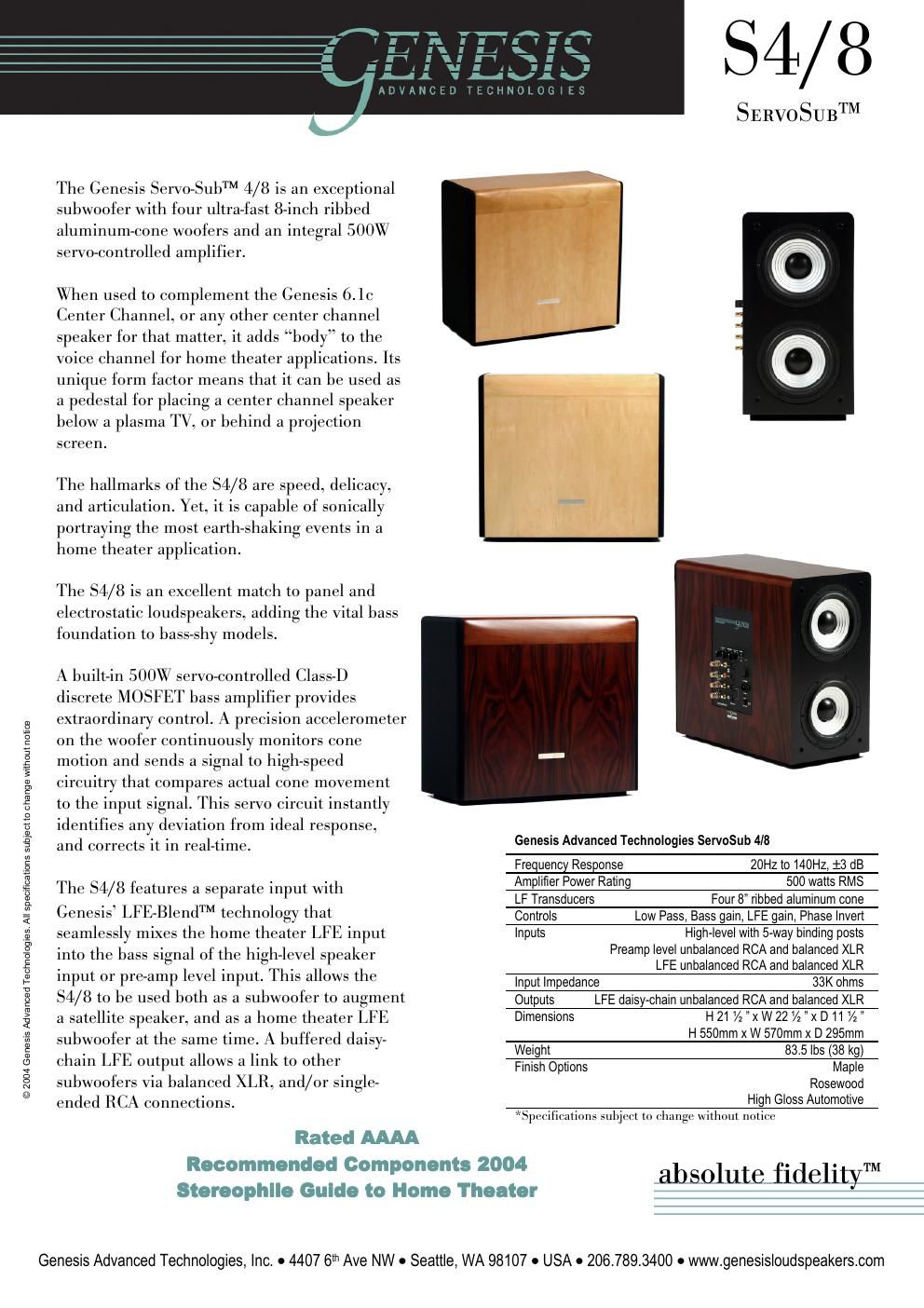

Genesis s 4 brochure

Page 1

84/8

SERVOSUBTM

The Genesis Servo-SubTM 4/ 8 is an exceptional
subwoofer with four ultra»fast 8-inch ribbed
aluminum-cone woofers and an integral 500W
servo-controlled amplifier.

When used to complement the Genesis 6.lc
Center Channel, or any other center channel
speaker for that matter, it adds body" to the
voice channel for home theater applications. Its
unique form factor means that it can be used as
a pedestal for placing a center channel speaker
below a plasma TV, or behind a projection
screen.

The hallmarks of the 54/8 are speed, delicacy,
and articulation. Yet, it is capable of sonically

portraying the most earth-shaking events in a

home theater application.

The 54/8 is an excellent match to panel and
electrostatic loudspeakers, adding the vital bass
foundation to bass-shy models.

A built-in 500W servo-controlled Class-D
discrete MOSFET bass amplifier provides
extraordinary control. A precision accelerometer
on the woofer continuously monitors cone
motion and sends a signal to high-speed
circuitry that compares actual cone movement
to the input signal. This servo circuit instantly
identifies any deviation from ideal response,

Genesis Advanced Technologies ServoSub 418

and corrects it in real-time.

20Hz to 140Hz, i3 dB
500 watts RMS
Four 8" ribbed aluminum cone

Frequency Response
Amplifier Power Rating
LF Transducers

The 54/8 features a separate input with

© 2004 Genesis Advanced Technologies. All specifications subject to change without notice

Genesis LFE'BICHdTM technology that Controls Low Pass, Bass gain, LFE gain, Phase Invert
seamlessly mixes the home theater LFE input Inputs High-level with 5-way binding posts
' t th , b ¥ ' 1 fth , h' h»l j 11 _ 1.1 1 Preamp level unbalanced RCA and balanced XLR
in 0 p m gm 0 . o 1g, iv" gpm W LFE unbalanced RCA and balanced XLR
Input or pre-amp level input. Fhls allows the Input Impedance 33K ohms
54/8 to be used both as a SUbWOOfCT to augment Outputs LFE daisy-chain unbalanced RCA and balanced XLR
a satellite speaker, and as a home theater LFE Dimensions H 21 /2 " X W22 /2 " X D 11 /2 "
subwoofer at the same time. A buffered daisy- , H 550mm X W 570mm X D 295mm

h: . LFE . fl , 1 I h Welght 83.5 lbs (38 kg)
c a1n output a ows a 1n< to 0t er. Finish Options Maple
subwoofers v1a balanced XLR, and/ or s1ngle- Rosewood
ended RCA connections. High Gloss Automotive

*Spceifications subject to change without notice

Rated AAAA
Recommended Components 2004
Stereophile Guide to Home Theater

absolute fidelityL
