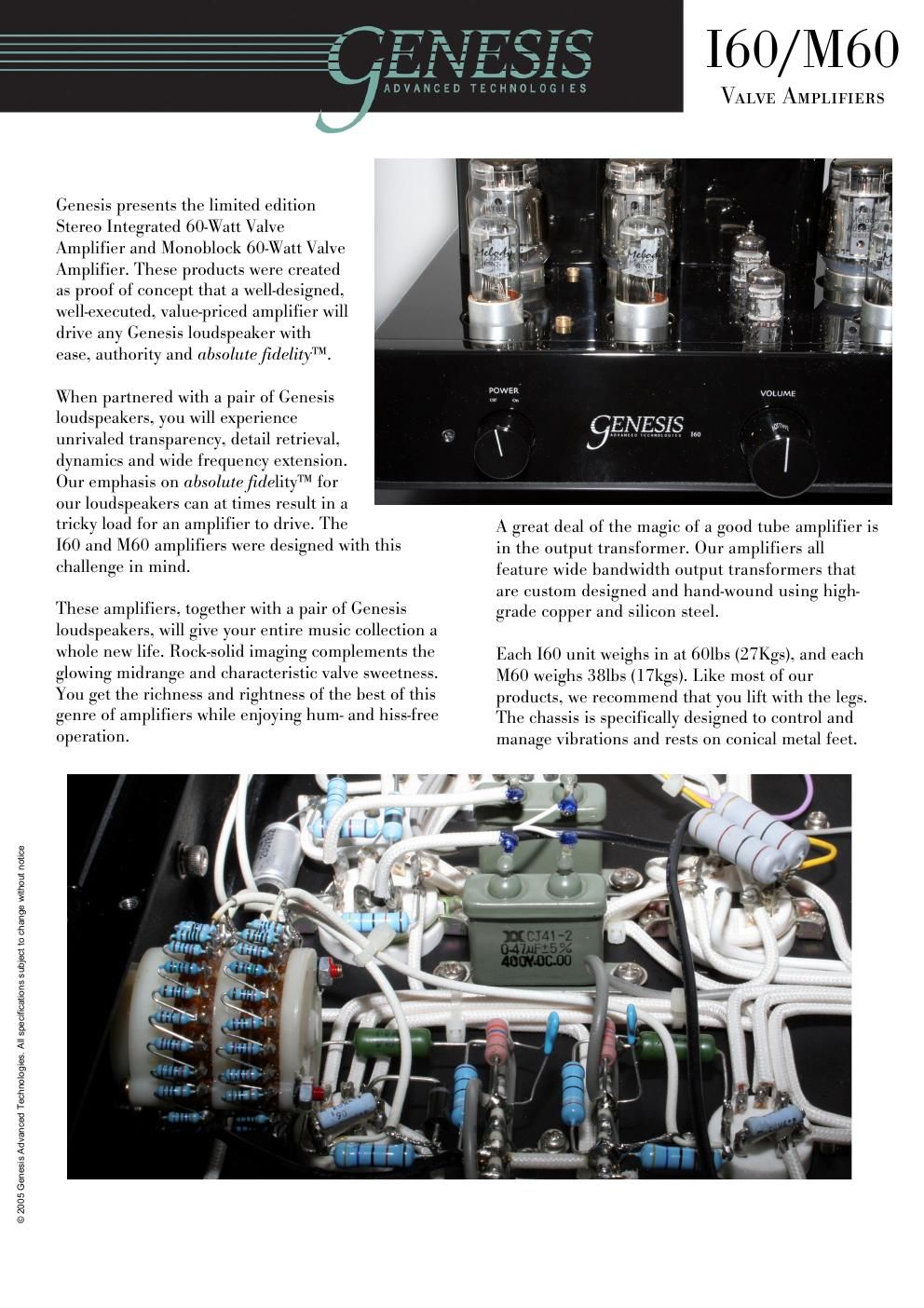

Page 1

160/M60

VALVE AMPLIFIERS

Genesis presents the limited edition
Stereo Integrated 60-Watt Valve
Amplifier and Monohlock 60»Watt Valve
Amplifier. These products were created
as proof of concept that a well-designed,
well»executed. value-priced amplifier will
drive any Genesis loudspeaker with
ease7 authority and absolutefidelityw.

When partnered with a pair of Genesis
loudspeakers, you will experience
unrivaled transparency. detail retrieval7
dynamics and wide frequency extension.
()ur emphasis on (Lbs'olluefidelityTM for
our loudspeakers can at times result in a

tricky load f01r E111 amplifier t0 drive. T110 A great deal of the magic of a good tube amplifier is

160 and 3160 amplifiers WCIC designed With this in the output transformer. Our amplifiers all

Challenge in mind. feature wide bandwidth output transformers that
are custom designed and hand-wound using high-

These amplifiers. together with a pair of Genesis grade copper and silicon steel.

loudspeakers. will give your entire music collection a

whole new life. Rocksolid imaging complements the Each [60 unit weighs in at 60lhs (27Kg5)7 and each

glowing midrange and characteristic valve sweetness. N160 weighs 381115 (l7kgs). Like most of our

You get thC FiChHCSS and rightness 0f til bCSt Of this products. we recommend that you lift with the legs.

genre of amplifiers WhilC CHjOYng hum- 211101 hiss-free The chassis is specifically designed to control and

operation. manage vibrations and rests on conical metal feet.

"_'P",'""SJ'. \

© 2005 Genesis Advanced Technologies. All specifications subject to change without notice

Page 2

The 160 and M60 are entirely built using hand-
selected, precisely matched components. Custom»
made military-spec paper»in-oil capacitors7 tantalum»
film resistors are used in the signal path. Low noise
gold plated ceramic tube sockets are used for every
tube, and solid»core silver wiring is used throughout.

The 160 uses a handmade, stepped volume
attenuator made from pre
All this is point-to-point wired on a specially tuned
non-ferrous plate that is mechanically isolated from
the rest of the chassis.

on matched resistors.

The amps are designed to accept readily available
l2AX7, 65N7 and KT88-type tubes. Each tube is
tested for linearity and low noise. and then pair
matched. Military-spec versions of the ()SN7 are used
for their reliability and durability as the phase

splitter and driver tubes in both the 160 and M60.

Very little feedback is used , just enough to make
the amplifier unconditionally stable Not the

exc ive amount usually employed to make
amplifiers achieve better measured performance at
the expense of musicality.

Before shipment each and every unit is fir st burned
in for l00 hours lhe tubes are then calibrated and

rc-checkcd. Only then Is it packed for shipping.

The result of all this obsessive attention to detail is
an amplifier with all the hallmarks of tubes, and
some of the characteristics of an excellent solid-
state design. It has tremendous body and punch,
and great tightness and control in the bass.

The Genesis l60 integrated amplifier retails for
$3.495. and the Genesis M60 monoblock amplifier
retails for $3,995 per pair. Both are fabulously
musical and represent tremendous value and
performance.

Genesis Monoblock 60-watt Valve Amplifier (each)

Frequency Response 20 Hz to 30 kHz
Rated Power Output 60 watts
THD less than 2.0 % at full rated power
SIN ratio > 90 dB
Input Sensitivity 380 mV
Input Impedance 250k Ohms
Output Impedance 4 Ohms, 8 Ohms
Power Tubes (per channel) Two KT88
Tube Complement (per channel) Three 65N7
Outputs 5-way binding posts 4 Ohm & 8 Ohm taps
Dimensions W111/4"x H7%"XD14"

W 430 mm x H 185mm x D 355mm
Weight 38 lbs (17 kg)
Finish Options High Gloss Automotive Black

* Specifications are subject to change without notice

Genesis Integrated (SO-watt Valve Amplifier

Frequency Response 20 Hz to 30 kHz

Rated Power Output 60 watts per channel
THD less than 2.0 % at full rated power
SIN ratio > 90 dB
Input Sensitivity 380 mV
Input Impedance 250k Ohms
Output Impedance 4 Ohms, 8 Ohms
Power Tubes (per channel) Two KT88
Tube Complement (per channel) One 12AX7, two 68N7
Inputs CD, Tape, Aux, Tuner
Outputs 5-way binding posts 4 Ohm & 8 Ohm taps
Dimensions Wi7"x H7AxDi5

W 430 mm x H 185mm x D 380mm
Weight 60 lbs (27 kg)
Finish Options High Gloss Automotive Black

* Specifications are subject to change without notice

absolute fidelityTM

Genesis Advanced Technologies, Inc. 0 654 S Lucile Ste Seattle, WA 98108 0 USA a 206.762.8383 - www.genesisloudspeakers.com
