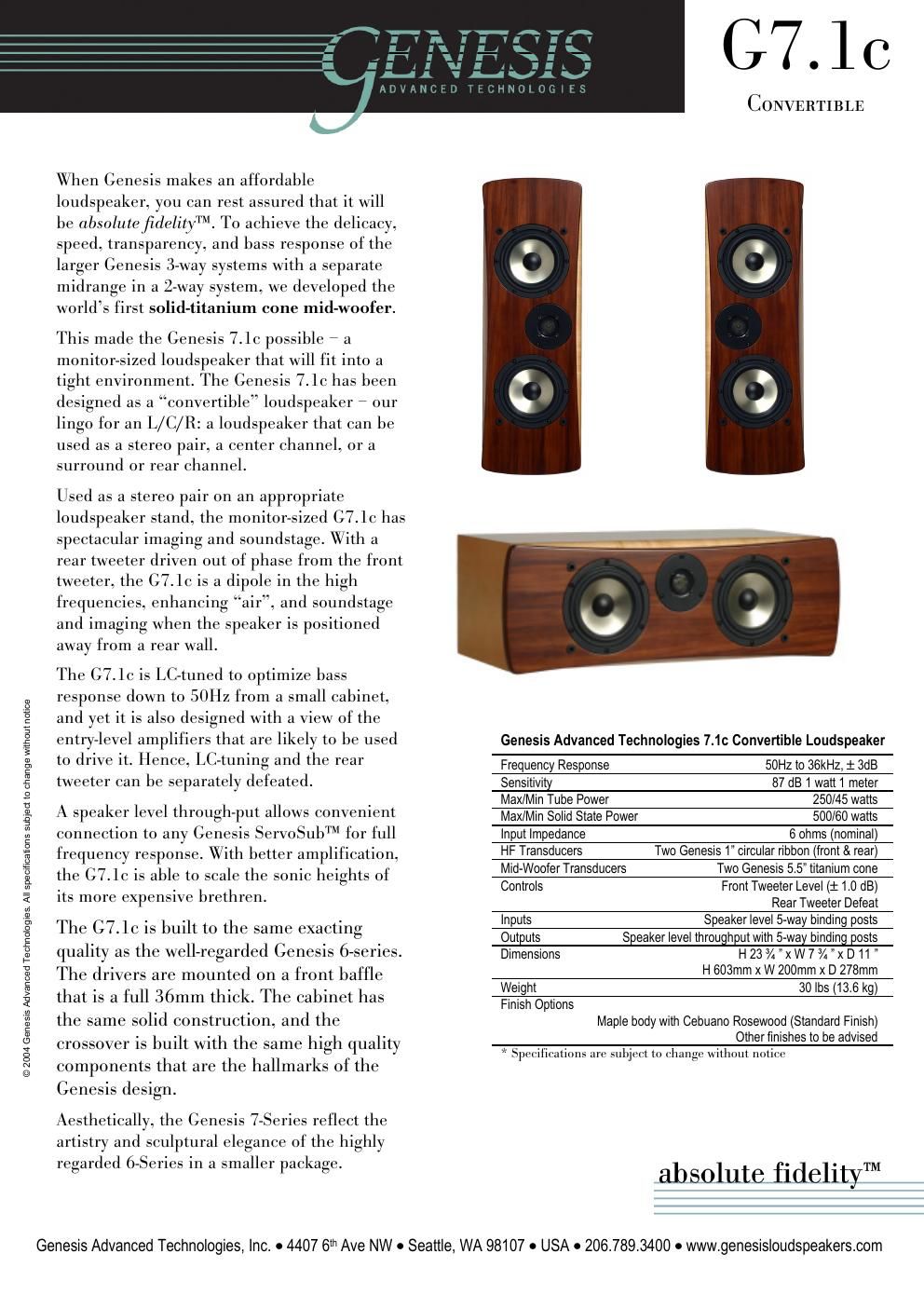

Genesis g 7 1 c brochure

Page 1

© 2004 Genesis Advanced Technologies. All specifications subject to change without notice

When Genesis makes an affordable
loudspeaker, you can rest assured that it will
be absolutefidelityTM. To achieve the delicacy,
speed, transparency, and bass response of the
larger Genesis 3-way systems with a separate
midrange in a 2-way system, we developed the
world7s first solid-titanium cone mid-woofer.

This made the Genesis 7.lc possible * a
monitor»sized loudspeaker that will fit into a
tight environment. The Genesis 7.lc has been
designed as a convertible loudspeaker e our
lingo for an L/C/R: a loudspeaker that can be
used as a stereo pair, a center channel, or a
surround or rear channel.

Used as a stereo pair on an appropriate
loudspeaker stand, the monitor-sized G7.lc has
spectacular imaging and soundstage. With a
rear tweeter driven out of phase from the front
tweeter, the G7.lc is a dipole in the high
frequencies, enhancing air, and soundstage
and imaging when the speaker is positioned
away from a rear wall.

The G7.lc is LC-tuned to optimize bass
response down to 50Hz from a small cabinet,
and yet it is also designed with a view of the
entry»level amplifiers that are likely to be used
to drive it. Hence, LC-tuning and the rear
tweeter can be separately defeated.

A speaker level through-put allows convenient
connection to any Genesis ServoSubTM for full
frequency response. With better amplification,
the G7.lc is able to scale the sonic heights of
its more expensive brethren.

The C7.lc is built to the same exacting
quality as the well-regarded Genesis 6-series.
The drivers are mounted on a front baffle
that is a full 36mm thick. The cabinet has
the same solid construction, and the
crossover is built with the same high quality
components that are the hallmarks of the
Genesis design.

Acsthetically, the Genesis 7-Series reflect the
artistry and sculptural elegance of the highly
regarded 6-Series in a smaller package.

G7.lc

CONVERTIBLE

Genesis Advanced Technologies 7.1c Convertible Loudspeaker

Frequency Response 50Hz to 36kHz, 1r 3dB

Sensitivity 87 dB 1 want meter

Max/Min Tube Power 250/45 watts

Max/Min Solid State Power 500/60 watts

Input Impedance 6 ohms (nominal)

HF Transducers Two Genesis 1" circular ribbon (front & rear)

Mid-Woofer Transducers Two Genesis 55" titanium cone

Controls Front Tweeter Level (t 1.0 dB)

Rear Tweeter Defeat

Inputs Speaker level 5-way binding posts

Outputs Speaker level throughput with 5-way binding posts

Dimensions H233/4XW7%"XD11

H 603mm x W 200mm x D 278mm

Weight 30 lbs (13.6 kg)
Finish Options

Maple body with Cebuano Rosewood (Standard Finish)
Other finishes to be advised

* Specifications are subject to change without notice

abselmefldelmL

Genesis Advanced Technologies, Inc. 0 4407 6h Ave NW 0 Seattle, WA 98107 0 USA c 206.789.3400 0 www.genesisloudspeakers.com
