Genesis 2 owners manual

Page 1

m

6.57

Evolution in progres:

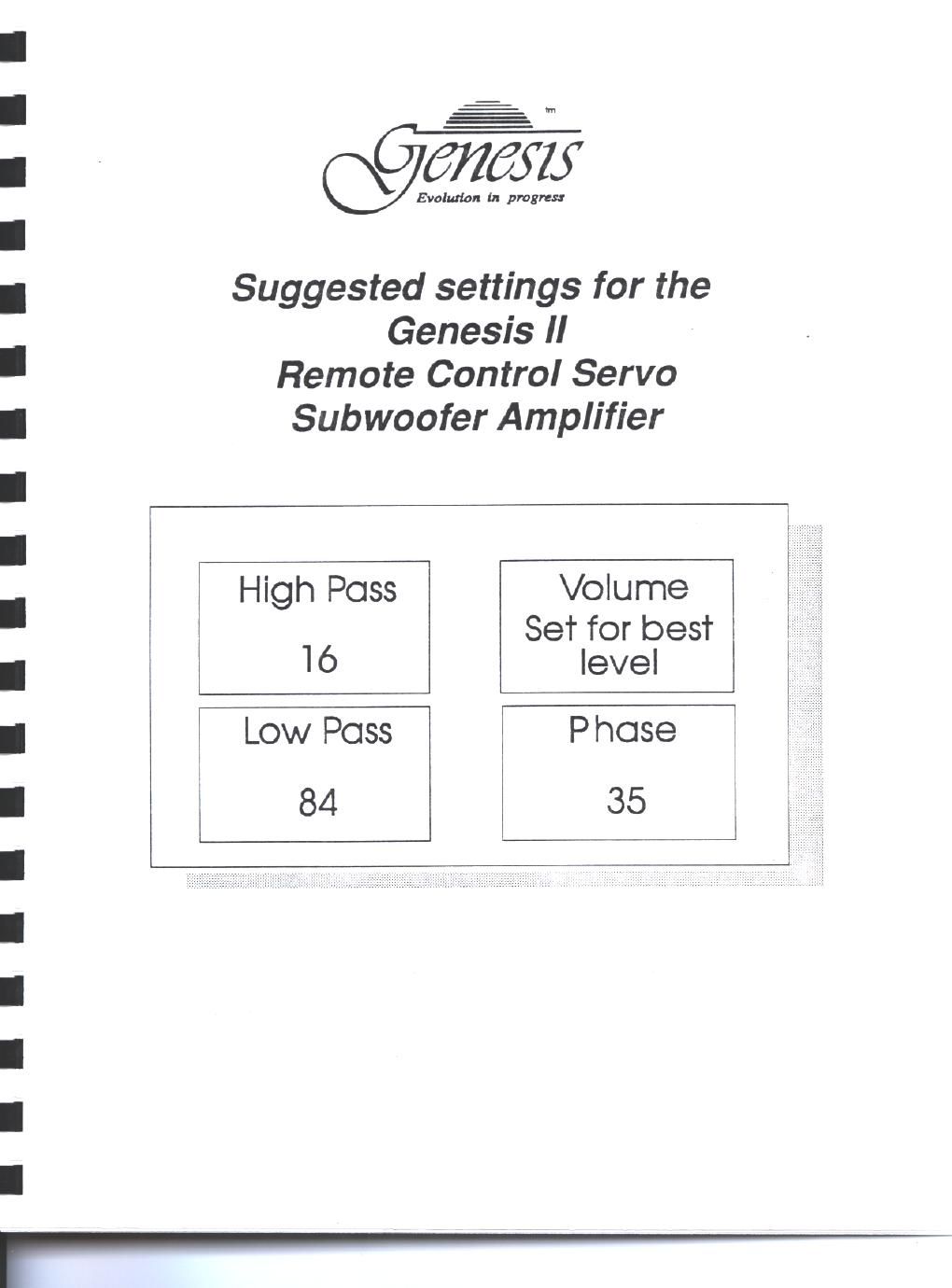

Suggested settings for the
Genesis II
Remote Control Servo
Sub woofer Amplifier

High Poss Volume

Set for best
16 level

Low Poss P hose

84 35

Page 2

Mi

517657

Evolution bl progren

i i

Quick set up guide
for Genesis II
System

Unpacking; The Genesis II system will arrive in 5 pieces. There are two woofer
crates. two wing crates. and one amplifier crate.

To remove the contents of all crates. you will need help. We suggest a minimum of two
strong people to move products around.

Start with the woofer crates. They are the long rectangular crates. Remove the
screws from the top piece and open up. Remove the woofer towers, remove the
packing material. Look inside the box and get the two heavy woofer cables out and set
aside. Set aside.

Next, remove the wings and center sections. Unscrew only the bottom row of
screws. Do not remove any other screws except the ones going along the outside
perimeter of the crate.. inside each there are two rosewood wings. one center section.
and one crossover box attached to the rear. They
are fully assembled.

Position the Wing bases first. Set the wing bases

down first. You want these about 1/3 the way into 1/3
the room. You want to sit 2/3 in the room. spew
As far as distance apart. you want to make a triangle
with equal distance sides. You will be at the point of
the triangle. The middle of each wing base will be at
the end oi each side of the triangle.

Make sure that the wing is parallel to the rear -
wall. 00 not toe them in. Make sure they are

perfectly straight, and make sure that they are 1/3
each exactly the same distance from the rear
wall. Use a tape measure to be sure.

You
