E ETM
=----=-_E as: E
-__-= _ === a:
imamwmmm

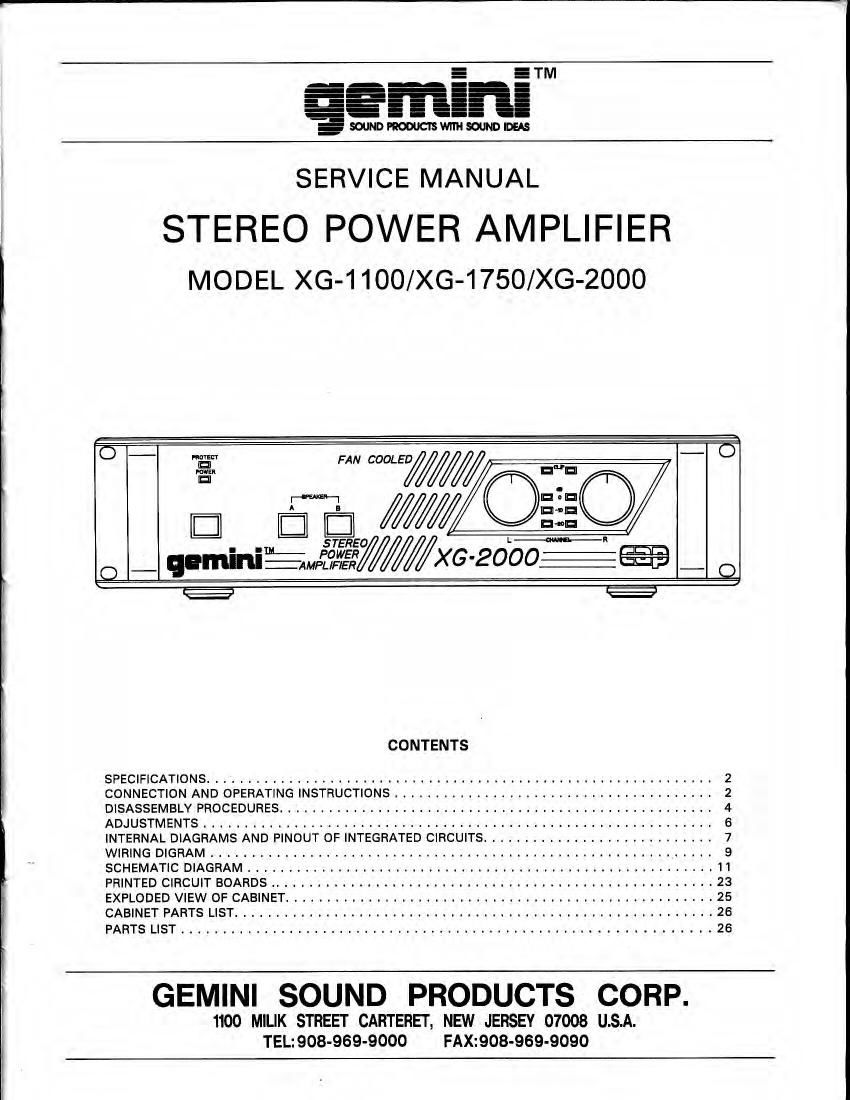

SERVICE MANUAL
STEREO POWER AMPLIFIER
MODEL XG-1100/XG-1750/XG-2000
E
Egflg
; 2% @2220) :O/ _
__ quminibmifprgflfl/ X6 -2000 _
=
CONTENTS
SPECIFICATIONS .............................................................. 2
CONNECTION AND OPERATING INSTRUCTIONS ....................................... 2
DISASSEMBLY PROCEDURES ..................................................... 4
ADJUSTMENTS .............................................................. 6
INTERNAL DIAGRAMS AND PINOUT 0F INTEGRATED CIRCUITS ............................ 7
WIRING DIGRAM ............................................................. 9
SCHEMATIC DIAGRAM ......................................................... 11
PRINTED CIRCUIT BOARDS ...................................................... 23
EXPLODED VIEW OF CABINET .................................................... 25
CABINET PARTS LIST .......................................................... 26
PARTS LIST ............................................................... 26
GEMINI SOUND PRODUCTS CORP.
1100 MILIK STREET CARTERET, NEW JERSEY 07008 U.S.A.
TEL:908-969-9000 FAX:908-969-9090
Page 2
SPECIFICATIONS
XG-1 100 Momentary Music Peak Power at (Hz : 500 watts
Maximum Power Output (HMS) at 1KHz : 240 watts 8 Q Bridged Mono
120 watts at 4 O
85 watts at B Q
Total Harmonic Distortion : Less Than 0.08% at rated
Power Output into B :1
Frequency Response : 20Hz to 60 kHz (+Ol-3dB)
Signal To Noise Ratio : 98 dB (IEC-A)
Output Section : 4-16 I)
Indicators : Power 81 Protection
Power Consumption : 500 wattsiMax.)
Dimensions : 19"(Lix3 3/4(H)x10 1/2"(D)
483mm(Wi XS4mmIH) x267mmID)
Weight : 19.4 lbs. (8.8Kgs)
Rack : 2.1 U rack spaces
XG-1750 Momentary Music Peak Power at (Hz 2 800 watts
Maximum Power Output IRMS) at 1KH2 : 360 watts 8 Q Bridged Mono
180 watts at 4 Q
125 watts at 8 (1
Total Harmonic Distortion : Less Than 0.08% at rated
Power Output into B (2
Frequency Response : 20Hz to 60 kHz (+0/-3dB)
Signal To Noise Ratio : 98 dB (IECvA)
Output Section : 4-16 0
Indicators 2 Power 8i Protection
Power Consumption : 800 wattsIMax.)
Dimensions : 19"ILIX4 3/8(Hi><10 1/2ID)
483mmIW) x110mmIHi x287mmID)
Weight : 21.4 lbs. (9.7Kgs)
Rack 2 2.5 U rack spaces
XG-2000 Momentary Music Peak Power at lkHz : 1000 watts
Maximum Power Output (RMS) at lKHz : 500 watts 8 Q Bridged Mono
250 watts at 4 n
160 watts at 8 Q
Total Harmonic Distortion : Less Than 0.08% at rated
Power Output into B (1
Frequency Response : 20Hz to 60 kHz (+Ol-3dB)
Signal To Noise Ratio : 98 dB IIEC
Indicators : Power 8: Protection
Power Consumption : 1000 wetts(Max.i
Dimensions : 19"ILIX4 3/8"IH)X10 1/2IDI
483mmIW) x110mm(H) x267mm(D)
Weight : 21.6 lbs. (9.8Kgs)
Rack : 2.5 U rack spaces
CONNECTION AND OPERATING INSTRUCTIONS
2 3 4 5 8 6
O E m cauEWfl :2 ~-
g a D////// 555
O _ gemini:7mf;i:%w///// XG-2000:%% _
%=i
