Extracted text from gemini sound pmx 1100 service manual (Ocr-read)

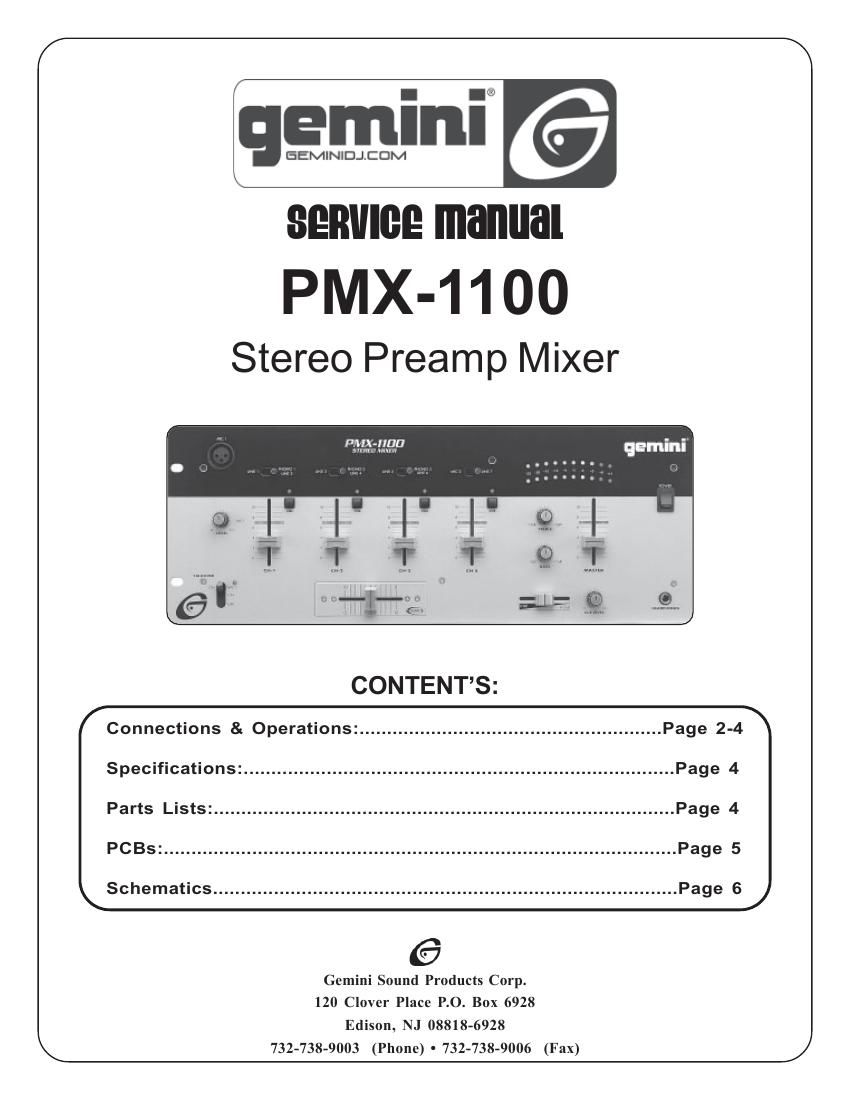

Page 1
Page 2 1 7 9 11 13 8 10 12 14 2 3 4 5 6 18 18 24 22 23 20 21 15 31 32 34 38 35 36 42 39 45 37 43 40 3741 33 17 19
Page 2
Page 3 6. Headphones can be plugged into the front panel mounted HEADPHONE (4) jack. Operation 1. POWER ON: Once you have made all the equipment connections to your mixer, press the POWER SWITCH (1). The power will turn on and the POWER LEDS (17) will glow. 2. CHANNEL 1: Switch # (7) allows you to select the PHONO 1/LINE 2 (41) or the LINE 1 (43) input. The CHANNEL SLIDE (8) controls the input level of this channel. 3. CHANNEL 2: Switch # (9) allows you to select the PHONO 2/LINE 4 (38) or the LINE 3 (40) input. The CHANNEL SLIDE (10) controls the input level of this channel. 4. CHANNEL 3: Switch # (11) allows you to select the PHONO 3/LINE 6 (35) or the LINE 5 (37) input. The CHANNEL SLIDE (12) controls the input level of this channel. 5. CHANNEL 4: Switch # (13) allows you to select the LINE 7 (34) or the MIC 2 (33) input. The CHANNEL SLIDE (14) controls the input level of this channel. 6. CROSSFADER SECTION: The CROSSFADER (2) allows the mixing of one source from CHANNEL 2 into another source from CHANNEL 3. The CROSSFADER (2) in your unit is removable and if the need arises can be easily replaced. Crossfader units are available in three varieties. Part # RF-45 (which is identical to the crossfader supplied with the mixer) has a 45 mm travel from side to side. Part # RF-30 is available with a 30 mm travel distance. Also available is the PSF-45 with a special curve designed for scratch mixing. Just purchase one of these crossfader units from your Gemini dealer and follow these instructions: Introduction Congratulations on purchasing the Gemini PMX-1100 mixer. This state-of- the-art mixer is backed by a three year warranty, excluding crossfader and channel slides. Prior to use, we suggest that you carefully read all the instructions. Features - 4 Stereo Channels - State of the Art Cue Section - 3 Phono/Line Convertible, 4 Line, and 2 Mic Inputs - Talkover - Master and Record outputs - Master Treble and Bass Controls Cautions 1. All operating instructions should be read before using this equipment. 2. To reduce the risk of electrical shock, do not open the unit. There are NO USER REPLACEABLE PARTS INSIDE. Please refer servicing to a qualified service technician. In the U.S.A., if you have any problems with this unit, call 1-732-738-9003 for customer ser vice. Do not retur n equipment to your dealer. 3. Do not expose this unit to direct sunlight or to a heat source such as a radiator or stove. 4. This unit should be cleaned only with a damp cloth. Avoid solvents or other cleaning detergents. 5. When moving this equipment, it should be placed in its original carton and packaging. This will reduce the risk of damage during transit. 6. DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. 7. DO NOT USE ANY SPRAY CLEANER OR LUBRICANT ON ANY CONTROLS OR SWITCHES. Connections 1. Plug in the 15V AC Adapter (37). 2. Make sure that the POWER (1) switch is in the off position. The POWER LEDS (17) will be off. 3. The PMX-1100 is supplied with 2 sets of output jacks. The MAIN OUTPUT (31) jacks are unbalanced and used to connect to your main amplifier. The REC OUTPUT (32) jacks can be used to connect the mixer to the record input of your recorder enabling you to record your mix. 4. The MIC 1 (3) input (found on the front panel) accepts an XLR connector, and accepts balanced & unbalanced microphones. The MIC 2 (33) accepts a 1/4 connector and balanced & unbalanced microphones. 5. On the rear panel are 3 stereo PHONO/LINE (35, 38, 41) inputs and 4 stereo LINE (34, 37, 40, 41) inputs. The PHONO/LINE SWITCH (36) enables you to set the (35) input to Phono or Line. The PHONO/LINE SWITCH (39) enables you to set the (38) input to Phono or Line. The PHONO/LINE SWITCH (42) enables you to set the (41) input to Phono or Line. The phono inputs will accept only turntables with a magnetic cartridge. A GROUND SCREW (45) for you to ground your turntables is located on the rear panel. The stereo line inputs will accept any line level input such as a CD player, a cassette player, etc. 1. Unscrew the outside FADER PLATE SCREWS (B). Do not touch the INSIDE SCREWS (C). 2. Carefully lift the fader and unplug the CABLE (D). 3. Plug the new fader into the cable and place it back in the mixer. 4. Screw the fader to the mixer. 7. OUTPUT CONTROL SECTION: The level of the AMP OUT (31) is controlled by the MASTER (23) slide. The Master TREBLE (20) and BASS (21) controls allow you to adjust the output of channels 1 - 4. NOTE NOTENOTE NOTE NOTE: The RECORD OUT (32) RECORD OUT (32) RECORD OUT (32) RECORD OUT (32) RECORD OUT (32) has no level control. The level is set by the channel slides of the selected channel. 8. TALKOVER SECTION: The purpose of the talkover section is to allow the program playing to be muted so that the MIC can be heard above the music. The MIC/TALKOVER SWITCH (5) controls MIC 1 and has three settings. When the MIC/TALKOVER SWITCH (5) is in the bottom position, the MIC and talkover are off. When the MIC/ TALKOVER SWITCH (5) is in the center position MIC 1 is on, the MIC INDICATOR (6) will glow, but talkover is off. When the MIC/ TALKOVER SWITCH (5) is in the top position, MIC 1 and talkover will be on and the volume of all sources except the MIC input are lowered by 16dB. The MIC LEVEL (15) controls the level of MIC 1.
