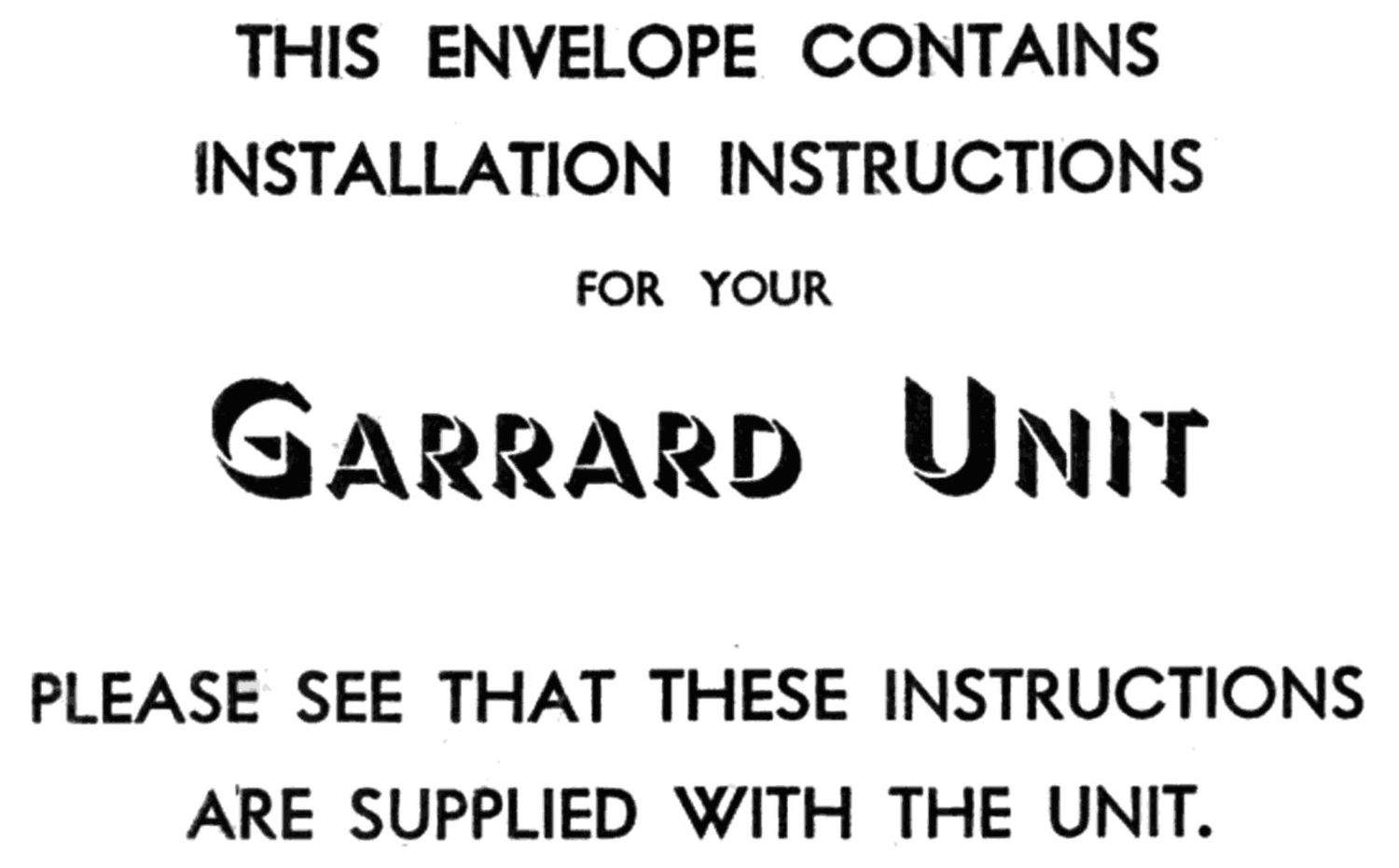

THIS ENVELOPE CONTAINS
INSTALLATION INSTRUCTIONS

FOR YOUR

GARRARD UNIT

PLEASE SEE THAT THESE INSTRUCTIONS
ARE SUPPLIED WITH THE UNIT.

Page 2

Gama/1A LAB so

summary of operating instructions

Manual Play

1. Use short record spindle. check speed control
setting. remove stylus guard. iflitted.

2. Release pickup arm safety catch. move manual
control to Manual". Position the pickup arm
over record. squeeze cueing control to lower
pickup.

To raise pickup at any time. move manual
control to Manual"; to lower. squeeze cueing
control.

Automatic Play

1. Fit automatic record spindle. This can only be
fitted or withdrawn with unit in automatically
switched-off position.

2. Check speed and record size selected. Load
records. switch on by moving auto control to
"Auto".

OUVD ONVlS 01 383}! (110:!

Note that the unit features a
safety lock to prevent changing
speed while playing. also the
turntable should not be rotated
counterclockwise.

To Stop

To temporarily stop. move manual control to
Manual". this raises pickup. then move control to
Oil".

70 Reject
Move auto control to Auto".

If you need to remove the pickup
head. take care when replacing.
that the tracks on the head locate
against the underside of the arm.
thus aligning the connector pins
correctly.

Setting Bias Compensator overleaf
