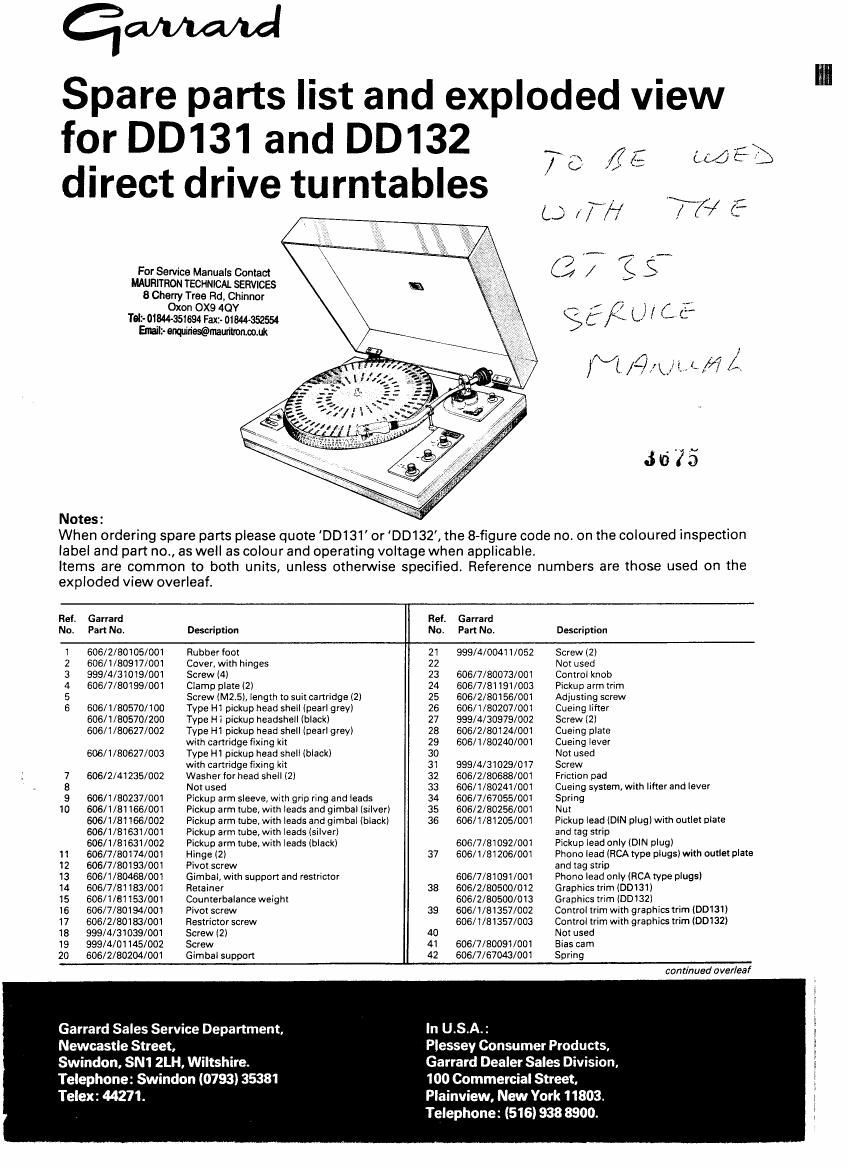

Page 1

aim/Lei

Spare parts list and exploded view
for DD131 and DD132 7 K, we,

a» L

direct drive turntables

For Service Manuals Contact
MAURITRON TECHNICAL SERVICES
8 Cherry Tree Rd, Chinnor
Oxon OX9 4QY
Telz- 011144351894 Faxz- 01644-352554

Emulz- enquries@mauritron.w.uk

3075

Notes:
When ordering spare parts please quote DD131' or DD132, the 8~figure code no. on the coloured inspection
label and part no., as well as colour and operating voltage when applicable.

items are common to both units, unless otherwise specified. Reference numbers are those used on the
exploded view overleaf.

Rel, Garrard Rel. Garrard
No. Part No, Description No. Part No. Description
1 606/2/80105/001 Rubber foot 21 999/4/00411/052 Screw (2)
2 606/1/80917/001 Cover, with hinges 22 Not used
3 999/4/31019/001 Screw (4) 23 606/7/80073/001 Control knob
4 608/7/80199/001 Clamp plate (2) 24 606/7/81191/003 Pickup arm trim
5 Screw (M25), length to suit cartridge 12) 25 606/2/80156/001 Adjusting screw
6 606/1/80570/100 Type H1 pickup head shell (pearl grey) 26 606/1/80207/001 Cuelng lifter
606/ 1/80570/200 Type Hi pickup headshell (black) 27 999/4/30979/002 Screw (2)
606/1 /80527/002 Type H1 pickup head shell (pearl grey) 28 606/2/80124/001 Cueing plate
with cartridge fixing kit 29 606/1/80240/001 Cueing lever
606/1/80627/003 Type H1 pickup head Shel) (black) 30 Not used
with cartridge fixing kit 31 999/4/31029/017 Screw
7 606/2/41235/002 Washer for head shell 12) 32 606/2/80688/001 Friction pad
8 Not used 33 606/1/80241/001 Cuemg system, with litter and lever
9 606/1/80237/001 Pickup arm sleeve, With grip ring and leads 34 606/7/67055/001 Spring
10 606/1 /81 166/001 Pickup arm tube, wrth leads and gimbal (silver) 35 606/2/80256/001 Nut
806/1/81166/002 Pickup arm tube, with leads and gimbal (black) 36 606/1/81205/001 Pickup lead lDlN plug) with outlet plate
606/1/81631/001 Plckup arm tube, with leads (silver) and tag strip
606/1/81631/002 Pickup arm tube, with leads (black) 606/7/81092/001 Pickup lead only lDlN plug)
11 606/7/80174/001 Hinge (2) 37 606/1/81206/001 Phono lead (RCA type plugs) with outlet plate
12 606/7/80193/001 Pivot screw and tag strip
13 606/1/80468/001 Gimbal, with support and restrictor 606/7/81091/001 Phone lead only (RCA type plugs)
14 606/7/81183/001 Retainer 38 606/2/80500/012 Graphics trim (DD131)
15 506/1/81153/001 Counterbalance weight 606/2/80500/013 Graphics trim lDDt32)
16 605/7/80194/001 Pivot screw 39 606/1/61357/002 Control trim with graphics trim (DD131)
17 606/2/80183/001 Restrictor screw 606/1/81357/003 Control tyimwith graphics trim (00132)
18 999/4/31039/001 Screw 12) 40 Not used
19 9951/4/01 145/002 Screw 41 606/7/80091/001 Bias cam
20 606/2/80204/001 Gimbal support 42 606/7/67043/001 Spring

continued over/eaf

Garrard Sales Service Department, In USA:
Newcastle Street, Plessey Consumer Products,

Swindon, SN1 ZLH, Wiltshire. Garrard Dealer Sales Divisio

Telephone: Swindon (0793) 35381 100 Commercial Street,

Telex: 44271 . Plainview, New York 11803.
Telephone: (516) 938 8900.

i
i
l
i
l
:

Page 2

Ref. Garrard Ref. Garrard
No Part No. Description Not Part No. Description
43 Not used 133 999/4/30979/006 Screw (2)
44 606/7/80092/001 Bias cam (ollower 134 606/7/79977/001 Impulse link
45 999/4/00431/046 Spring clip (2) 135 999/4/30976/002 Screw
46 606/ 7 / 80203/001 Bias leVer 136 999/ 4/ 30979/ 008 Screw (2)
47 606/1 /80474/001 Bias plate, with lever, cam and follower 137 999/4/00431/002 Spring clip
48 606/4/42561 Bowed washer 138 506/7/80400/001 Trip pawl
43 606/2/41234/002 Washer 139 606/7/80399/001 Trip friction lever
50 Not used 140 Not used
51 999/4/31029/017 Screw (2) 141 Not used
52 999/4/01515/020 Screw 142 Not used
53 9519/4/01 167/004 Spring clip 143 606/7/44568/001 Spring
54 606/2/78476/001 Nut (2) 144 606/1/81114/001 Main cam, with lever and pawl
55 606/1/79982/001 Overload casting, with screws 145 606/1/78742/001 Pinion spindle with clip
56 991/4/01665/039 Screw (Z) 146 506/1/79793/001 Pinion moulding
57 606/4/44448/001 Overload spring 147 606/2/41234/002 Washer (2)
58 606/2/81123/001 Vertical pivot support 143 999/4/31003/001 Fastener (2)
59 606/1/81121/001 Pickup spindle 149 Not used
60 Not used 150 Not used
61 606/1/80467/001 Pickup lever, with overload casting 151 Not used
62 606/2/80163/001 Collar 152 999/4/30979/002 Screw
63 606/2/80143/001 Nut 153 999/4/31029/036 Screw (4)
64 606/1/80472/001 Selector actuating leverwirh link (D0132) 154 608/7/78675/001 Lower bearing
65 606/7/80191/001 Size selector link (DD132) 155 606/7/43217/001 Ball
66 606/2/41218/068 Washer (3) (DD132) 156 605/7/44644/001 Spring
67 999/4/30993/002 Fas' ner (D0132) 157 606/7/80662/001 Programme lever
68 605/4/79526/001 Spring clip (DD132) 158 606/1 /81 146/001 Modular mechanism, complete, with pickup
69 606/4/79526/001 Spring clip lever
70 Not used 159 999/4/00687/006 Spring clip
71 606/2/41234/003 Washer 160 606/2/41218/055 Washer
72 999/4/31029/047 Screw (B) 161 606/7/44690/001 Spring
73 Not used 162 606/2/80719/001 Ro)ler
74 Not used 163 606/7/67048/001 Wire clip
75 Not used 164 606/1/81115/001 Cam lever, with roller
76 999/4/30979/001 Screw 165 606/4/67050/001 Spring
77 606/7/79879/001 Lifting blade 166 606/7/81116/001 lndex lever
78 Not used 167 999/4/02654/001 Spring clip
79 999/4130979/002 Screw 168 606/7/78973/002 Drive belt
80 Not used 169 999/4/31029/021 Screw
B1 606/7/78672/001 Selector lever 170 Not used
82 606/2/79724/001 Inter-selector lever 171 606/1/79983/001 Support plate
83 999/4/00431/002 Spring clip 172 408/4/51881/001 Microswitch (2)
B4 606/4/79526/001 Spring clip (3) 173 999/4/30979/001 Screw (00131)
85 606/7/80101/001 Switch lever (3) 174 501/1/61530/001 Low tension loom with microswitches
86 Not used 175 606/ 1 /8021 7/007 Control plate, with programme actuating
B7 606/7/80171/001 Ball and switch levers (D0131)
88 606/7/44644/001 Spring 606/1 /80217/004 Control plate. with programme actuating
39 606/1/80222/001 Control moulding (3) and switch levers (D0132)
90 806/7/80093/001 Programme actuating lever 176 606/2/81377/001 Spacer
91 606/7/80073/001 Control knob (3) 177 999/4/31029/017 Screw (3)
92 Earth lead (part 0136 or 37) 178 606/1/81565/001 Powersupply transformer
93 606/4173057/001 Terminal strip 179 999/4/30993/004 Fastener
54 Outlet plate (part of 36m 37) 180 991/4/01728/005 Nut (3)
95 Rivet (pan01360r37) 181 999/4/00852/008 Shakeproatwasher (3)
96 999/4/31029/017 Screw 182 606/2/41234/003 Washer (3)
97 999/4/31029/017 Screw 183 606/7/80102/001 Grommet (2)
98 999/4/00431/036 Spring clip 184 606/2/41218/026 Washer (2)
99 702/4/26564/001 Heyco' bush 185 999/4/00432/007 Spring clip (2) .
100 Not used 186 606/2/72698/001 Adaptor for large hole records
101 606/7/80504/001 Cueing lever knob 187 606/7/80098/001 Turntable mat r
102 606/7130075/001 Cueing trim 188 606/1/78251/069 Screw (3) C e
103 606/1/80939/003 Mains lead with Europlug and strain relief plate 189 606/2/81145/001 Mat centre
104 606/1/80939/009 Line Card with flat»pin plug (USA) 190 606/2/31579/001 Turntable
and strain relief plate 191 606/2/81095/001 Turntable hub
105 606/1/80938/007 Mains lead (U.K.) with strain relief plate 192 999/4/30979/030 Screw (3)
106 606/7/67053/001 Spring 193 606/7/81203/001 Cover A
107 606/1/80229/001 Lifting platform with insert 194 501/2/61563/002 Thrust plate (nylon) -
108 606/2/80086/001 Insert 195 501/2/61563/001 Thrust plate (steel)
109 606/2/80167/001 Screw 196 606/1/80574/001 Pitch control knob
110 991/02077/039 Screw 197 999/4/30979/003 Screw (3)
111 Not used 198 1306/7/81 168/002 Pitch control trim
112 506/2/75392/001 Tilt wedge 199 506/2/51565/001 Unit plate moulding
113 606/2/80696/001 Auxiliary weight 200 Not used
114 991/4/02018/105 ScrEW (3) 201 999/4/02321/004 Flanged screw (6)
1 15 606/2/41234/003 Washer (6) 202 419/7/41514/001 Printed circuit board. See Note 1
116 Pickup cartridge (please state tvpe) 203 999/4/31029/017 Screw (A)
117 606/2/78480/001 Nut (2) 204 702/1/26563/001 L.EtD. with lead
118 501/2/61538/001 Mounting plate 205 606/7/67066/001 Spring (4)
119 606/2/31376/001 Spacer (3) 206 606/7/31102/001 Isolatcrfoot (4)
120 501/1/61525/001 Garrard Type DDMZ direct drive motor 207 Not used
complete with belt and mounting plate. 208 606/2/81103/001 Isolator toot bush (4)
See Note 1 209 999/4/31029/021 Screw (4)
121 501/1/60343/173 Earth lead 210 Not used
122 999/4/00052/022 Shakeproofwasher 211 606/ 1/81 167/001 Bottom cover (US/Canada)
123 999/4/30979/030 Screw 606/ 1/81 167/002 Bottom cover (UK/Europe)
124 702/4/26564/001 'Hevco' bush (black)
702/ 4/ 26574/001 'Heyco bush (white) Note 1 The printed circuit board is 'trimmed to
125 606/ 2/ 81 085/ 002 Strain relief plate match the electronic characteristics of each
126 606/1/80233/001 Pickup rest individual motor by means of a fixed resistor
127 999/ 4/ 31 036/001 Lead clip and preset potentiometers on the board. When
128 999/4/30993/001 Fastener ordering either a PtCrBr, or a complete Type
129 999/4/00852/008 Shakeproot washer DDM 2 motor, please quote the colour of the
130 Not used mark (red, green or blue) on the motor casing
131 991/4101911/004 Nut nearthepomtatwhich the flexibleprintedcucuit
132 4108/4/51 383/001 Microswitch strip emerges.
