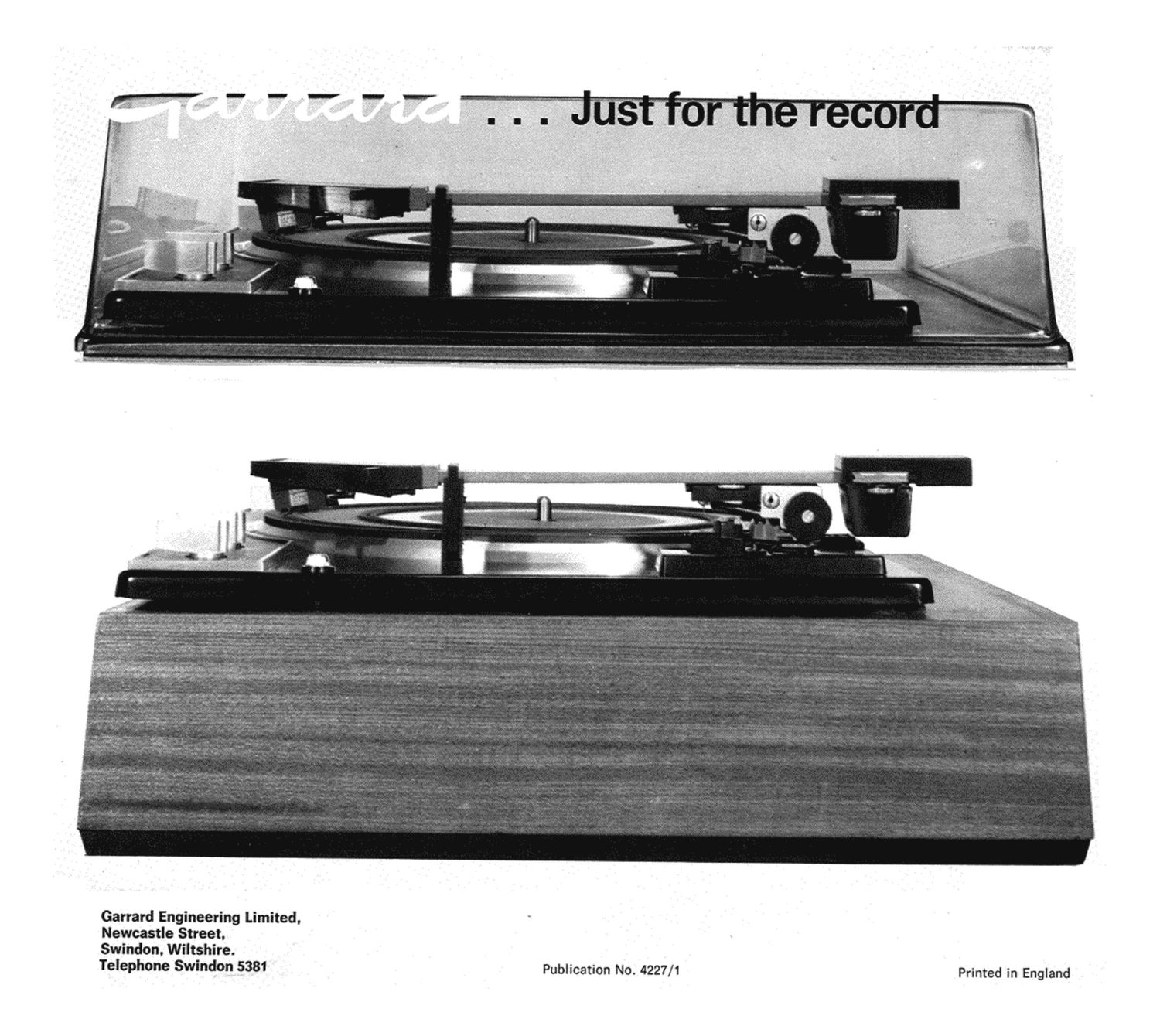

Garrard Just for the record Catalog

Page 1

Garrard Engineering Limited,
Newcastle Street.

Swindon. Wiltshire.
Telephone Swindon 5381

Publication No. 4227/1

Printed in England

Page 2

w

9%.

The Oueen's Award
to Industry 1966

Garrard Engineeriiig Limited,
Newcastle Street.

Swindon, Wiltshire.
Telephone Swlndon 5381

Garrard range
feature comparison
chart.

From the original Garrard spring wound gramophone
motor to the present outstanding Model 401 Transcription
Turntable lies nearly 50 years experience In the design
and manufacture of record playing equipment.

This wide experience ls reflected in the high quality and
reliability of all Garrard units. and we present with
confidence this brochure covering the current Garrard
range.

A feature comparison chart is provided to enable a ready
assessment to be made of the various models.
Illustrations of the complete range. together with a brief
description and dimensions of each unit. are included.
Garrard models are available from your dealer as separate
units or fitted in most makes of complete radiograms and
record players.

0 Every Garrard Unit is 100% inspected with the latest
electronic test equipment to make sure that It conforms
to the high standard of quality and reliability for which
Garrard are world-wide renowned.

0 Each model has been specially designed to meet
specific and exacting requirements giving a complete
range from the highest quality transcription turntable to
the popular priced automatic and single record playing
units.

0 Leading designers keep Garrard to the forefront in
contemporary styling.

. Special durable finishes are used. making every
Garrard unit suitable for tropical conditions.

. Garrard units are suitable for mono and stereo
reproduction and all automatic turntables have facilities
for manual [single record) operation.

Q Each unit is supplied with template (giving all
dimensions) . transit or fixing screws, installation and
operating instructions. Spring mountings are fitted to all
units except the Model 401.

0 Units not supplied with pickup cartridge should be
fitted with the cartridge of your choice. For advice.
consult your dealer.

0 All Garrard models are designed to play records
conforming to LED. Publication 98. BSt928:1965. and
equivalent national standards.

Pickup Cartridges

In order to maintain the slim-line appearance of the pickup
arms on the Models 3500 and 2025 Tc. clip-In cartridges
having a narrow bracket with single hole fixing must be
used. Cartridges having suitable brackets are Garrard

"GCMZZ-T. GKM24-T and GKSZS-T.

Models 1025 and 2025 will accept cartridges with
mounting brackets having 2-hole fixing G (12 mm)
centres] and width not exceeding 0.63" (16 mm].
See price list for those models supplied with pickup
cartridge already fitted.

Note: The actual dimensions of the unit are given and
where applicable Include the rear and side overhang of
the pickup arm.

Clearances required when spring mountings are fitted will
be obtained by adding 1 [12 mm) to all dimensions. This
will give i [6 mm) clearance all round edge of unit and
i (12 mm] above and i (12 mm) below allowing unit to
float freely and to be clamped for transit.

According to the design of cabinet or case. additional
clearance may be required for 12 records and for
removal of record spindle.

Motors: All units are fitted with precision built Garrard
electric motors specially designed to give exceptionally
smooth. silent running. Rotors are dynamically balanced
to a high degree of accuracy. the shafts are specially
hardened and superflnished and the self-aligning
bearings are of oil-retaining sintered bronze.

Motors for the units described on this leaflet can be of
the synchronous. two- or four-pole a.c. induction or
battery~operated d.c. permanent-magnet type. The type
of motor fitted to each unit is shown on the comparison
chart. On induction motors Low Range refers to

100 - 130 volts. High Range to 200 - 250 volts and High
and Low Range combines both by means of a voltage
changeover block. Units fitted with 4-pole induction and
synchronous motors listed as High Range models are
also available as Low Range versions to special order.
On Models 401. SRP 22 and those with Synchro-Lab
motors these ranges are limited to 110 - 125 volts and
220 - 250 volts. Current consumption of induction and
synchronous motors ranges from 8 to 12 watts according
to the model. Frequency can be either 50 or 60 Hertz
which should be specified when ordering.

The Garrard battery-operated motor is of robust
construction and its speed is controlled by a centrifugal
electrical governor. The voltage range is 6.5 V to 9 V dc.
and its average consumption is 50 mA.

Model Type Turntable MN!- W Speeds Volt-go Type of Pickup Ann Record Spindles and on
"T' 31" . Range Electric Adaptors "*
records Selection (-9) Mom.- w um
um "'10" ' win. new

in we fix spam
3 Wmlmml am commotion mm mm W
53.3 1- arm-1r o e 10 ggrieiasyis re 7; 4: «gr-ace E g 5 it: h a sa ggg'g 2 3 meme-I
iifiimmwm? =§ gait;gziggtégiaéigigggs;ggtggggggigwfig
8 5 3 mm mm mm mm g 33 g 2 E 3 it E 33 g 2 5 5 s 33 3% E g g éEsuzgéacR E 8 ii
is s 2: £==§§§§§§§§£§§§3§§3§=§§5%5° «ii
" i z §~ i t g?» o g 3 g a . é a g r; 3
a 6 - E 7' i
401 e V o o o c o c o o 0 FR" o c o
SL95 0 O O O C C C O O O . O O O C C O . . . . . . . .
81.75 c o o o o o o o o o o o o o e o o o o o o o- o o o
SL65 0 o o o o o o o o o o o o o o o o o o o o o o
SLSS . . O O O O C . O C O O . . O . . C O . C
3500 o o o o o o o o o o o o o o o o o o o c o o
3000 C . . . . . O C O . O C C O C O O .
2025Tc o o c o o o o o o o o o o o o o o o o o
2025 o o o o o e o o o o o o c o c o o
1025 o o o o o o o o o o o o o o o o o e
AP'IS . O C . C . . O O C . O . O . O C C . . .
SPZSMKII o o o o o o o '- o o o 1' o o o o e o o o
seen 0 o o o o o o o o o o o c

Page 6

An exceptionally attractive four-speed record Meets the demand for a good quality unit at a very
changer with slim tubular pickup arm and cue and moderate price.
pause control: particularly interesting features Has one piece pickup arm and the large diameter
for a unit in this price range. turntable is fitted with an easily cleaned moulded
The moulded turntable mat is easily cleaned. mat. Automatically returns the pickup arm to its
Finish: Black and Silver. rest and switches off when record play is complete.
Size: 13;" [343 mm] wide by Hi [289 mm) front Finish: Black and Silver.
to rear by 413 (106.5 mm) above and 2}" (54 mm] Size: 13%" (343 mm) wide by 11% (289 mm] from
below lower edge of unit plate. to rear by 411; (106.5 mm) above and 2% (54 mm)
(See Note). below lower edge of unit plate.

(See Note).
Bases

Attractive wood bases are available for certain Garrard units. These bases
are constructed from natural wood and have a matt teak finish.
Instructions for fitting the unit to the base are included.

Leads. cord grips and plugs are not supplied: these should be obtained
from your dealer to suit individual requirements.

Bases are supplied ready cut out for mounting unit.

Types WBi and W85 for Models 1025, 2025. 2025 TC. 3000. 3500.

Sst Mk II. SL 55. SL 65.

Type W84 Mk ll for AP 75. SL 75. SL 95.

Overall sizes:

W81 14 (356 mm) x 12%" (311 mm] x 311; (81 mm).

W34 Mk II 15 (381 mm) x 15 (381 mm) x 4% (108 mm].

W85 15" (381 mm] x 15 (381 mm) x41 (108 mm).

Covers

Rigid transparent. plastic covers are available if required for the
above-mentioned bases.

Cover SPC4 Mk ll fits both W84 and WBS and units can be played
with this cover in position.

Cover SPC1 to fit W81 is designed to protect the unit from dust when
not in use only.

Sizes:

SPC4 Mk ll 15!" (397 mm) wide x 14;" (377 mm) front to rear x 417;
(113 mm) high.

SPCi height 43 (111 mm).

Spindles and Adapters

For records having 1% [38 mm) diameter centre hole. large record
spindles for automatic and adaptors for manual (single) play are available
as indicated on comparison chart.

Adaptors are available for the SL 75 and SL 95 for playing automatically
10 and 7 records having small centre holes.

Model 1025 W

A compact automatic turntable giving exceptional
value in the low price range.

Has one piece pickup arm and the moulded
tumtable mat is easy to clean. Battery-operated
version available.

Finish: Black and Silver.

Size: 13% (343 mm] wide by 113" (289 mm) front
to rear by 411;" (106.5 mm] above and 2%" (54 mm]
below lower edge of unit plate.

(See Note) .
