Garrard 6 100 200 300 Series Service Manual

Page 1

We!

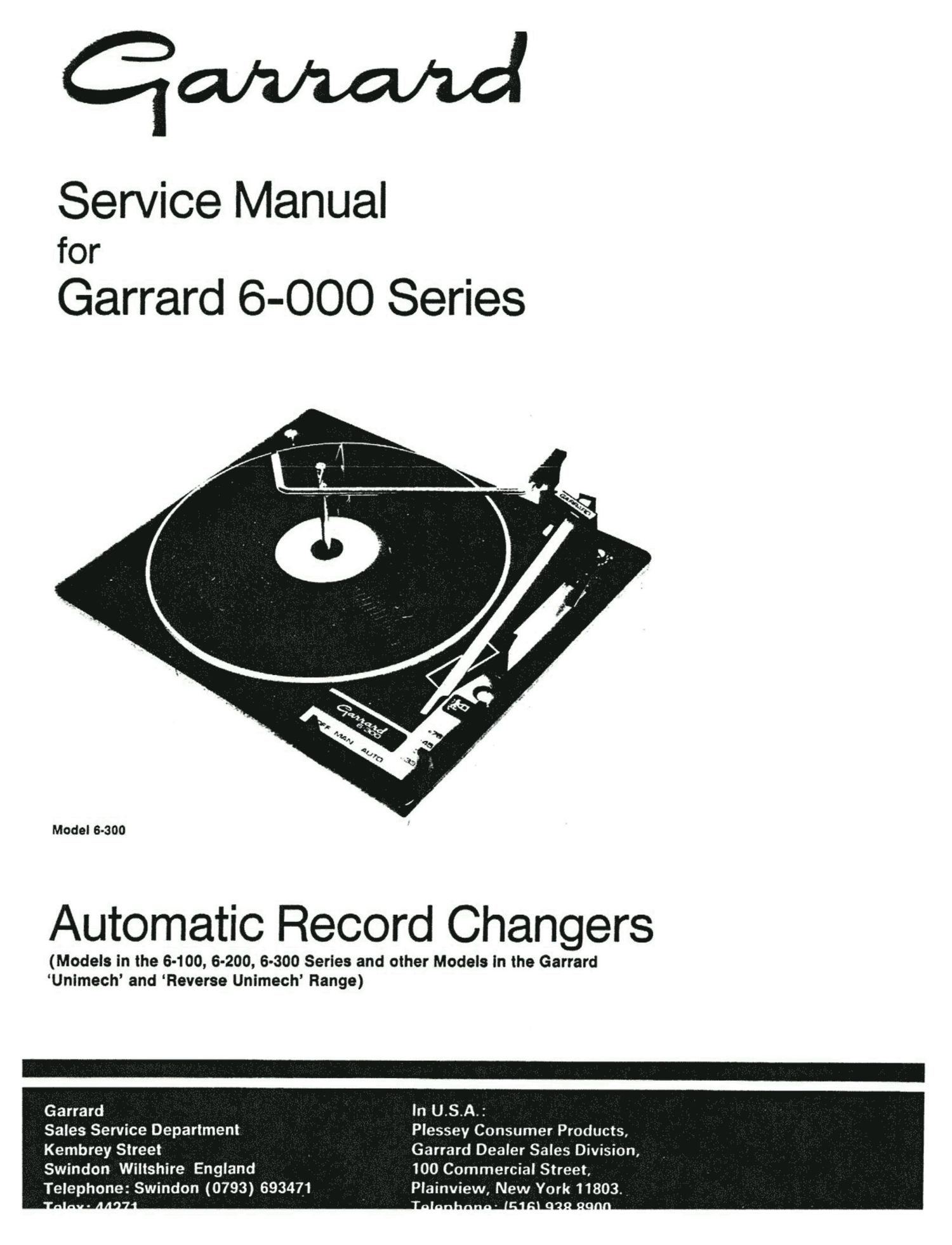

Service Manual

for
Garrard 6-000 Series

Model 6-300

Automatic Record Changers

(Models In the 6-100, 6-200, 6-300 Series and other Models in the Garrard
Unlmech and Reverse Unimech Range)

Garrard In USA:
Sales Service Department Plessey Consumer Products,
Kembrey Street Garrard Dealer Sales Division,

Swindon Wiltshire England 100 Commercial Street,
Telephone: Swindon (0793) 693421

Page 2

Contents

Index page
General Information 3
Installation 4
Installation Adjustments 5
Wiring 6
Fitting PiCKUp Cartridge 7
Adjustments 8
Operating Instructions 9
Parts Lists and Exploded View 10
Maintenance l6
Dismantling l7
Fault Charts IS
Diagrams

Transit Screw Assembly Diagram I
Spring Mounting Location . Diagram 2
Model 6-300 Installation Adjustments Diagram 3
Models 6-l00/6-200 Installation Adjustments Diagram 4
Power Supply Connector Diagram 5
Voltage Changeover Connections Diagram 6
Pickup Tag Strip Connections Diagram 7
Pickup Phono Socket Connections Diagram 8
Single-Hole Fixing Cartridge Diagram 9
Two-Hole Fixing Cartridge Diagram 10
Rear of Pickup Arm. Raised. Model 6-300 Diagram 11
Rear of Pickup Arm. Raised.

Models 6-I00/6-200 Diagram 12
Model 6-300. General View Diagram 13
Model 6-300. Turntable Removed Diagram 14
Model 6-300. Sub Plate Mechanism Diagram IS
Model 6-300. Underside View. 2-pole Motor Diagram 16
Model 6-300. Underside View, 4-pole Motor Diagram 17
Intermediate Wheel Height Adjustment Diagram I8

Page 2

Page 16

This chart may be used as a guide for all the models in this series.

FAULT CHART

THE UNIT SHOULD BE DISCONNECTED FROM ITS POWER SUPPLY AND THE STYLUS PROTECTED BEFORE
MAKING SERVICE ADJUSTMENTS. NUMBERS IN BRACKETS REFER TO THE EXPLODED VIEW.

FAULT CAUSE CORRECTION
TURNTABLE SPEED 1. Oil or dirt on driving 1. Remove turntable and clean inside of rim. periphery
Turntable fails to start or runs surfaces. of intermediate wheel (95) and motor pulley (73).

slowly when switched on.

IJ

Faulty intermediate wheel
spring (lZl ).

Pivots on support bracket
assembly (l 17) not free.

No power supply.

Faulty motor coil.

Bearings of motor (73) out
of line.

Intermediate wheel (95)
height set incorrectly.

Bearings not free.

Wrong pulley (4-pole

motor).

IQ

Check that tension spring (Ill) is anchored to the unit
plate and support bracket assembly (7). When the
operating control is turned to "Manual". spring (I21)
should pull the support bracket assembly into engage-
ment with motor pulley. If it does not. and the tapered
pin beneath the support bracket assembly (7) is not
found to be bent, replace spring (IZI).

Wheel (95) should engage motor pulley firmly when
the unit is switched on and retract when switched off.
Lubricate the two pivot spindles on the support bracket
assembly if they appear to be tight. Replace the support
bracket mechanism if damaged.

Remove plug (49) from motor (73). switch on and check
with voltmeter. If no reading. check back to source out-
let. looking for loose connections. faulty switch contacts.
etc.

Remove plug (49) from motor (73) to check continuity
of coil with an ohm-meter. Replace motor if necessary.
(Two plugs and two coils on 4-pole motor.)

If the rotor shaft is tight. tap the motor body with a
small block of wood such as a screwdriver handle to
realign bearings. Use only fine machine oil such as used
for sewing machines on these hearings.

Set as described under "Maintenance" and Diagram 18.

Check motor (73) intermediate wheel (95) and turntable
bearings for free running. See lubrication section under
Maintenance".

A 60Hz pulley will run the unit slowly on 50Hz supply.
(The pulley base diameter is smaller than the 78 rev/min
pulley step for SOHz and larger for 60Hz as identifica-
tion).

Record speed varies (Wow

and Flutter).

Page 18

. Various.

Warped records in stack
causing slipping.

Damaged rotor shaft of
motor (73).

Flats on driving surface of
intermediate wheel (95).

. See Turntable Speed above, Causes and Corrections 1,

7 and 8.

It is not advisable to play badly warped or dished
records automatically, although small strips of adhesive
tape on their labels may help adjacent records to key
together.

Replace motor (73).

If running the unit for a while does not cure the fault,
replace the wheel (95). (Do not switch the unit off from
the power supply before it has stopped automatically,
as the unretracted wheel (95) may form flats.)
