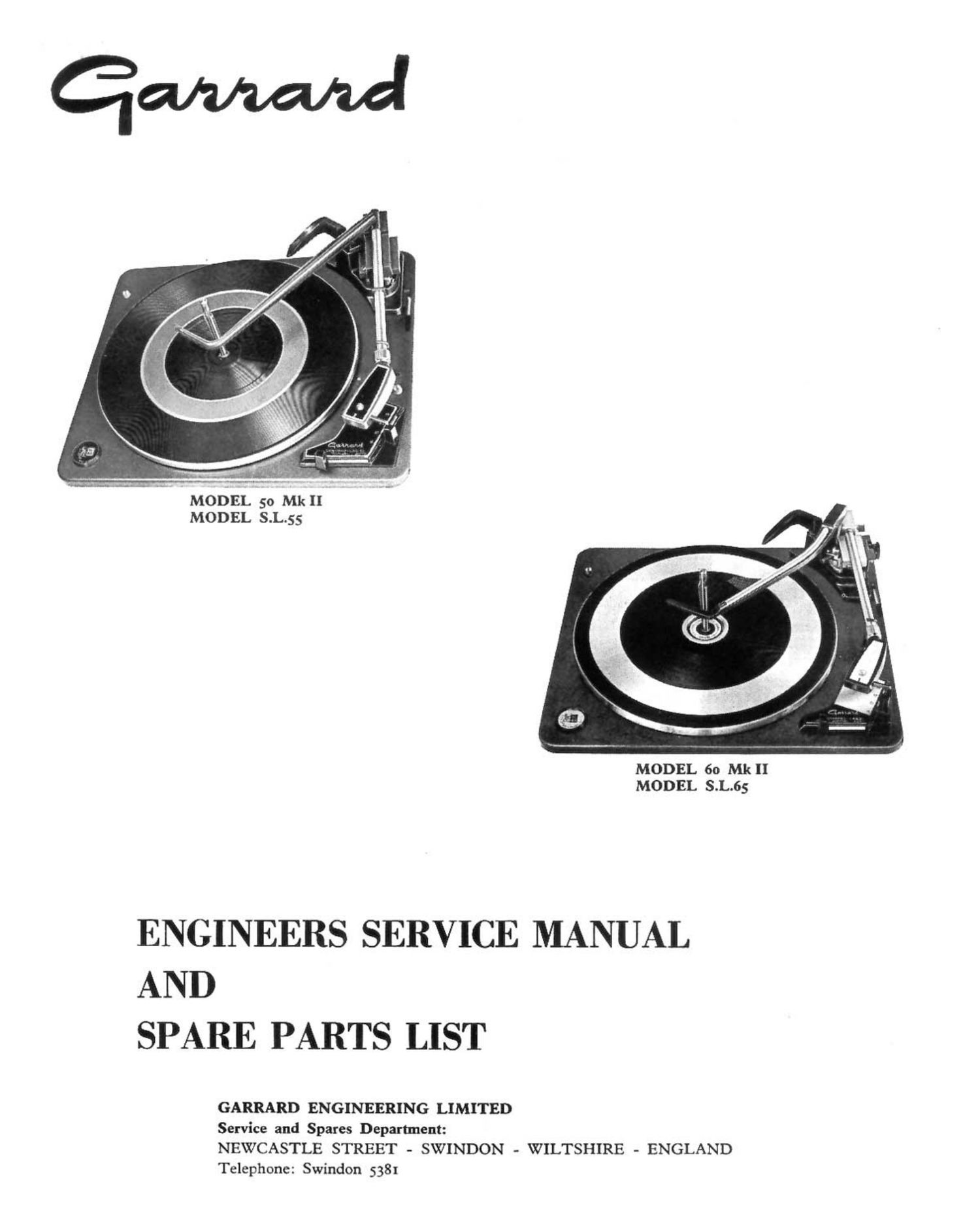

MODEL 50 Mk 11
MODEL S.L.55

MODEL 60 MR
MODEL 3.1.55

ENGINEERS SERVICE MANUAL
AND

SPARE PARTS LIST

GARRARD ENGINEERING LIMITED

Service and Spares Department:

NEWCASTLE STREET - SWINDON - WILTSHIRE - ENGLAND
Telephone: Swindon 5381

Page 2

Contents

General Information
Operating Instructions
Installation and Wiring
Maintenance

Service Adjustments
Record Changer Cycle
Exploded Views

Spare Parts List

Fault Chart

Diagrams

Diagram 1 Line Cord and Socket Connection
Diagram 2 Voltage Changeover Block Connection
Diagram 3 Phono Socket Connection

General Information

This manual serves for Garrard Models 50 Mk II, S.L.55,
60 Mk II and S.L.65. These units have the facility to play
records automatically or they can be used manually to play
single records.

Models 50 Mk II and S.L.55 are similar, having large
diameter steel turntable and diecast aluminium pickup arm
with fixed counterbalance weight. Pickup leads terminate at
a tag strip or a phono socket/muting switch. The major
difference between these two units is that Model 50 Mk II
may be fitted with either a two or a four pole induction
motor, whereas Model S.L.55 is fitted with the Garrard
Synchro Lab motor.

Models 60 Mk II and S.L.65 are also similar to each other.
They have a diecast turntable and tubular, counterbalanced
pickup arm with bias compensator. Pickup leads terminate
at a phono socket or muting switch. Again, the major differ-
ence between these two units is that Model 60 Mk II is fitted
with the Garrard Laboratory Series four pole induction
motor, whereas Model S.L.65 is fitted with the Garrard
Synchro Lab motor.

The Garrard Synchro Lab motor uses induction principles
to attain running speed: at that speed a magnetic element
then locks the rotor so that it runs synchronously with the
frequency of the power supply.

Common to all four units is the cueing device and auto
mechanism, and service engineers will note that these units
have been developed from Models 50 (also known in some
areas as 40 Mk II) and A.T.6o.

All models will play up to eight mixed records automatic-
ally of 7, 10 or 12 diameter. A short manual spindle
is supplied for single record play and large centre hole
records may be played automatically using adaptor L.R.S.
20 (optional extra). A single play adaptor is also available
for use with large centre hole records.

These units also feature plastic foam damped spring sus-
pensions and a plug-in pickup head, designated M7, which
will accept a wide range of cartridges.

Diagram 4 Muting Switch Connection
Diagram 5 Tag Strip Connection
Diagram 6 M.7 Plug-in Pickup Shell
Diagram 7 Transit Screw Positions
Diagram 8 Pickup Lifting Mechanism
Diagram 9 Friction Link

Diagram 10 Switch-off Lever and Selector Mechanism
Diagram 1 1 Intermediate Wheel Height Adjustment
Diagram 12 60 Mk II and S.L.65 Pickup Arm Adjustments
Diagram 13 so Mk II and S.L.55 Stylus Force Adjustment
Diagram 14 50 Mk II and S.L.55 Pickup Arm Adjustments
Diagram 15 60 Mk II and S.L.65 Cueing Linkage
Diagram 16 6o Mk II and S.L.65 Bias Compensator
Diagram 17 S.L.65

Diagram 18 S.L.65 with Turntable Removed
Diagram 19 Underside View of S.L.65

The units are made in a number of different colour finishes
and with differing turntable mat trims. Synchro Lab motors
can be supplied to run on 110/130 volts A.C. only or for
110/130 volts and 220/250 volts A.C. The latter version is
fitted with a voltage changeover block attached to the motor.
(Induction motor voltages 100/130 volts A.C., or too/13o
volts and 200/250 volts A.C.)

The Synchro Lab and 4-pole induction motors are suitable
for 50 or 60 Hz according to the motor pulley fitted. The
z-pole motor does not have a removable pulley and a
different motor is required for 50 or 60 Hz supply.

These units play automatically when the records are of the
same speed and record groove type. They can be stopped
and started without rejecting the record being played, or
records can be rejected as desired. Switch off is automatic
after playing the last record. The cueing device permits the
pickup arm to be accurately positioned on a record by
manual means and also allows play to be interrupted when
used as a pause control.

Before using these record changers make sure that the power
supply is as labelled on the motor. If the unit is connected
to an amplifier whose wiring is not isolated from the power
supply, isolating components should be incorporated in the
pickup circuit, otherwise the pickup circuit can become live.

Always disconnect the power supply and protect the pickup,
when servicing a unit.

In some cases such as those associated with pickup and
power connections, components for these models may vary
(other than as illustrated) due to the wide variety of cus-
tomers specifications. Therefore, when referring to these
models, obtaining spares etc., always quote the code stamp-
ed on the inspection label, unless a full description can be
given. (See parts list.)

The information in this manual applies to all models covered
except where otherwise stated or illustrated.

Garrard units are made to play records complying to 8.8.
1928 : 1965 and I.E.C. Publication 98, also similar standards.

PAGE 3

Page 11

On Model S.L.55 the code number is 73455 plus its following 3-figurc stroke number.

PARTS SHOWN ABOVE UNIT PLATE
Spare Parts List Models 50 Mk II, S.L.SS, (I0 Mk II, S.L.65

When referring to these units it is essential to quote the model type and code number. The code number is ox erstampcd on the inspection label taped
to the underside of the unit plate.

On Model 50 Mk II the code number is 72560 plus its following 3-figurc stroke number.

On Model 60 Mk II the code number is 72550 plus its following 3-figure stroke number.
0n Model S.L.65 the code number is 73465 plus its following 3-figurc stroke number.
In addition when ordering spares, quote the part number and colour or voltage range. if applicable.

Ref. Canard
No. Part No.
I 70936
2 70938
3 72495
3 71056
4 72509
4 72x73
4A 58962
4C 40264
41- 41776
5 70870
58 72561
53 72538
6 44273
6A 71878
68 447 I6
6C 41037
7 59993
73 70I55
78 7058s
7C 59756
8A 725 I6
88 44892
l3 72844
13A 44279
I4 721 85
MA 73013
148 43860

t4C 72186

Description

Record Size Selector

Selector Extension

Overarm (50 Mk II, S.L.55)

Overarm (60 Mk II. S.L.65)

Pickup Arm. less Head and Weight (50 Mk II, S.L.55)
Pickup Arm. less Head and Weight (60 Mk II, S.L.65)

Collar

Screw

Screw

M7 Pickup Shell

Cover Plate for Shell (50 Mk II. S.L.55)
Cover Plate for Shell (60 Mk II. S.L.65)
Screw (50 Mk II, S.L.55)

Screw (6o Mk II, S.L.65)

Spring (60 Mk II S L. 65)

Nut (60 Mk II. S. L. 65)

Pivot Spindle (50 Mk II. S. L. 55)

Pivot Screw (50 Mk II. S. 1.55)

Pivot Screw (60 Mk II. S.L.65)

Pivot Screw (6o Mk II. S.L.65)

Plate (50 Mk II. S.L.55)

Spring (50 Mk II. S.L.55)

Anchor Pad (60 Mk II. S.L.65)

Screw (6o Mk II. S. L. 65)
Knob (6o Mk II. S. L. 65)
Slider (50 Mk II, S. L. 55)

Spring Clip (60 Mk II, S I 65)
Disc (60 Mk II. S. L65)

Ref.
No.

Garrard
Part No.

15
l5
l7
t8
t8
9
I9
20
21
2t
21A
22
2%
23A
24
24A
29H
31
3:».
318
3IC
32
33
33
33
34
34
34

44718
44893
40322
70954
59003
4471!
44928
44705
72548
72I73
72529
70918
712I7
40906
44210
40268
71449
70932
59330
$039!
71711
43834
71753
72551
71692
72977
72747
57422

Description

Spring (50 Mk II. S. L. 55)

Spring (60 Mk II. S. L. 65)

Screw (5o Mk II, S. L. 55)

Pivot Screw (50 Mk II. S. L. 55)

Pttot Screw (60 Mk II, S. L. 65)

Overload Spring (50 Mk II. S.L.55)

()terlo. Id Spring (60 Mk II. S.L.65)

Spring {50 Mk II, S. L. 55)

Pickup Bracket (50 Mk II. S L. 55)

Pickup Bracket (60 Mk II. S. I. .65)

Market Plate (60 Mk II. S.L.65)

Restrictor Blade (50 Mk II, S.L.55)

Locking Clip (50 Mk II. S.L.55)

Locking Washer (60 Mk II. S.L.65)

Screw (5o Mk II. S.L.55)

Grub Screw (60 Mk II. S.L.65)

Pickup Lead. with Connector

Automatic Record Spindle

Manual Record Spindle

Large Centre Hole Record Adaptor

L.R.S.2o

Spring Clip

Turntable with Mat and Trim Ring (50 Mk II, S. L. 55)
Turntable with Mat and Trim Ring (60 Mk II, S. L. 65)
Turntable. for Plain Mat (50 Mk II. S. L. 55)
Turntable Mat and Trim Ring (50 Mk II, S.L.55)
Turntable Mat and Trim Ring (60 Mk II. S.L.65)
Plain Turntable Mat (50 Mk II. S.L.55)
