Extracted text from Garrard 40B Owners Manual (Ocr-read)

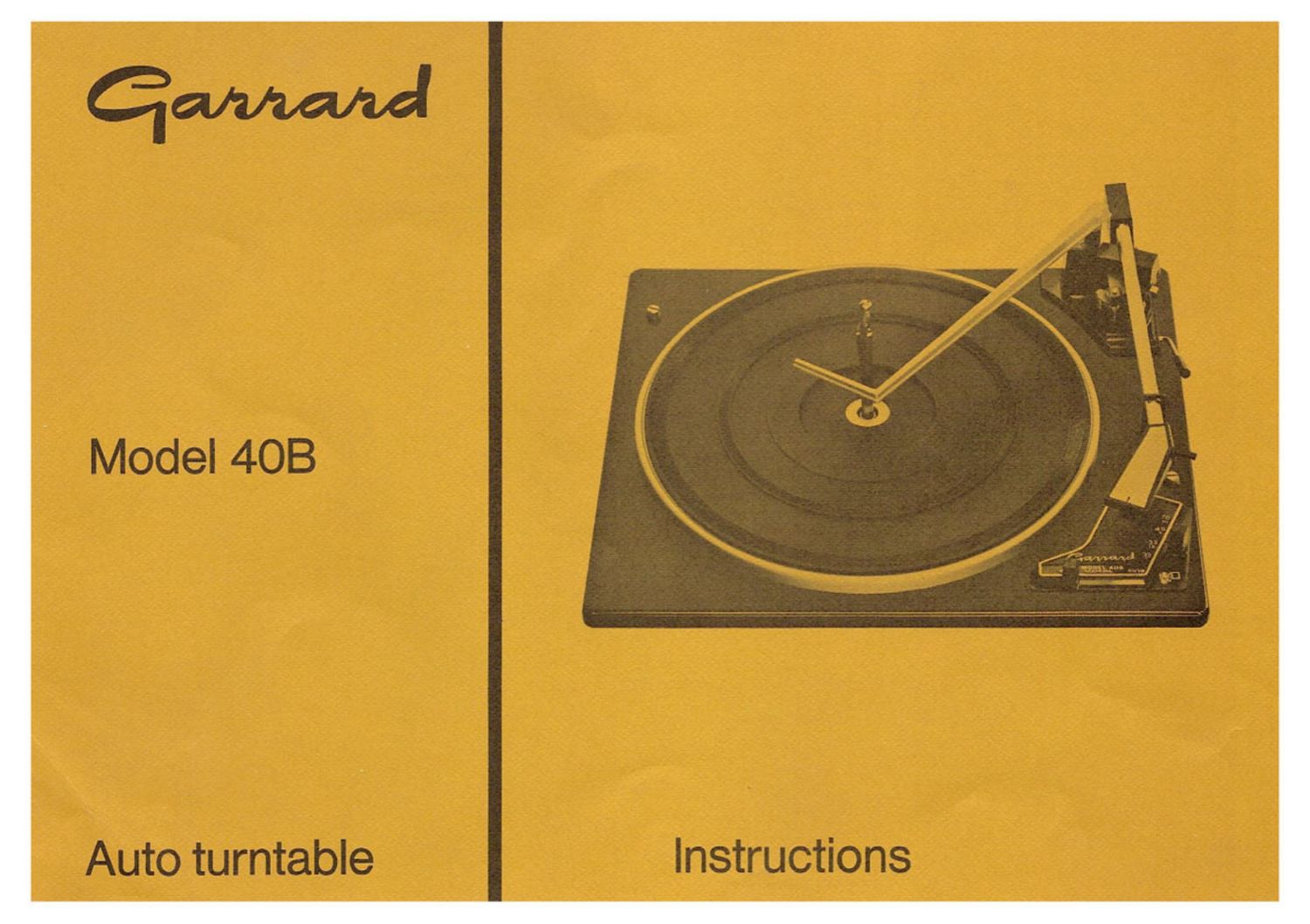

Page 1
fiat/inane!
Model 408
Auto turntable Instructions
Page 2
Model 403 features
* plays up to eight 12" 33% rpm, 7
45 rpm, 7 332; rpm, or 10 78 rpm
records of the same size, speed
and stylus setting, automatically at
one loading by pre-selection.
plays single records manually or
automatically.
switches off automatically at the
end of a single record, or the last
record of a stack with the pickup
arm returning to its rest.
repeats automatically a record as
often as required.
has cue and pause facility.
slide-in cartridge carrier. type 02.
Note:
When ordering a motor pulley. specify
for a type 85 motor. Should a motor be
required. specify type 85 and all details
stamped on the bottom end plate of
the motor.
Overarm (lift here)
Auto record spindle
Transit screw (2)
Turntable centre disc
concealing retaining clip
Turntable
Pickup arm
__Cueing lever
Pickup arm
safety catch
Pickup arm
+_flnger lift
Pickup cartridge
1 Speed/ record size
selector control
Operating control
