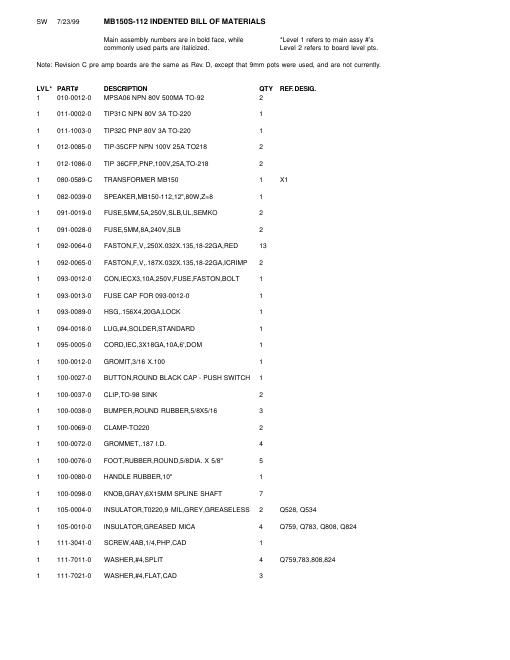

SW 7/23/99 MB1SOS-112 INDENTED BILL OF MATERIALS

Main assembly numbers are in bold face, while Level 1 refers to main assy #s
commonly used pans are italicized. Level 2 refers to board level p15.

Note: Revision C pre amp boards are the same as Rev. D, except that 9mm pots were used, and are n01 currently.

LVL PART# DESCRIPTION QTY REF. DESIG.
1 010-0012-0 MPSA06 NPN 80V 500MA TO-92 2

1 011-0002-0 T|P31C NPN 80V 3A TO-220 1

1 011-1003-0 T|P320 PNP 80V 3A TO-220 1

1 012-0085-0 TIP-35CFP NPN 100V 25A T0218 2

1 012-1086-0 TIP 360FP,PNP,100V,25A,TO-218 2

1 080-0589-C TRANSFORMER MB150 1 X1
1 082-0039-0 SPEAKER,MB150-112,12",80W,Z=8 1

1 091-0019-0 FUSESMM,5A,250V,SLB,UL,SEMKO 2

1 091-0028-0 FUSE,5MM,8A,240V,SLB 2

1 092-0064-0 FASTON,F,V,.250X.032X.135,18-22GA,RED 13

1 092-0065-0 FASTON,F,V,.187X.032X.135,18-22GA,|CR|MP 2

1 093-0012-0 CON,|ECX3,10A,250V,FUSE,FASTON,BOLT 1

1 093-0013-0 FUSE CAP FOR 093-0012-0 1
1 093-0089-0 HSG,.156X4,20GA,LOCK 1
1 094-0018-0 LUG,#4,SOLDER,STAN DARD 1
1 095-0005-0 CORD,|EC,3X186A,10A,6',DOM 1
1 100-0012-0 GROMIT,3/16 X.100 1

1 100-0027-0 BUTTON,ROUND BLACK CAP - PUSH SWITCH 1

1 100-0037-0 CLIP,TO-98 SINK 2
1 100-0038-0 BUMPERROUND RUBBER,5/8X5/16 3
1 100-0069-0 CLAMP-T0220 2
1 100-0072-0 GROMMET,.187 ID. 4
1 100-0076-0 FOOT,RUBBER,ROUND,5/8DIA. X 5/8" 5
1 100-0080-0 HANDLE RUBBER,10" 1
1 100-0098-0 KNOB,GRAY,6X15MM SPLINE SHAFT 7

1 105-0004-0 |NSULATOR,T0220,9 MIL,GREY,GREASELESS 2 0528, 0534

1 105-0010-0 |NSULATOR,GREASED MICA 4 0759, 0783, 0808, 0824
1 111-3041-0 SCREW,4AB,1/4,PHP,CAD 1
1 111-7011-0 WASHER,#4,SPLIT 4 Q759,783,808,824

1 111-7021-0 WASHER,#4,FLAT,CAD 3
