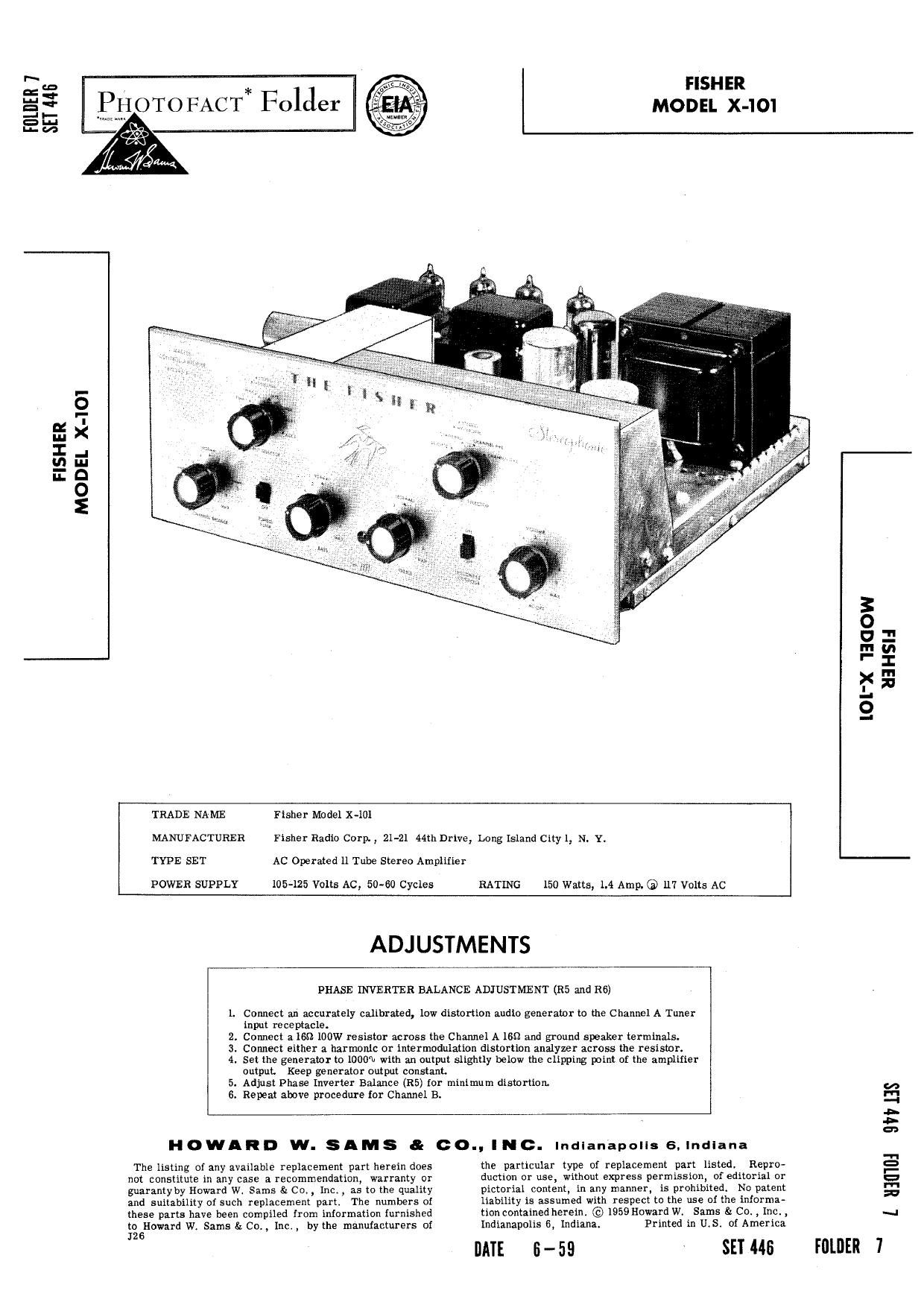

WEEK 7
SET 446

FISHER
MODEL X-IOI

FISHER

PHOTOFACT* Folder MODEL x401

TRADE NAB/E Fisher Model X-lol
MANUFACTURER Fisher Radio Corp. , Zl-Zl 44th Drive, Long Island City 1, N. Y.
TYPE SET AC Operated ll 'l'ube Stereo Amplifier

POWER SUPPLY 105-125 Volts AC, 50-60 Cycles RATING 150 Watts, 1.4 Amp. (3 117 Volts AC

ADJUSTMENTS

PHASE INVERTER BALANCE ADJUSTMENT (R5 and R6)

1. Connect an accurately calibrated, low distortion audio generator to the Channel A Tuner
input receptacle.

2. Connect a 16:) 100W resistor across the Channel A in and ground speaker terminals.

3. Connect either a harmonic or lntermodulation distortion analyzer across the resistor.

4. Set the generator to 1000: with an output slightly below the clipping point of the amplifier
output. Keep generator output constant.

5. Adjust Phase Inverter Balance (R5) [or minimum distortion,

6. Repeat above procedure for Channel B.

HOWARD w. SAMS & co., INC. Indianapolis 6,!ndiana

The listing of any available replacement part herein does the particular type of replacement part listed. Repro-
not constitute in any case a recommendation, warranty or duction or use, without express permission, of editorial or
guarantyby Howard W. Sam: 8: Co. , lnc. , as to the quality pictorial content, in any manner, is prohibited, No patent
and suitability of such replacement part. The numbers oi liability is assumed with respect to the use at the informa-
these parts have been compiled from information iurnished tion contained herein. © 1959 Howard W. Same 8: Co. , Inc. ,
to Howard W. Sams 8; Co. , Inc. , by the manufacturers of Indianapolis 6, Indiana. Printed in U.S. of America

6 DATE 5-59 SET 44:;

lOl'X HGOW
HIHSH

Llflfl'lfli VHS

FOLDER 1
